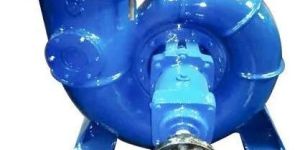

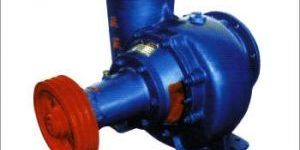

Mixed Flow Pump Dealers in Coimbatore

Conforming to DIN 24256, Horizontal single stage, End suction , discharge branch arranged tangentially upwards horizontal, Open and Closed Impeller construction, Clean ,Turbid or slightly contaminated liquids, Medium to Low heads and High discharge in water works, sewage works, Irrigation & drainage, pray Pond Injection Water applications in Sugar mills.

• Capacity: Up to 3500 M³/Hr
• Head: Up to 45 Mtrs (145 Feet)
• Temperature: Up to 100°C (212°F)
• Casing Pressure: Up to 16 Kg / cm²
• Pump Size: DN 200 mm to DN 450 mm
• Speed: Up to 1750rpm
• Direction of rotation: Clock wise from Drive End
• No of models: 10 Models.

Mf type pumps are used in sugar industry, sea water desalination plants, power stations, steel plants and absorption plants in environmental engineering & etc., handling of all types of clear â�� non aggressive liquids, turbid or slightly contaminated liquids, raw water, sewage water, sea water, low concentration cellulose suspensions & etc horizontal back pull out design pumps. Closed and open impeller construction with discharge branch arranged tangentially upwards horizontal. Bearings are oil lubricated and grease lubrication is optional salient features - low head and high discharge - steady flow - high efficiency - sturdy construction - low npsh - noise & maintenance free - environment friendly material of construction graded cast iron, 2% nici and bronze operating range capacity : up to 3500 mâ³hr head : up to 45 mtrs (145 feet) temperature : up to 100â°c (212â°f) casing pressure : up to 16 kg cmâ² pump size : dn 200 mm to dn 450 mm speed : up to 1750rpm direction of rotation : clock wise from drive end no of models : 10 models.

• Power Source: Electric
• Voltage: 220-440V
• Engine Horsepower: 1 HP
• Motor Phase: Single Phase
• Automation Grade: Semi-Automatic
• Frequency: 50 Hz
• Material: Cast Iron
• Motor Speed: 1000-1500 RPM

The horizontal mixed flow pumps are used to pump clean, turbid and slightly contaminated liquids. It can be used for sewage works, irrigation, drainage and for pumping sea water and in the sugar industry.

Mixed Flow Pump, Domestic Pumps, booster pumps, Jet Pumps, Monoblock Pumps

• Features: Horizontal Single Stage

Features Horizontal Single Stage End Suction & Discharge branch arranged tangentially upwards horizontal Open Impeller construction

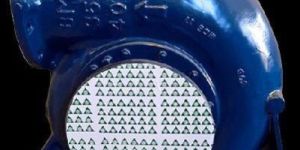

Mixed Flow Pumps-kpmf
