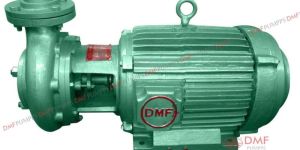

Monoblock Pumps Dealers in Pappanaickenpalayam, Coimbatore

• Features: Compact design, Longer working life, Quality tested

We are offering 0.5 HP MONOBLOCK 40 X 40 AGRICULTURE PURPOSE ONLY MLPH:13000LPH MHEAD:12 M DUTY POINT 4M4000LPH

• Head: 15m
• Material: Mild Steel
• Frequency: 50Hz
• Voltage: 220V
• Country of Origin: Made in India
• Power: 1HP
• Usage/Application: Industrial

• Range:: 0.5HP

Ours is a renowned name engaged in manufacturing and supplying Monobloc Pumps. In these pumps, rotating parts are mounted on the same shaft, hence reducing losses during transmission of energy from motor to shaft. Focus is made on carefully designing the impellers and volute chamber to provide highly efficient pumps to our customers. These pumps are suitable for 160/240v in 1 ph and are extensively used for irrigation and water circulation purposes. Our supplied monobloc pumps are reckoned for distinct features such as easy installation, longer functional life and vibration-free performance.

• Material: Mild Steel
• Country of Origin: Made in India
• Brand: WATERTECH
• Head: 15-20 m
• Usage/Application: WATER
• Phase: Single Phase

• Power Rating: 0.5 HP
• Head Range: 8-24m

Mahendra TC series Monobloc pumps are manufactured as per IS 9079, Unicasing typw pump eliminates air locking problems, Light weight and easy to install, Light weight, high quality, anti corrosion Noryl impeller, High operating efficency resulting in low power consumption, Good suction lift characteristics, Dynamically balanced rotating parts including rotator and impeller Designed for wide voltage fluctuations High Quality Aluminium Extruded Body for better heat dissipation and corrosion resistance Totally Enclosed Fan Cooled (TEFC) Motor, So no entry of dust and moisture, Shielded ball bearings, so no need of external, lubrication, Thermal Overload Protectio (TOP) to prevent motor burning.

• Driven Type: Electric

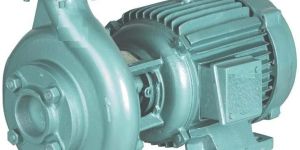

We offer Centrifugal Monoblock Submersible Pump. Centrifugal Monoblock Submersible Pump 5 HP THREE PHASE MAX HEAD 40 M

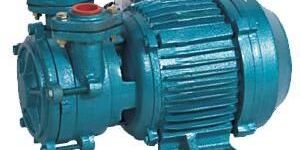

Self Priming Monoblock Pump, wet submersible pump, Pump Set

Applications Civil / Domestic / Agriculture / Industrial Pressure boosting for irrigation for washing plants. Irrigation cooling circuits & Gardening.

The highlights of our pumps are compactability, easy installation and less maintenance. Our special features include continuous operation, greater efficiencies, extremely quiet operation and high working pressure. self priming pumps are designed without footvalue. The internal clearances are kept to a minimum and for this reason these pumpsets are intended for use with clean water, free from solides, abrasives and fibrous material to get the best possible efficiency.

• Power: 0.75
• Material: Ci
• Model Number/Name: Sharp duro
• Motor Horse Power: 2880
• Motor Phase: Single Phase
• Product Type: Centrifugal monoblock

• Type: • Single Phase 240r/50HZ/2880rpm S1/ASR with Thermal Overload Protector/class ‘B’ insulation. • Three Phase 415v/50HZ/2880rpm/1440 rpm S1/Star & Polta/class A insulation.
• Degree of Protection: IP 44/IP54
• Max Flow Rate: 24 m3/hr(6.6 l/sec)Single Phase 240m3/hr(66l/sec)Three Phase
• Power Rating: 0.37-1.5 KW single Phase (0.5-2.0 HP), 0.75-7.5 KW-Three 7Phase (1.0-10 HP)
• Maximum operating Pressure: 3.5kg/cm2(35 mtrs total head)Single Phase 55kg/cm2(55 mtrs total head)Three Phase
• Sealing: Mechanical seal/oil seal with Asbestos Rope
• Maximum suction Lift: 7 mtrs
• Maximum Liquid Temp: 35°C
• Maximum Ambient Temp: 43°C
• Minimal Pumpsizes(inch): 1*1;11/4*1;11/2*11/2;2*1/2;2*2;21/2*2;3*21/2;4*3;4*4;5*5;6*6

We offer agriculture monoblock motors with good quality. High grade cast iron motor body and pump casing, gun metal gland packing with rope and lip seal. Hardened cast iron impellers, special design for low voltage. Dynamically balanced rotors/impellers easy convertibility of delivery and suction casings for different head and discharge.

Specifications motor rating : 3.0 hp – 30 hp (three phase) voltage : 415v, three phase frequency : 50 hz head range : 6-80m discharge range : 168-5000 lpm insulation : ‘a’ class speed : 2880 rpm , 1440 rpm.

Monoblock Pump, Three Phase Electric Motor, Jet Pump

mono block submersible pump, Submersible pumps, Open well Submersible Pump

Centrifugal Pumps, Monoblock centrifugal pump, Submersible pumps

Domestic Monoblock Pump

Mini Monoblock Pumps, Dewatering Pump Manufacturer, Domestic Pumps

Monoblock Pumps, Jet Pumps, Submersible pumps, Pumps, pumping equipment

Monoblock Pumps, Electric Motors, Pumps, Domestic Pumps

Single Phase Centrifugal Monoblock Pump, grinder pump

Monoblock Pumps, Submersible pumps, Self Priming Centripetal Pumps

mono block pump sets, Electric Motors

mono block pumps, Industrial Motors

Monoblock Pumps, Electric Motors, Jet Pumps, Marine Chilling Compressor

mono block pumps, submersible open well pumps, Submersible Pump Set

Single Phase Centrifugal Monoblock Pump, TEFC Motor, domestic water pump

Monoblock Pumps, aircondition motors, neem mixed cocopeat

Openwell Monoblock Pump, Electric Submersible Pump
