Paper Cup Making Machines Dealers in Coimbatore

100% Indian machine with high quality indian spares & components based on advanced plc (program logic control) technology spares availability anywhere in the world wide network of experienced service engineers very low downtime rugged frame structure weighing 2000kg's less rejection of paper cups sensor based cut off system to reduce wastage & increase longevity of machine mode of operations: 1) automatic mode 2) manual mode machine is customizable for either single or three phase power supply.

• Capacity: 45-55 pic/hour
• Automatic Grade: Automatic
• Brand/Make: GIP

• Type: Fully Automatic
• Warranty: 1 Year
• Material: Mild Steel
• Certification: CE Certified
• Voltage: 220V
• Driven Type: Electric
• Phase: Single Phase
• Pressure: High Pressure

• Brand Name: Future Pack
• Power Consumption: 5 KW
• Capacity: 110 Cups/min
• Country of Origin: Made in India
• Sheet Thickness Millimeter: 140 GSM To 250 GSM
• Automation Grade: Automatic
• Item Condition: New
• Materials Applicable: PE , PLA , Water based Coating and bio paper
• Deals In: New Only

• Power: 3-6kw,4HP (Single or 3 Phase)
• Phase: Three Phase
• Warranty: 1 Year

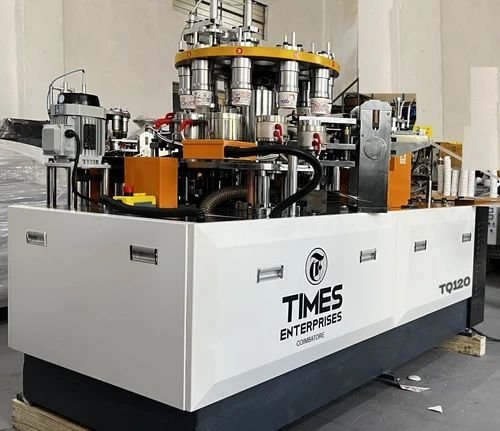

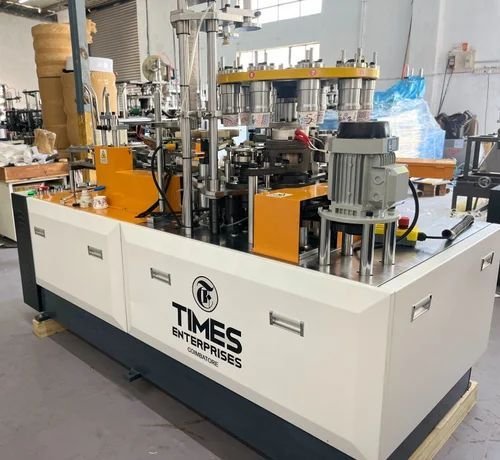

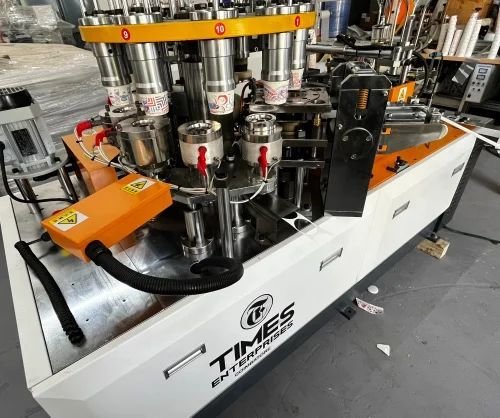

• Brand Name: TIMES
• PRODUCTION SPEED: 95 - 130 PCS / MIN
• AUTOMATIC OIL LUB SYSTEM: YES (WITH AUTO OIL FILTER)
• PAPER CUP SIZES: 60ml - 270ml

High speed paper cup making machine with maximum speed capacity of 130 pcs per min.Our range of all products is widely appreciated by our clients. This model is well known in the current market for its quality.We are engaged in offering a wide range of  quality Paper Glass Making Machine to our clients.

• blue: grey

We are offering paper cup making machine, jbz-a12 paper cup machine description : model jbz-a12 paper cup forming machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance. It makes one-side-pe-film-coated paper cups after running a whole procedure of automatic pre-printed fan-shape-paper feeding, cup-side-body sealing(heater), silicone-oil lubricating(for top curling, dimethyl silicone oil 201,food grade), roll bottom auto punching, bottom pre-heating and pre-folding, main heating, bottom knurling, top curling and cup discharging. It is an ideal equipment of making hot drinks (tea, coffee, milk) disposable paper cups and ice-cream paper cups etc. Jbz-a12 paper cup machine technical specification : paper cup size : 2.5 ~ 12oz, height up to 125 mm (mold exchangeable); raw material : one-side pe(polyethylene) film coatedlaminated paper; suitable paper weight : 135gsm ~ 320 gsm (recommend 170--280 gsm); speed : 40 ~ 50 cups minute; total power : 5 kw; power source : 380v 50hz 3-phase or other required; total weight : 1300 kg; package size (l x w x h) : 2700 x 1240 x 1700 mm; electric control box size : 750 x 570 x 1070 mm mark: avaible to make any special machines against clients order.

We offer Paper Cup Making Machine (Model No : JBZ – B) that is made using the latest technology by a team of proficient experts. The Paper Cup Making Machine that we offer has a host of procedures comprising paper-feeding, bottom-punching, cup-fan-wall sealing, oiling, rimming, rounding, rolling, heating and tripping. The Paper Cup Making Machine is highly efficient to manufacture cups of different sizes and shapes. Highlights : Mainly used to make one side PE coated paper cups from 3 oz to 12 oz The total electrical unit is in-built in machine and is very compact Characteristics : Fully automaticMicro-controlled transducerEasy operating by operator (one operator is enough)Step-less speed adjustmentAutomatic control adopts optically controlled non-contact switchPaper Cup-fan-wall body sealed by heaterAmelioration: Air compressors aren’t required for this type paper cup machinePaper Cup bottom sealed by heaterEasy changing molds produce different sizes paper cupsCheap operating cost and low investmentEasy maintenance with minimum cost

• Production per minute :: 40 – 50 cups
• Raw material:: single side PE coated paper
• GSM of paper:: 170 – 240 GSM
• Bottom diameter:: 52.2mm
• Voltage:: 420V/50Hz/3Phase
• Power:: 5 HP
• Dimensions:: 9 x 4 x 5 feet
• Cup volume:: 110ML to 250 ML

We are offering ultrasonic two-pe paper cup forming machine. item code: jbz-s12 jbz-s12 ultrasonic two-pe paper cup forming machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance. it makes both one-side and two-side pe film coated paper cups after running a whole procedure of automatic pre-printed-fan-shape-paper feeding, cup-side-body sealing (ultrasonic wave), silicone-oil lubricating (for top curling), bottom punching, bottom pre-heating and pre-folding, main heating, bottom knurling (cool device), top curling and cup discharging. it is an ideal equipment of making paper cups for all kinds of drinks (hot and cold) disposable paper cups: paper tea cup, coffee cup, cold-beverage cup,beer cup, ice-cream cup etc. technical specification : •paper cup size : 2.5--12oz, height up to 125 mm (mold exchangeable) •raw material : one-side or two-side pe (polyethylene) film coated/laminated paper •suitable paper weight : 135gsm--320 gsm (recommend 170--280 gsm) •rated productivity : 40---50 pcs / minute •total power : 7 kw •power source : 220v/380v 50hz or other required •total weight : 1500 kg •package size (l x w x h) : 2700 x 1240 x 1700 mm •electric control box size : 750 x 570 x 1070 mm •working air source: air pressure:0.4mpa, air out-put: 0.6m3/minute •making double pe coated paper cups, need to buy an air compressor.

• Automatic Grade: Automatic
• Brand/Make: Jbz a12

We are offering Jbz A12 Paper Cup Making Machine (automatic). with Experience in this Industry We have Installed Many Machines.

paper cup printing machine, Paper Cup Making Machines

fully automatic paper dona cups making machines

Paper Cup Punching Machine, Paper Machinery, Paper Cutter

We are offering paper cup making machines. Paper cup size : 2.5--12oz,(50ml to 330ml), height cup to 120 mm (mold exchangeable) raw material : one- side pe(polyethylene) coated paper suitable paper weight : 135gsm--320 gsm (recommend 170--280 gsm) rated productivity : 40---50 pcs minute total power : 5 kw power source : 220v380v 50hz or other required total weight : 1800 kg package size (l x w x h) : 2800 x 1320 x 1800 mm electric control box size : 730 x 600 x 1300 mm

Paper Cup Making Machines, Non Woven Rice Bags

Paper Cup Machinery, Hollow Block Making Machine, Paver Block Making Machine

paper cup machines
