PENGUIN ENGINEERS Koundampalayam, Coimbatore, Tamil Nadu

The machine is built with a steel framed structure. The drives and take-off are located at the top of the machine. The spindles can be accessed from either side through conveniently placed safety interlock doors. The deck assembly is engineered to ensure smooth sliding and exchange of shoes. Exceptional smooth running, minimum vibration and very low noise are salient features of the machine.The wire carriers are of proven design. They are engineered to perfection for trouble free performance. The carriers have bobbin capacity of 820 cc. Molded integral plastic carriers with shoes are available for yarn braiding applications on this machine.

Wire Braiding Machines are indigenously designed and Penguin is the only indigenous manufacturers of these heavy duty machines in India and one among the very few manufacturers in the world.These Braiding machines are characterized by high productivity, simplicity and excellence in performance. The hoses manufactured by these machines are far superior to conventional hoses in strength, appearance and durability.

Type : Wire Braiding Machine

Weight : 4000-5000kg

Color : Green

Voltage : 440V

Condition : New

Automatic Grade : Automatic

Power : 9-12kw

Warranty : 1year

Driven : Electric

Country of Origin : India

Brand Name : Penguin

Application : Braiding

After-Sales Service Provided : Yes

Factory : Coimbatore

Wrap Master 1000C wraps and unwraps mandrel at speeds upto 1000 rpm. Hoses manufactured on flexible mandrels and cables that are flexible can be wrapped using suitable supports.The machine occupies minimum floor space with steel fabricated body. The rotating head is maintenance free. Production speeds upto 60mmin ensure high productivity with better utilization of the machine. Reliable and efficient positive non-slip conveyor drives are used.

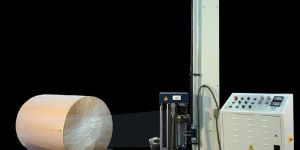

Reel Wrapper is a machine specially designed for packing paper, film, foil and similar materials manufactured in reels. Axial Wrapping: The machine is designed to apply layers of film across the face diametrically and wrap them along the longitudinal axis. The longitudinally applied wraps are moved along the periphery with uniform overlap forming a cocoon type packing. This packing is completely Moisture & Dust proof and protects the product.

Country of Origin : India

This machine is used in many countries for wrapping pallets with pre-stretched cling film. It ensures stable and moisture-proof wrapping of pallets at minimum cost. Optimum wrapping of pallets using wide range of film material is made possible by the state-of-the-art "Powered Pre-Stretch Unit " which can stretch the film up to 300% (One meter long becomes 4 meters long). Powered Pre-Stretch unit has a separate motor to stretch the film.This simple and sturdy machine can operate continuously under severe industrial environment. The machine can be easily operated by unskilled workers in the packing line as the cycle of operation is completely automated.

Country of Origin : India

Type : Stretch Wrapping

Brand Name : PENGUIN

Certification : CE Certified

Voltage : 220V

Condition : New

Operating Type : Semi Automatic

Power : 1-3 Kw

Color : Blue

Phase : Single Phase

Machine Structure : Vertical

Corrosion Resistance : Yes

Material : Mild Steel

Driven Type : Electric

Warranty : 1 Year

Finishing : Powder Coated

Specialities : Rust Proof, Long Life, High Performance, Easy To Operate

Usage : Wrapping Cartoon Box

Weight : 700-800 Kg

Turn Table Diameter : 1500-3000

Turn Table Speed : 10-15

Hose Knitting is a recent concept in automobile radiator hose technology. Penguin Hose Knitting Machines are indigenously designed and Penguin are the only indigenous manufacturers of these machines in India and one among the very few manufacturers in the world.This machine is characterised by high productivity, simplicity and excellent performance.

Type : Hose Knitting Machine

Certification : CE Certified

Weight : 1000-2000kg

Color : Green

Condition : New

Automatic Grade : Automatic

Power : 3-6kw, 1.5 KW; 3 Phase

Warranty : 1year

Driven : Electric

Voltage : 380V

Country of Origin : India

Brand Name : Penguin

Application : Radiator Hose

Voltage : 380

Production Capacity : 5-20 m/min

After-Sales Service Provided : Yes

Factory : Coimbatore

Pipe Material : Rubber

Stretch wrapping is the most economical way of Roll packing. The Penguin Fabric Roll Stretch Wrapping Machine is the prestigious “Pacmachine” award winner. It is used to pack rolls of many items like denim fabric, carpets, curtain cloth, paper, film etc.Penguin Stretch Wrapping Machine offers the most profitable way to pack your valuable goods by saving in cost of film, labour and power. Penguin machines are from the leaders in stretch wrapping and are in use at various industries all over India and Abroad.

Country of Origin : India

caterpillar is sturdy to pull evenly the hydraulic hose that is being extruded from the extrusion process onto a drum or cooling tower. Two extruders when connected in parallel in the extrusion line can be synchronized with the extrusion process.Caterpillar with long contact length and multiple spreader rollers to pull the hose by applying uniform pressure,Caterpillar with long contact length and multiple spreader rollers to pull the hose by applying uniform pressure,Adjustable lower belt height to accommodate different hose diameter.

Country of Origin : India

Type : Caterpillar Generators

Condition : New

Automatic Grade : Automatic

Penguin braiding machines are built with design and material perfected over years of experience in building a range of braiding machines. The modular design makes it possible to tailor the machine to suit the requirement of the customer. Machines are available as vertical horizontal configuration, suitable for wire yarn braiding, single or multiple deck with options of capstan caterpillar take-off. Wire Braiding Machines are indigenously designed and Penguin is the only indigenous manufacturers of these heavy duty machines in India and one among the very few manufacturers in the world.

The Penguin Box Stretch Wrapping Machine (Model: Compact) is a simple and convenient device to wrap carton boxes and objects of similar geometry using stretch film delivered from “The-State-of-Art” Powered Pre-Stretch Unit.Stretch Wrapped Protection can be given to small & medium sized objects packed in carton boxes, cans, tins, drums, etc.This is highly suitable for goods with light weight that can be manually loaded, turned over, wrapped and unloaded from the machine.

Color : Blue

Voltage : 220V

Condition : New

Function : Packing

Automatic Grade : Semi Automatic

Power : 1-3kw

Packaging Type : Wooden box

Driven Type : Electric

Weight : 100-1000kg

Country of Origin : India

Application : Packing

Industrial Use : Yes
