Sinetec Technologies Saibaba Colony, Coimbatore, Tamil Nadu

The U272xA is a 3-channel USB SMU that can operate in a 4-quadrant operation. It can function as a standalone module or used as a modular device, allowing expansion and compact solution when used with the other modules in the USB Modular Instruments and DAQ family.   For quick setup, the U272XA comes bundled with the Keysight Measurement Manager (AMM) software.   Capturing and reviewing of configuration commands can be easily logged using the Command Logger bundled in the AMM software. The Code Converter helps ease programming for users by converting the Command logger files to snippets of VEE, VB, C++, and C# codes.

The Keysight U2741A USB Modular Digital Multimeter provides a broad range of measurement functions, including temperature and frequency. The U2741A is a 5.5-digit resolution digital multimeter that is able to capture up to 100 readings/sec. It uses the common non-proprietary standard high-speed USB 2.0 interface that provides ease of connectivity ─ allowing users to set up and configure their tests swiftly with its plug and play feature.   Through an individual window on the PC screen, the bundled Keysight Measurement Manager (AMM) software provides a familiar front-panel interface for quick setup of the U2741A to perform data logging.   The U2741A can function as a standalone module or as a modular device in the U2781A USB Modular Product Chassis, providing expansion capabilities and compact solution when used with the other modules in the USB Modular Instruments and DAQ family.

Control, acquire, measure, evolve: The USB data acquisition (DAQ) family gives you the choice and flexibility to create solutions that evolve and expand according to your changing measurement needs. You can quickly and easily acquire, measure and analyze data from electrical, mechanical, physical and acoustical phenomena.   The DAQ series includes multifunction measurement modules, simultaneous-sampling measurement modules, and digital input/output (DIO) modules. These versatile modules are able to work as standalone and modular devices (slottable into the U2781A product chassis). The thermocouple signal conditioner option is available for temperature measurements with the multifunction measurement modules.

The U2761A is a 20MHz function generator that offers 10 standard waveforms plus pulse and arbitrary waveforms generation capabilities. It uses the common non-proprietary standard high-speed USB 2.0 interface that simplifies connectivity ─ allowing users to set up and configure their test swiftly with the plug and play feature.   Through individual windows on the PC screen, the bundled Keysight Measurement Manager (AMM) software provides a familiar front-panel interface for quick setup of the U2761A. Arbitrary waveforms can be easily created by using the arbitrary waveform editor included in the AMM. View the Keysight Measurement Manager - Function Generator screenshot   Kick start your measurements with a USB interface to your PC and the easy-to-use, feature-packed software bundled with the instrument.   Features: Portable compact module Simple USB Setup Easy-to-use software Keysight U2700A series USB Modular Instruments has won Design News’ Golden Mousetrap Award in the 2009 Best Products Category. The Design News’ Awards Program has recognized engineering innovation and creativity in product design for more than

The Keysight 53200 Series of 350 MHz RF and universal frequency counter/timers serve all of your frequency and time interval measurement needs. Three available models offer resolution capabilities up to 12 digits/sec single-shot frequency resolution on a one second gate. Single-shot time interval measurements can be resolved down to 20 psec. All models offer new built-in analysis and graphing capabilities to maximize the insight and information you receive. Use the connectivity of your choice: LXI-C/Ethernet, USB, GPIB. Additionally, an optional battery is available to increase portability and maintain timebase accuracy.

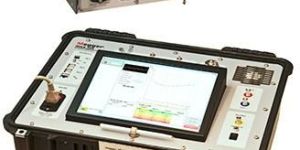

Transformers are an integral part of the power grid. Their reliability directly impacts the reliability of the grid. The failure of this critical asset can handicap the grid and increase its volatility. As replacing a high voltage transformer requires planning for many reasons, including long manufacturing lead times that can exceed a full year, it is widely accepted that asset management, particularly of transformers, is a beneficial contribution to the operation of the grid. Transformer testing: The proper life management of HV transformers requires information about the transformer’s condition. There are several components of a transformer that must be tested and assessed in order to determine its overall health and several tests that deliver this information. These include: transformer insulation resistance, winding resistance, sweep frequency response analysis, and OLTC diagnosis. For details, visit our transformer application page. The testing to be performed may vary at different stages of the life of a transformer but, at a minimum, should include routine screening tests. For recommendations, visit our Commissioning/routine/diagnostic tests page.

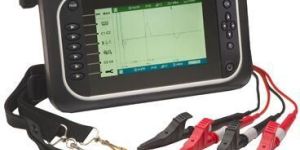

Time domain reflectometers (TDR) are used in cable fault detection and pre-location. This form of cable testing is executed by transmitting an incident signal on to the cable and listening for the signal reflections. If the cable is of uniform impedance and is correctly terminated then there will be no reflections and the incident signal will be absorbed at the end of the cable by the termination. If there is a cable fault then some of the incident signal will be reflected back to the TDR .

Brand Name : Tektronix

Address evolving test needs—from unbounded in R&D to just enough in manufacturing—with diverse hardware platforms. Accomplish deeper troubleshooting or one-button measurements with the broadest set of application-specific software. Get results you can trust based on proven measurement science and a commitment to measurement integrity, whether you are optimizing your test for performance or throughput. Achieve greater longevity of your test assets with upgradeable features and performance.

The Keysight N3301A is a half-rack width mainframe with 2-slots that accepts combinations of N330x user-installable load modules (150 W to 600 W) for easy system configuration and future reconfiguration. The N3301A holds up to two N3302A, N3303A, N3304A, and N3307A load modules, or one N3305A and N3306A load modules, allowing up to 600 watts of total maximum power.   Testing multiple output dc power supplies and dc-dc converters can be very time consuming if each output must be tested sequentially. If measurements are being made through a MUX using one DMM, this is what will happen. Using the built-in measurement capabilities of the N3300A electronic loads, all outputs can be measured simultaneously. Alternatively, multiple single output power sources can be tested simultaneously.

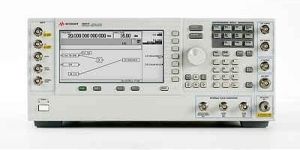

Meet your test requirements with the widest selection of signal generators with the best performance in every class, whether you need a traceable, metrology-grade solution or cost-effective basic signal generation Stimulate your device using realistic signal simulations with the highest signal integrity Lower your cost of ownership with 3-year calibration cycles and the most comprehensive solutions for self-maintenance

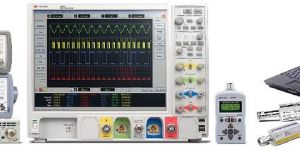

Sinetec power meters operate with sensors of various types (CW, average and peak and average), covering numerous frequency and power ranges to accurately measure the power of RF and microwave signals. Applications include testing the output power of communication base-station transmitters, cellular telephones, radar system equipment, and much more.

In today’s competitive electronic development industry, you don’t have a choice when it comes to the safety standards of your products. Government initiatives require all new electric products on the consumer and professional service markets to meet strict standards. And, you must insure against potential liabilities and losses. But you do have a choice when it comes to the distinction of your testing instruments.

Brand Name : Additel

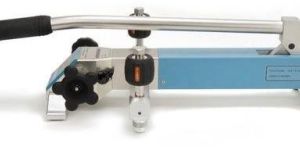

Pressure : 95% vacuum to 3,000 psi (200 bar) positive pressure (Generated Pressure Range)

Weight : 14.3 lb (6.5kg)

Warranty : 1 year

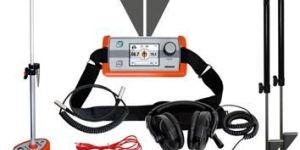

Pre-location involves the identification of the range in which a fault resides. If this is required as a separate step – as is the case in high resistance faults – the arc reflection method (ARM) is appropriate when used alongside a surge wave generator, colloquially referred to as a ‘thumper’.  Due to cable run deviations, even the more accurate pre-locators do not often mesh precisely with the real world site. Pinpointing identifies the fault accurately onsite and takes the form of either acoustic breakdown detection or, in the case of short circuits and other non-audible breakdowns, an audio frequency system or a pulse DC voltage with a step voltage receiver.

Weight : 200g

Brand Name : Kyoritsu

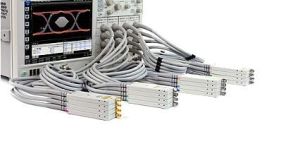

Get your products to market faster with award-winning oscilloscopes that offer the fastest update rates, the deepest memory, the industry’s only capacitive touch screen, and the most oscilloscope software options. Produce the highest-performing products with measurements you can trust thanks to oscilloscopes with industry-leading signal integrity and the largest selection of oscilloscope probes. Achieve the lowest cost of ownership with multiple instruments in one mainframe and easy upgrades.

Attain unrivaled excellence with PNA-X/PNA/PNA-L (up to 1.1 THz). Drive down the cost of test with ENA (up to 20 GHz). Carry precision with FieldFox handheld analyzers (up to 50 GHz). Drive down the size of test by up to 66% with PXI VNAs (up to 26.5 GHz, 32-ports).

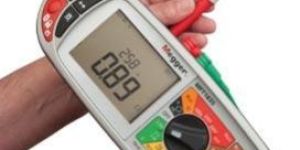

Multifunction installation testers are capable of performing all the tests required by the 17th Edition Wiring Regulations. The range includes the MFT single instument, and the MTK series of individual insulation, loop and RCD testers supplied as a kit in a robust carry case.

The Keysight 53140 Series is a full-featured CW microwave counter, a true power meter, and a dc DVM all in one small convenient package. It is the ideal tool for installation and maintenance of point-to-point microwave links as three of the most commonly made field measurements are combined into one instrument. In ATE systems, the three-in-one 53140 Series will also save valuable rack space.

We design and produce low voltage testing solutions for the real world. We pride ourselves on developing robust, reliable, highly accurate test solutions that afford lower lifetime cost of ownership. Our designs last longer under tough, everyday use. Our history of expertise has enabled us to create solutions that are more intuitive and reliable, maximising uptime and making you more productive. Megger RCD testers offer automatic testing of all 5 RCD tests required of the Wiring Regulations, giving a tough solution to RCD testing. When you’re dealing with the safety of people, be sure that your testing equipment is the one most often chosen to ensure compliance and performance. Megger instruments are the sensible choice for testing to safety and OSHA standards.

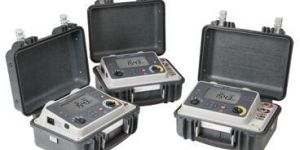

From Megger, these highly accurate, easy to operate instruments measure resistance with resolution as fine as 0.1 micro-ohm. Digital micro-ohmeters and DLROs measure contact resistance of switch and circuit breakers, aircraft frame bonds, and rail and pipeline bonds just to name a few of the applications. Megger has models available for testing using test currents from 0.5 mA to 200 amps covering a multitude of applications that require precise low-resistance measurements.

Use these products to determine the prospective earth fault current, which is the maximum current able to flow in a phase-earth fault in an installation, and also to indicate the prospective short circuit current which is the maximum current able to flow in the event of a phase-neutral fault. RCD testers offer automatic testing of all 5 RCD tests required of the Wiring Regulations, giving a tough solution to RCD testing.

U41XX Series modular logic analyzers (in AXIe-based chassis) provide the highest performance available and best long-term value, with state acquisition rate up to 4 Gb/s, 136 channels per module, and memory depth up to 200M. 16860 Series portable logic analyzers deliver the fastest timing capture with deep memory for fast digital system debug. Take advantage of 2.5 GHz timing capture with up to 128 M sample memory, up to 1.4 GHz trigger sequencer for state and timing capture, and both single-ended and differential probing options. 16900 Series modular logic analyzers gives you the flexibility to configure a system the way you want. Purchase what you need now then upgrade as your needs evolve. 16800 Series portable logic analyzers offer you an exclusive combination of high-performance logic analysis and pattern generation in a fixed logic analyzer configuration at an affordable price. State speed and memory depth are upgradeable at time of purchase or later as your needs evolve.
