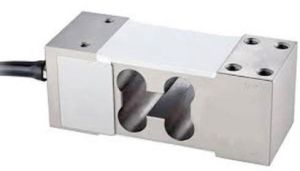

Single Point Load Cell Dealers in Coimbatore

• Material: Stainless Steel
• Application: Large Platform Scale Steel Weighers
• Capacity: 250 kg

• Application: Industrial Weighing Systems,Platform Scales,Electronic Counting Scales
• Material: Aluminum
• Application: Platform Scale
• Features: Economical and low profile cell,Supports Platform size upto 500mm X 500mm,Aluminum-alloy; Colourless anodized
• Model: CZL-642
• Capacity: 200 -300 Kg
• Features: Hermetically Sealed
• Output Sensitivity(FS): 2.0 +/- 0.1 mV/V
• Creep Error (30 minutes): +/-0.025% FS
• Temperature Effect on Zero: +/-0.0015% FS/DegC
• Temperature Effect on Output: +/-0.002% FS
• Zero balance: +/- 1% FS
• Maximum Safe Overload: 120% FS
• Recommended Excitation Voltage: 9 to 12V DC
• Input Resistance: 405 +/- 10 Ohms
• Output Resistance: 350 +/- 3 Ohms
• Insulation resistance at 50V DC: >= 1000 M Ohm
• Compensated Temperature Range: -10 to +40 Deg C
• Operating Temperatue Range: -20 to +70 Deg C

Single Point Table Top Load Cell, Weighbridge SMS Softwares
