SS Automation & Packaging Machines Ganapathi, Coimbatore, Tamil Nadu

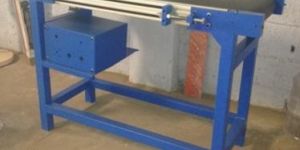

Inpak precision engineered range of Z’ loading Conveyor that are incorporated with the features of heavy loads accumulation and drainage or air flow. Constructed from best quality components, these belt conveyors feature sturdy construction, optimum performance and long working life. Further, we also customize these belt conveyors as per the specifications laid down by our clients.

Machine Weight : 200 kg (Approx.)

Capacity : Application Oriented

Power Consumption : 3ph/415v/50hz (or) 1ph/230v/50hz (Max -6.5kw)

Driven Type : LVP-200A-10W

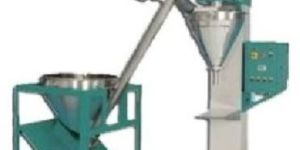

Inpak provide machinery specifically for dosing and packing powdery products into sealed bags. This item includes the basic range VFFS Bagging Machine with an Auger Filler and Auger Conveyor with hopper.By combining these machines, this item is effectively a near complete packing line.Product is placed in the hopper at the foot of the auger conveyor, which is then driven up to the auger on top of the bagging machine which is then fed into the bagging machine which creates and seals the product into a laminate bag. The Basic Range Vertical Form Fill Seal bagging machine is a mid-range machine designed for filling and sealing laminate film bags for a variety of product types.This machine comes with a printer and single forming set (made to size requirement) as standard and is the ideal machine for packing both food and non-food items due to its robust stainless steel construction.Complete with a 5.7" touch screen control panel for ease of use and a large range of optional extras, this vertical form fill seal packaging machine is an ideal starting point for most standard sized applications.Jaws for sealing polythene film bags can be purchased separately for this machine.  The Inpak vertical form fill and seal machine series Flexi Bag 300 and 400 can produce pilow, gusseted, standup and stable pouches. The jaw movement is achieved by a digitally controlled pneumatic or AC Servo Motor.The Flexibag  machines are ideal when multiple number of SKU’s are to be packed on a single machine - at speeds up to 90 filled-bags/min. Our  modular design platform allows for solutions at different price points while ensuring upgradability whenever your production requirements demand it. Features: Pneumatically or Servo motor operated cross seal jaws. Pulling belts driven by AC servo motor and universal joints. Closed E-structure Frame Construction. One piece film former. Industrial PC, color touch screen. Capacity to program Data for 100 items. Machine functions integrated in the screen. Automatic detection of faults in the sealing temperatures and air pressure of the machine, guaranteeing a good seal each time. Horizontal seal obstruction detection. Key controlled Access to different operator level. Automatic detection for the end of film roll. Motorized centering of film roll holders. Easy interface with peripheral equipment. Designed and manufactured in accordance with Safety regulations.

Granule packing machine – vffs for granule The Inpakvffs machine is a workhorse, capable of packing at up to 90 bags per minute, consistently, accurately and reliably. There is a range of optional extras available for the bagging machine to make it more suitable to your specification. These exclude gas flushing, euro slot hole punch, printers, cooling, laminate or polythene sealing jaws, vacuum packing and much more.   We have specifically designed the software on the IP-VFFS-FLEXI machine to be user friendly, ergonomic and simple to use. With large buttons and a simple "Start", "Stop" interface the machine can be operated easily and comfortably by even the most novice of users.Additional functions have also been added such as a bag counter that will automatically stop the machine after a target number of bags have been filled. This and a useful testing environment make the IP-VFFS-FLEXI bagging machine a must have for any start up, small scale or short term packing operation.   Features: Highs speeds and excellent fill accuracies Highly modular - Can be easily connected with required dozing equipment (volumetric or weighmetric filler) and various weighers Packs Laminate & PE on the same machine by simple change of sealing tools Unique two line sealing for PE Industrial PC, color touch screen. Change over to a new pack size without the use of tools Production of a wide range of pack style & sizes Minimized seal contamination by optimized film yields Solutions at different price points

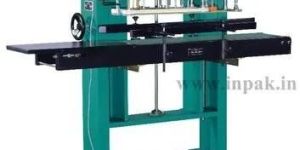

With rich industrial experience we are involved in manufacturing & supplying Continuous Band Sealers. These are manufactured using best quality material and sophisticated technology. These products of our company are highly reliable and are available at affordable prices.         Features: Powder coat paint finish Heavy duty band sealing technology Variable speed, PID temperature controls Easy lift front cover & mobile base Gas strut adjustable pedestal Benefits: Clean and durable Optimum seal quality and performance Ease of matching conveyor speeds and flexibility Accurate and consistent sealing temperature Quick access to all component & Simple set up and adjustment SUPERSEALER INPAK IPC-VT-1000 Options: Crank stands Bag support conveyors Bag coders and printers Bag top trimmers and trim removers Scales & auger fillers Specifications: Model: IPC-Vertical/Horizontal (1000-H) SS304 Operating panel: Via Push buttons or rocker switches Material feeding system: Manual or optional automatic motor with encoder Motor drive: Induction motor with encoder (bonfiglioli geared motors) Conveyor belt: PVC10-G with flush grid Throughput (sealing per minute): 8 to 12 mts/min Conveyor Loading range: Min- 100gms/Max -35kg Teflon Belt protection: Optional PLC programmed temperature cut-off system made below 40 degree (ADJUSTABLE 30-80’C) Heaters: Stainless steel IP-65-high density cartridge heater of 750w Temperature range: PID-digital (proportional integral derivative) control is one of the earlier control strategies Cooling System: Forced air cooling Sealing width: LD, PP, HM, any type of laminated pouches, aluminum foil paper Power supply (Load): 3ph/415v/50hz (or) 1ph/230v/50hz (Max-1.1kw) Belt width in feed/out feed conveyor: optional, various sizes on request Standard sorting/rejecting device/printing/nitrogen flushing: optional Panel Board: Optional-PLC & text panel integrated M.O.C: M.S/CI constructions duly powder coated/painted (for gmp model models mode from ms covered with ss304 sheet) Mobility: provided with castor wheel Dimension: (L*W*H): Approx-2200*1150*1600mm Net weight: 380Kg Options & Accessories: Variety of optional volume measuring devices to suit your application needs Optional hand-held or omni-directional automatic bar code scanners Access by means of GARVENS React (Remote Access Tool) Modular structure allows flexible mechanical system design Application specific software to suit your specification Customer-specific interlock signals and operational controls allowing easy integration via PLC with multi-functional operations for speed and directions & inventory and batching control terminals & high samples rate up to 70 samples per second

The Inpak IPFV-850 fruits & vegetables packing machine has been specifically designed for the wrapping of a wide range of many different products types and focuses on vegetable markets where the main requirements are simplicity, reliability, and easy operation of the machine.The combination of mechanical cam operation of the horizontal sealer and an AC motor for the draw down pulleys provides the machine with a great versatility to work in many different environments. The robustness of all the mechanical and electrical parts, a compact design and the ease of operation together with low maintenance requirements makes the ideal competitively priced machine for intermediate speed applications The machine is operated via man machine interface two line screen with integral PLC. All machine parameters are adjusted and saved within this interface resulting in a very flexible and quick change over machine   Features: Low carbon footprint due lightweight Reduction in packaging material – no secondary outer box required Improved shelf life minimizing any product waste Eliminates product damage as pouches are unbreakable Consumer convenience – easy to carry, easy to store and ready to use Increased sales due to premium presentation of product Cantilever construction which facilitates easy access for cleaning. Rotary cross sealing jaws. 3 Pairs of rollers for longitudinal film pulling and sealing. Self centering reel holder with a brake system Machine parameter settings (bag length, pusher position) via the mmi control. Screen setting of machine parameters, visible operational status and error messages. “No Product – No bag” function. The bag length is regulated in line with the product length via a photoelectric sensor and a timer. Belt type infeed conveyor (OPTIONAL). Packing material: Heat-sealable laminated film, such as: OPP,PE,PVC,PT/PE,OPP/CPP ,other special sealable packing film.     NOTE * Depends on Material, Filling Range.  ** We can supply as per customer requirements.  *** With help of change parts.

Voltage : 230 V

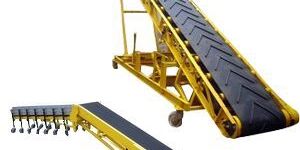

Inpak Mobile Vehicle Loaders, are ideal, if, you have no loading bayor raised dock. Truck Loading Conveyors, are highly versatile. These conveyors require very little space and can be easily moved to load or unload vehicles in different locations. Catering for all types of vehicle you can choose from our compact model suitable for vans, or our telescopic loader for lorries and large trailers up to 12 meters. We provide many models and options to choose with height adjustment.   Features: Low cost, simple mechanical structure, easy maintenance and operation, diversified, suitable under all kinds of environment. Easily portable Suitable for various vehicles, from small vans to large trailers Equipped with Hydraulic cylinder and power pack for variable height adjustments up to 3 meters (10 feet) for Belt Conveyors and up to 6 meters (20 – 25 feet) for Stackers. Mounted on Solid molded tyres / castor wheels / toe bar for easy and fast in-house mobility. Save Time, Energy & Money Efficient & Productive System Portable & Movable System Quick Delivery Commitment Increase Work Efficiency Decrease Labour Intensity Cut Down Cost Fill up a 40 Feet Container in only one hour with 3 men   Benefits: Flexible for use at multiple locations Reduces vehicle turnaround time Allows for higher volume throughout

Inpak irregular can seamers have become the can seaming machines of choice for fish, meat & vegetable,ghee,oil canneries worldwide.Can Seamer for Irregular shaped cans like square, rectangular, oval, etc The Can with the Lid (End) to be seamed is placed on the lifter plate and the pedal is fully pressed and released. The Can is lifted to the Seaming Chuck and the seaming operation begins. After completion, the lifter plate with the seamed Can are automatically brought down to the rest position. The machine can be fitted with a Control Panel with Push Buttons and a Pneumatic Lifting system doing away with the mechanical pedal.   Also Used for seaming Capacitors and other similar applications Semi-Automatic, foot-pedal operation Economically and functionally ideal Canner or Can manufacturer seamer. Can remains stationary during seaming Quick changeover of sizes 4 roller Can seaming ensures consistent and proper seaming Easy adjustment of Seam parameters Ability to accept a wide range of Can Diameters and Heights Seaming Heads and Arms Jig Bored for precision   Machine features: It is specifically used for sealing various irregular cans, diagonal:50-520mm It has a compact structure and adopts compression spring reset to reduce noise and make the lifetime longer. The adjustment and die change are convenient The wheels are durable with double-sided slotted roller. The sealing mold adopts high alloy steel and is durable.

Machine Weight : 1400 kg (Approx.)

The wire-belt conveyor technology is applicable in almost every industrial area. Especially due to its high flexibility regarding the execution that can be adopted to the application field, it is an irreplaceable factor in production.The different belt types have been developed for a large variety of applications. Its structure is interchangeable. Its advantages are the high durability, rapid interchangeability, they are easy to clean and they bear extremely high temperatures of up to 1.200 °C and are respectively reliable.   Wire-belt conveyors can be manufactured in straight (G), angled (W) or also in Z-type (Z) shape.The final execution as well as technical details are adopted to the customer's requirements as well as to the optimal application target.

The Inpak steam shrink tunnel includes a cantilevered, height adjustable frame made of high quality stainless steel for ultimate durability and operational flexibility. Inpak new steam tunnel offers all the great features that have positioned the IP-SWT-STEAM as a world leading shrink solution for packagers that value simplicity, durability, flexibility and reliability.Built with three separate zones that can be set independently to different steam rates, heights and angles, the steam tunnel creates the highest quality shrink finish.   Inpak can provide a complete steam system that includes a steam generator with automatic blow off system and tank that meets the tunnel steam pressure and flow rate requirements.   Applications: New Cantilevered Design - Standard height adjustable, cantilevered frame for long lasting operation and added flexibility Maintenance Friendly - Side panels on both sides give easy accessibility to inside of tunnel Modular - Available in 3- and 6-zone configurations Ease of Use - Simplified steam manifold and only one knob to adjust for each of the four axis Flexibility - Four axis adjustments allows for high quality shrinks on a wide variety of container shapes and sizes Intuitive Design - Graduated indicators simplifies setups and adjustments Easy Changeover - Only Allen wrenches required Safe - Double shell design keeps outer temperatures of machine cooler Durable - Stainless steel construction Moisture collection: Integrated drip tray and steam collection Options include container count system, in and out of the tunnel, as well as a motorized tunnel lift facility

Condition : New

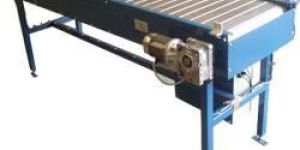

Inpak SS Slat chain conveyors are similar to Plate Link conveyors, in that they resemble a tanks caterpillar-tracks. However, the design is somewhat different and this gives it different capabilities. In particular, Slat Conveyors are much smaller and lighter-duty than a typical plate link conveyor, being limited to around 800mm in width.A major benefit of slat chain conveyors over plate link conveyors lies in the ability of the platelets of a slat conveyor to ‘flex’, and hence turn corners, complex loops, and even spirals. This makes them very popular in continuous manufacturing processes, bottling plants, etc. Whereas a plate link conveyor drives each platelet by means of a pair of chains, the slat conveyor adopts a different approach. Each platelet is bonded to the next by a hinge, making the entire belt length a chain in and off itself. Regularly spaced sprockets both support – and drive – the chain. The concept is similar to a cog-and-pinion railway (but with the locomotive remaining stationary, and the track being moved).Because the platelets are joined at the centre of their span, rather than at both edges, they have the potential to rotate around the joint, hence producing the ability to flex.   Salient Features: Structure is made of SS 304 30 mm sq. Pipe, 16 SWG with matt finish. Length can make as per customer requirement. UHMW self-lubrication guide below chain. Adjustable height of conveyor belt, to align with other machine of the line. Self-alignment bearing for easy maintenance. Rigid Vibration free Construction for trouble free performance. Slat conveyors are built with carrying members of wood or metal slats attached to a single or double strand chain. In addition to conveying operations they may be used as a traveling workable, or a combination of the two. Many kinds of parts and packages can be carried light, heavy or bulky units on inclines as well as on the horizontal. Slats can be designed and shaped to suit the articles to be handled. Slat conveyors can be applied advantageously to obtain a steady, orderly flow of material through a plant, eliminating confusion, promoting efficiency and effecting important saving in handling cost

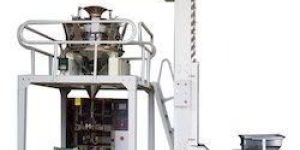

Filing Type : Weigh Metric with Linear Feeder

Usage/Application : Granules

Capacity : 500-1000 pouch per hour

Automatic Grade : Semi-Automatic

Pouch Capacity : 50-1000 grams

Brand Name : Inpak

Shrink packing machine is suitable for external packing of such products as food, beverage, medicine, video/audio products, metal ware. Cosmetics, books, toy, plastic and electronic products.   Features: Flow air system, hot-wind and down cyclone structure. Tunnel height be adjustable Advanced intelligence temperature control Conveyor is alternative with roller or Teflon mesh. Electrical Specification** Conveyor Motor 0.4 KW / 440 Volts / 50 Hz. Blower Motor 0.75KW/440 Volts / 50Hz. Heater 6kw /220 Volts / 50Hz

The Inpak-VZ-400/500 provides two bars at the front and at the rear. With this arrangement you can seal several pouches simultaneously. It Inpak-VZ-400/500 takes up very little space and offers fast, efficient packaging, with a higher vacuum evacuation capacity. It also offers additional options, however, including the ability to create Modified Atmosphere Packaging (MAP). It is simple to operate and to clean, and delivers first-class, consistent packaging results.   Features: Compact size Stainless steel construction Powerful pump Safety glass window Quick change heating Element in seal bar Filler plates Microprocessor control Automatic progressive ventilation Vacuum "quick-stop" & “Quick-ON’’

The Inpak is a Servo driven auger filler designed for precise, repeatable filling. The servo drive allows for the flexibility of matching the correct acceleration and deceleration to and from maximum speed, to accommodate the special needs of each product. The flexibility results in superior fill accuracy and increased batch yield. The simplicity, clean lines & touch screen controls of the IP-SV-800 fill machine provide an easy to use & cost effective system, at the same time utilizing state of the art components & technology.   This weight controlled version IP-SV-800 fill is flexible enough to be used with any type of bag, semi-rigid or rigid containers. weights from a few grams to 2kG. can be achieved with great accuracy by using volumetric or weight control mode. Features: All stainless steel contact parts No-tools removable change parts Auger machined from solid Independent agitation drive Large capacity seamless hopper Plc control via touch-screen panel Product recipe memory

The Inpak semi-automatic is a unit with volumetric filling machine bench height filling platform. It can be specified with one or two filling heads, and single or double acting product cyylinders. This filling machine is ideal for small to medium batch production environments, and is particularly suited to those filling a variety of products and/or containers. Containers are hand placed by the operator under the filling nozzle, filling begins when a push button or foot pedal is pressed or automatic time delay made.           Standard Features: Single or double action product cylinders Product cylinders from 100ml to 2000ml capacity One or two filling heads ±0.3% to 1% variation in accuracy from mean dose down to 25% of cylinder volume Quick and easy to clean 316L/304 stainless steel / PTFE contact parts Variable fill speed can be used during a filling cycle Nozzles can dive and rise whilst filling or fill into neck, depending on product Able to fill a wide range of container sizes Standard Features: Flushing circuit for clean-in-place cleaning powered modular conveyor Indexing conveyor Detachable hand held filling nozzle Hand held cap tightener

Machine Weight : 250 kg (Approx.)

The Compact Inapk batter filling machine is a great all-round, affordable and compact fill machine for food processing industry. This precision portioning can be used for the filling of ready rice batter , meals, sauces, dressings, pastas and more.An ideal piece of food processing equipment, it can fitted with many of our standard filling attachments,     Features: Designed with the least number of parts to clean Can be quickly and easily disassembled for cleaning and product change-over Height adjustable depending on model

Being the leading names in industry we are engaged in manufacturing & supplying a wide range of Filling Machines. Our all products are of excellent quality and can be availed at industry leading rates..   Item Code: Cup-Metering-Vertical-Packing-System   Features: The cup metering filler configuration is economic and practical The structure of cup metering filler is simple, logical and easy operation The cup metering discharge easily, fast simple and low maintain Technical Characteristics: The PLC control combined with touch screen providing user friendly operation and high precision The memory of 20 groups of packing specifications can exchange the production quickly The equipment is up to the standard of GMP requirements and made of SS304 which are durability, Beautiful shape and stable The machine can finish automatically all processes: measuring, filling, bag making, date-printing and finished productions conveyance Servo film feeding system, correct register, sealing and cutting positions adopt automatic correction device, high automation The machine used intelligent temperature controller, it can accurate and stable control the sealing temperature, Ensure the nice and smooth sealing effect The machine with automatic alarming protective function, reduce the consumption up to the lowest Type of bag making: according to customer's demand, the machine can produce pillow bags, punched hanging bags Ancillary metering equipment : Screw Metering Filler, Volumetric Cup Metering Filler, and 4-14 Heads Combination Weightier

The Can with the Lid (End) to be seamed is placed on the lifter plate and the pedal is fully pressed and released. The Can is lifted to the Seaming Chuck and the seaming operation begins. After completion, the lifter plate with the seamed Can are automatically brought down to the rest position.

Brand Name : inpak

Model Number : IP VT 1000

Capacity : Min 100 gms to Max 25 kg

Color : Green

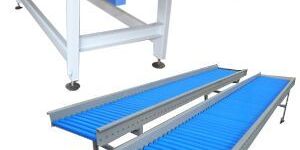

Inpak offer a large range of gravity roller conveyors for almost any application or industry. These gravity conveyors can offer a cost effective simple solution for most conveying requirements. The mini roller inpak-100 series is capable of handling product as small as inpak-75mm long and our inpak-900 series are able to handle fully loaded pallets. Many types of rollers and side frame materials are available including aluminum and stainless steel, to suit general, hygienic or food grade applications. The popular inpak-700 series gravity conveyor is a formed steel side frame with spring loaded rollers, offering a smooth aesthetically pleasing side frame. For maximum versatility speed track is available in modular straight sections, bends, spiral bends, gates and merges. All units can be linked to the inpak gravity and powered ranges.   Features: Simple cost effective product transportation. Quality products all with high specification ball race bearings ensuring many years of trouble free performance. Skate wheels and rollers in steel or high impact PVC. Side frames: steel powder coated, stainless steel or aluminum. Roller diameters: 20,30,40,50,60,80 and 100mm. Track widths: 100mm mini tracks through to 1500mm pallets tracks. Standard straights, bends, gates and merges.

Machine Weight : 200 kg (Approx.)

Brand Name : Inpak

Capacity : As Customer Requirement
