Umaxe Furnace (p) Ltd. Vellalore, Coimbatore, Tamil Nadu

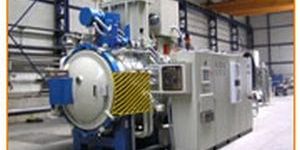

Vacuum CarburizingIn Vacuum Carburizing, repeatable carburizing results according to pre-programmed parameters, Uniform case depth across a loadOptimum, step-by-step process programming procedures separated into carburizing, diffusion and pre-cooling for hardening stages to obtain the required carbon content and hardness profiles depending on steel grade and carburized part geometryVacuum Carburizing has the capacity to process mixed parts with various packed densities and materialsUnique carburizing atmosphere, (patent pending), assuring uniform case depth over all surfaces (including hollows and recesses), clean load surface and elimination of by-products including tar and soot (no aromatic rings formation or polymerization)Elimination of intergranularinternal oxidation (which may occur during gas carburizing and vacuum carburizing in acetylene)Automatic control of carrier gas flow according to load size and process stageVacuum Carburizing records process parameters and heat treatment results Vacuum Carburizing is the preferred alternative to traditional carburizing methodsHigher process temperatures up to 1980°F (1080°C) resulting in faster diffusion stagesFlexibility in furnace operation including pre-programmed temperature changes that are required for pre-cooling in hardening or for pearlitizationAutomated furnace controlsBright and clean part surfacesNo carbon monoxide (CO) in effluent gasesFast start of cold furnace (no conditioning or activation required as is typical for vacuum furnaces); the furnace can be switched off for the weekendLow consumption of carburizing agent, permanent supply is not requiredNo heat or gas emissions to the surrounding environment; furnaces can be installed inline with other processing machines; no special fire-protection requirements for the working area or buildingCompact design requires less shop floor space Vacuum Carburizing with gas quenching eliminates many of the operational limitations of traditional oil quench systemsControl of cooling rate by changes of gas pressure and blower motor speedUniform cooling conditions; minimized and predictable distortion; especially important for new steel grades with improved hardenability where single chamber furnaces or modular systems can be usedAbility to quench HSLA, O2, 52100 and similar steel gradesClean and dry heat-treated loads; no quench fluid disposalSimple and safe procedures compared with oil quenching operations

Umaxe Regenerator is added to the Umaxe 660720830970 baths to avoid Decarburization by maintaining regular additions. It should be added when the bath is at the normal operating temperatures. It forms a layer on the bottom of the pot and this layer tends to become hotter than the salt. Care should therefore be taken while inserting the thermocouple end from dipping in to this layer.

Umaxe 830 is used in the above working range for Hardening of various Chromium steels; Rust resisting tool steels and various Hot Working Die steels. Umaxe Regenerator is used at the rate of 125 gms per 100 kgs of UMAXE830 per 8hrs a day. For every 8 hrs, the bath should be sledged accordingly.

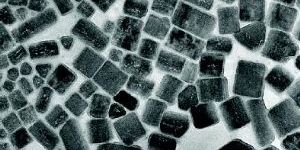

Umaxe 720 is used with Umaxe Regenerator as a Neutral salt which gives freedom from Decarburization. It neither has a tendency to carburize the steel. It has an excellent tendency to readily soluble in water. Umaxe 720 is used in the above working range for Hardening of various Carbon steels, Alloy steels, Tool steels. Umaxe Regenerator is used at the rate of 325 Gms per 100 kgs of Umaxe 720 per 8 hrs. a day.

Umaxe 660 is used in the above working range for Hardening of various Carbon steels, Alloy steels, Tool steels and for pre heating the High speed steels and Hot working Die steels before treating them in Umaxe 970.The bath gives Freedom from Decarburization and Umaxe 660 is less soluble in Water. Umaxe Regenerator is used at the rate of 225 Gms per 100 kgs of Umaxe 660.

Umaxe 540 is used at a temperature of 500600c for quenching the components From Umaxe 970 salt bath. It gives minimum distortion and less cracking than when oil quenched. The components are soaked in the bath reasonably long enough and taken for air-cooling. These components are subsequently tempered in Umaxe 495. High-speed steels are Tempered preferably twice for air-cool in between.The tempering temperature will be in between 520570c.

Umaxe 495 has a lower melting point and can there fore be used at lower temperature of both quenching and tempering of High-speed steels. Umaxe 495 alone is used for making up the initial melt and for maintaining the correct level, The bottom of the pot should be dredged periodically to remove the sludge.

Umaxe 220 is widely used for the tempering and gives much uniform results at a low cost. It is widely used for quenching in Austempering and Martempering. The bottom of the bath should be dredged daily to remove sludge.

Umaxe 150 is widely used for the tempering and gives much uniform results at a low cost. It is widely used for quenching in Austempering and Martempering. The bottom of the bath should be dredged daily to remove sludge.

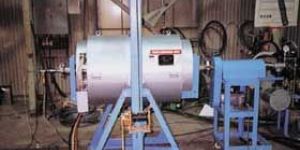

Applications of Retort Type Furnace :Optional equipment can be added permitting heat - and surface - treatment process employing a variety of atmosphere gases and temperatures. the retort design permits free alternation between process without interaction, that is to say, permits carburising-quenching, corbonitriding, gas soft nitriding and other processesFeatures : Conventional brick type furnace has the remarkable features as instructed but the retort type furnace has the additional splendid features as follows since the interior of the furnace is sealed completely by the heat resistant metal retort. Seasoning and drying processes are not required for Retort type furnaces. Retort type furnaces consumes less than one-third the atmosphere gas of conventional designs. Retort type furnaces permits full weekend shutdown. Retort type furnaces allows atmosphere gas to be changed quickly and easily without burnout process. Can function as a degreasing furnace in direct preparation for subsequent heat - or surface - treatment processes. Retort type furnaces has Improved temperature and atmosphere distribution. Retort type furnaces has option for Quench Tank with forced colling chamber.

Radiant Tube Heaters are generally used in custom heating applications. We have different types of Radiant Tube Heaters. These Radiant Tube Heaters are used in many applications. We charge very reasonably for all of our products.

Batch Type Sealed Quench FurnaceApplications :Batch Type Sealed Quench Furnace are mainly used in Carburising carbonitriding and quenching, Batch Type Sealed Quench Furnace is also being used for bright hardening, bright annealing.Features of Batch Type Sealed Quench Furnace :-Uniform heating, carburising and quenching to ensure high quality heat treatment. Reliable control system througn PLC providers excellent control of furnace processes and work quality. High heating efficiency and reduced power consumption. Suited for mass production. Designed for fully automatic control. Several furnaces, their feed systems and their associated upstream and downstream equipment can be easily automated. Low Operating Cost. Easy Maintenance. Can be adapted for both Endogas and Nitrogen Methanol Atmospheres. Turn-key project offered with process know-how.

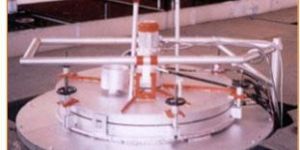

Pit Type Furnace Applications :Pit Type Furnace is mainly used in Carburising and carbonitriding.Pit Type Furnace is also used in bright hardening, bright annealing, bright normalising, etc Features of Pit Type Furnaces :Pit Type Furnace is rugged in construction. Pit Type Furnace has Effective insulation. Air cylinder driven top-plate (Optional). Pit type furnace has better temperature uniformity with powerful agitation. Pit type furnace has excellent hermetic sealing. Pit type furnace is suitable for carbofluids, Endogas or Nitrogen Methanol atmospheres.

We are offering umaxe - neutral salts 970-working range970c1350c. Umaxe 970 is used in the above working range for hardening of various high speed steels and hot working die steels to get excellent treatment results by completely avoiding scaling and decarburization.

We are offering hearth grid.hearth grid made of heat resistant castings for the best carbonising furnaces..

We are offering grid rail. grid rail made of heat resistant casting for best furnace hearth.

We are offering fan shafts.fan shafts made of heat resistant casting for continuous type best furnaces.

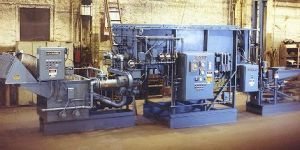

Umaxe UD Carb Excel 800 is world class high performance carburizing fluid, specially developed to give a uniform carburizing gaseous atmosphere when cracked in a furnace. The carbon content of this fluid is about 60% and has excellent diffusion properties. The main advantage of this product is excellent distribution of Carbon in the matrix with out any chance of carbide precipitation in the controlled atmospheric conditions.Packing All the BEST Salts will be packed in 25kegs HDPE bags with inner polythene liner Range of High Performance Carburizing Fluids :Gaseous mode of carburizing is a successful and most advanced method over conventional carburizing.

Disposal of Residues & Effluents from Salts Baths :Effluents from quench & wash tanks need to be treated before disposal. Further Information :Information given in this product guidebook is based on actual experience and believed to be accurate.The manufacturers however do not take any responsibility for any loss to the user arising out of the use of such information.

Decarb Annealing Cum Blueing Furnace

With batch type design, typically an electrically-driven, insulated car is used to move a load into and out of the furnace. Often, a double-ended furnace (door at each end) is used with two cars so that turnaround time on the Aluminum Homogenizing furnace is reduced, thus maximizing production.The alternative to the car bottom design for the batch type units, is the tray design. With this design, the load tray rests on a series of support posts inside the furnace. A charge machinetransfer car is used for chargingdischarging of the tray and transferring the tray from the Aluminum Homogenizing furnace to a cooling station or to a loadunload station.A third type of batch unit is the traveling furnace. This type of Aluminum Homogenizing furnace utilizes a pair of fixed load bases to support the load. When the cycle is completed on base no. 1, the furnace moves into position over the second load base and immediately begins heating a new load. The previous load is allowed to cool and then unloaded and replaced with a new load. This can all be accomplished before the next homogenizing cycle is completed. A traveling furnace provides savings in floor space since the two load bases require significantly less floor space than a double ended stationery Aluminum Homogenizing furnace with two load cars.
