Acorn Controls Shaheen Bagh, Delhi

Description: Measuring range (metric/imperial): 1.2-225mm, 0.05-9inch Operating principle: ULTRASONIC Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials Sound velocity: 500-9000m/s Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer Calibration block: included Resolution: 0.1mm Accuracy: ±(0.5%n+0.1) Power supply: 4x1.5V AA(UM-3)battery Battery indicator: low battery indicator Operating conditions:0-+45℃(32℉-104℉), ≤90%RH Dimensions: 120x62x30mm Weight: 164g (not including battery) Standard Delivery: Main unit 1 5M Φ10 Transducer 1 Couplant 1   Application:  TM8812 can be used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing. TM8812 is an extremely useful tool for setting up Clamp-on Ultrasonic flow meter,It gives you exact pipe thickness quickly which is needed for correct set-up of such flow meters.

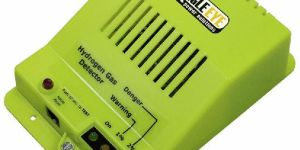

This is a Micro-controller Based H2 Indicating Controller for monitoring & Ventilating hazardous Hydrogen accumulation in Battery rooms or in Hydrogen storage areas.. Hi & lo set points can be set using membrane keypad. A relay c/o output is provided for controlling ventilation fan and for Alarm output generation.

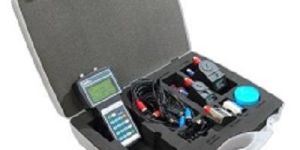

Portable Clamp-on Ultrasonic flow meter TR600H is a very useful tool to parallel pumps.Back pressure balancing will result in each pump to work at max efficiency, Portable Ultrasonic device is a must for all energy auditors for energy efficiency estimates.

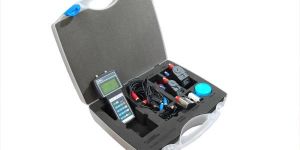

This is a portable /handheld battery operated flow meter. It is a versatile flow meter for flow metering of liquids such as raw water, chilled water, potable water, D. M. Water, oils, organic solvents etc. Want to check your pump efficiency? Want to balance outputs of paralleled Pumps for best discharge ? - TR600H is the best product. It is moderately priced and with a short payback period, We offer compact rugged Carry case , easy for energy auditors to take it around places. Please specify : Application, Pipe sizes of interest,Liquid type& temperature to work out best price.

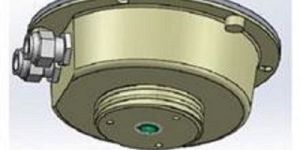

Acorn Controls offers H2 Sensor with Thermal Conductivity based Hydrogen Gas measurements.  -Thermal Conductivity Hydrogen Gas sensor  -State of art technology sensor  -Low cross sensitivity to other gases  -Safety Certified version ( Please inquire) - high concentration ( 0 to 100% ) Hydrogen gas measurement range in absence of Oxygen-possible -Three wire Transmitter with 24Vdc < 1w="">

Acorn Controls offers H2 Sensor with Catalytic Pellistor based Hydrogen Gas measurements. Proven Catalytic combustion sensor, State of art technology sensor, Long life, zero maintenance, Low power, Three wire device, Quick Response Ceiling mount design, 2% H2 ranges- balance air : H2SENSE-CC2410-2 (POPULAR OPTION), 4% H2 ranges- balance air : H2SENSE-CC2410-2 ( Please specify ).

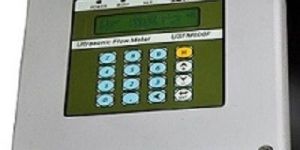

Fixed Ultrasonic Flow Meter is an ideal choice for industrial automation, process monitoring, water source management, flow meter networking, Hygienic liquid Flow metering and OEM applications. For water supply schemes, we can provide SMS or GPRS based remote data logging.

Portable external clamp-on meter TR600H can be used for monitoring yields or discharge from Tube wells and water bodies.

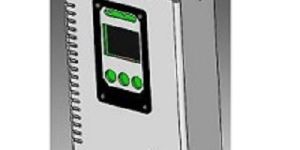

  CO2 SENSE-xx series of ambient gas monitoring devices are low cost front ends needed for Industrial /commercial/ residential pollution monitoring and for Agriculture and food processing units for improved yields FEATURES: -NDIR ( Non-Dispersive-Infrared) technology used to measure CO2 concentration -Reliable Sensor provides long-term calibration stability. -LED Alarm indicators current Indoor Air Quality alerts (optional) -Wall Mount rugged enclosure with terminal block provided for quick / easy installation -24Vac/dc power supply APPLICATION:As Front end of Controllers of.. -Air Conditioned offices, shopping malls, Schools, Exhibitions Hallsrestaurants/pubs -Green houses, Mushrooms cultivation, Flower growers and nurseries -Food processing & Food storage, Breweries -Dairy ventilation requirements, Animal confinement , and restaurants/pubs etc.

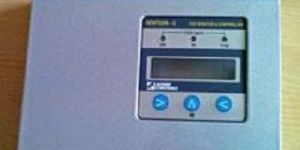

CO2 monitoring at ppm level in public places , homes, parking lots is very much necessary for prevention of health hazard and also for HVAC application where fresh intake can be controlled thru CO2 levels, thereby admitting optimum level of fresh air. resulting in great energy saving.

Acorn Controls is one of the leading Electromagnetic Flow meter manufacturer in India and our meters can fulfil the requirements of any customer who requires Electromagnetic Flow meter, Water Flow meter, Waste water Flow meter, Sanitary Grade Flow meter, Industrial Flow meter, Chiller Flow meter, Chemical Flow meter, Full bore Flow meter, Wafer Type Flow meter, Insertion Flow meter, Insertion type Electromagnetic Flow meter, Irrigation Flow meter, Juice Flow meter, Milk Flow meter, ETP Flow meter, BTU meter and etc.
