We manufacture Sulphur Analyzer having integrated configuration with high temperature cracking furnace Sample Feeding Device, Electrolytic Cell, Gas Purification System, Stirrer and many more to function efficiently. Our Sulphur Analyzer can be uploaded with 24 samples at a time to accurately determine sulphur content in materials like coal, catalyst, rock, coke, petrochemical, minerals, etc. It also offers testing, storing and printing facilities. Salient Features : Automatically corrects system error by softwareContactless switchesElectrolyte anti-backflow facilityCompatible Windows SystemHighly stableEasy linkage with electronic scale and other networksSafe and reliable Finds Applications in : Electrical Power IndustryCoal IndustryCement PlantsMetallurgy IndustryEnvironment ProtectionPaper IndustryResearch InstitutesPetrochemical IndustryQuality inspecting organizationCommercial Inspection

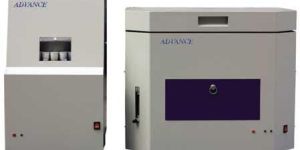

With strong manufacturing capability and a qualified team, we have designed and developed our Proximate Analyzer, which is incorporated with a High Precision Electronic Scale. The latest and advanced heating elements and various heat insulators ensure rapid temperature rise and the safety of furnace. Using thermo-gravimetric application, our Proximate Analyzer can continuously and automatically test 19 samples in each experiment with great accuracy. The Instrument can also automatically Calculate colorific value and then content of fix carbon and hydrogen in the sample. Performance Rate : Air-dry basis moisture and ash: 150 minutesVolatile constituents: 7 minutes Features : Lower malfunction rateAutomatic computer control over calculation, data collection and printingLow temperature driftHigh precision operational amplifierCold end compensation12-Bit ADCLatest dust suctionOver-temperature protectionCompatible Windows SystemEasy linkage with electronic scale and other network systems Application Areas : Electrical Power IndustryCement PlantsCoal IndustryMetallurgy IndustryPaper IndustryResearch InstitutesEnvironment ProtectionPetrochemical IndustryQuality inspecting organizationCommercial Inspection Technical Specifications :ModelFully Automatic Proximate Analyzer Model APA-1:Fully Automatic Proximate Analyzer Model APA-2 (Horizontal)Furnace Temperature0 oC - 1000oC0 oC - 1000oCTemperature controlling precision+- 5 oC +- 5 oC Weight of sample0.5g - 1.2g0.5g- 0.7gSample number19 sample per experiment19 sample per experimentTesting time19 samples in 150 minutes (moisture, ash), 7 minutes a sample (volatile constituent) 20 minute per samplePower Supply230 - 260V, 50Hz230 ~260V, 50HzPower5KW2 KWDimension520mm X 500mm X 600 mm400mm X 510mm X 640 mmWeight65kg65kg

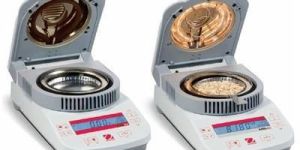

Our Moisture Analyzer is made to measure moisture content in products that do not experience chemical change when exposed to infrared radiation. We are identified as one of a reputed Moisture Analyzer Manufacturers in the national and international markets. Following stringent quality standard during production process, we have developed Moisture Analyzer which renders accurate reading of moisture in a product instantly. Features : High accuracy and repeatabilityEasy to clean designSimple to operateDurableConsistent performanceAffordable Apt to determine moisture content in : FoodPlasticAgricultural soilLight powdersTextileCeramicHeavy grained productsCoalCashew nutsRicePharmaceuticals Technical Specifications :ModelBasic Moisture Balance Model ARICO -23 Basic Moisture Balance Model ARICO -25 Capacity110 g110 gRepeatability0.3% (3 g sample)0.2% (3 g sample)0.2% (3 g sample)0.05% (10 g sample)Readability0.1% / 0.01 g0.05 / 0.0005 gSample size3 g to 20 g typical, 0.5 g min.3 g to 20 g typical, 0.5 g min.InterfaceBidirectional RS-232Bidirectional RS-232Timer1- 99 minutes, second increments to 60 minutes1- 99 minutes, 30 second increments to 60 minutesHeating technologyInfrared (no glass)HalogenPower100 to 240 VAC, 50/60 Hz100 to 240 VAC, 50/60 HzTare rangeTo capacity by subtractionTo capacity by subtractionOperating temperature range5oC to 40 oC 5oC to 40 oC Display typeCustom backlit LCDCustom backlit LCDPan sizeDiameter 90 mmDiameter 90 mmDimension17 x 13 x 28 cm17 x 13 x 28 cmNet weight2.3 kg2.3 kgShipping weight3.9 kg3.9 kg

We are offering digital refractometer. designed in combination with superior components and latest technology, our digital refractometer is popular in the world market for delivering precise and instant calculations. We are identified as one of a reputed digital refractometer manufacturers in the market. Available in two models viz dg-nxt & dg-ert attributes : digital readouteasy to operateautomatic temperature compensation for brix scale & distilled waterdust proof prism coverserial interface apt for data print-outfully eliminates reading errors used in : pharmaceutical industrysugar millsessential oilsfood industrychemical industrycommercial labs technical specifications :- parameterdigital refractometer model dg-nxt digital refractometer model dg-ert refractive indexnd 1.3330 to 1.5318nd 1.3330 to 1.5318 resolutionnd 0.0001nd 0.0001 accuracynd +- 0.0002nd +- 0.0003 brix0 - 95%0 - 95% accuracy+- 0.1%+- 0.2% atcdistilled water & brixdistilled water & brix working temperature5 & 40 oc5 & 40 oc outputwith software (optional)- power supplyboth thru adaptor & battery upto 5000 testsone 1.5v alkaline upto 8000 tests

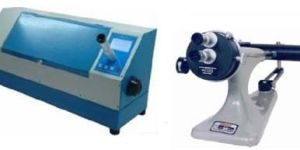

We are known in the market for precision Digital Polarimeters & Saccharimeter for the last 40 years. This experience ensures that we offer the best and latest in Digital Polarimeter technology, design and features incorporated in our instruments. The Digital Polarimeter and Saccharimeter are available in two series viz. PA & Semi-Pol. The PA series is suitable for observation up to 220 mm while PB / SemiPol series can accommodate tubes up to 400 mm. They offer an accuracy of 0.01 angular scale and ISS 0.5ºZ. Salient Features : Superior quality optics and highly sensitive triple shadowPermanent focus with difficult and dark liquidHigh accuracy and repeatability along with strain free viewingReal time, day, date & backer backup (For SemiPol series only)Memory & Parallel Printer Port (Optional for SemiPol series only)Sodium / Tungsten / High Intensity Integrated Light Sources Finds Applications In : Pharmaceutical industrySugar MillsEssential OilsFood IndustryChemical IndustryCommercial Labs

We provide Automatic Polarimeter, which is designed by us integrating the latest developments in Optoelectronic Technology. Having four scales that are used in routine regular analysis, Angular Rotation, Specific Rotation, International Sugar Scale and Concentration, our Automatic Polarimeter easily identifies and characterizes variety of chemicals and other stuffs without commencing any error. It is aptly designed to offer concrete results in testing for quality control, process control and research applications. Available in two models viz SucroPol & DG:Pol:PS. Salient Features : Complete automatic readout of various rotationsBig Multifunctional LCD displayRS-232/USB Output PortEasy Interactive Setup MenuAccepts tube lengths of up to 200mmAutomatic and precise calculation of repeatability factor and average valueIdeal for heavy duty useAffordable Application Areas : Pharmaceutical IndustrySugar MillsEssential OilsFood IndustryChemical IndustryCommercial Labs

Driven Type : Electric

Color : Off-white

Application : Laboratory

Voltage : 220V

Packaging Type : Corrugated Boxes

Type : Polarimeter

Weight : 30-40 Kg

Resolution : 0.01 To 0.001 Deg

Country of Origin : India

Display : Digital Display

Warrnaty : 1 Yr

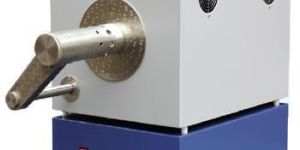

We are engaged in offering premium grade Ash Fusion Analyzer that is aptly designed for measuring Ash Fusibility in Coal. It offers various solutions like temperature reading, stabilizing, and controlling. In our Ash Fusion Analyzer, we have introduced CCD photography technology, which allows collecting the graph of ash cone that can be automatically stored and printed out. Herein, a single test can determine 3 samples together. Technical Specifications : Temperature Controlling Accuracy : 5°CFurnace Temperature Range : 0°C - 1520°CResolution : 1ºCTemperature Rising Speed : Comply with national standardSample Quantity : 3 samples each timeMaximum Power : 5KWLaboratory Atmosphere : Oxidability or weak reducibilityCabinet Dimension : 400mm X 550mm X 600 mmWeight : 65kgs Salient Features : Consists of novel heating elementEnsures safety of furnaceHigh Resolution CCD camera with filter4.5-bit A/D switching chipLow temperature driftCold-junction compensationOver-temperature protectionWithstand high temperature up to 1520Easily determines floating and high temperature Have ash graphCompatible Windows systemHighly stableEnsure linkage with electronic scale Used In : Electrical Power Generation IndustryCement IndustryPaper IndustryChemical IndustryResearch Institutions

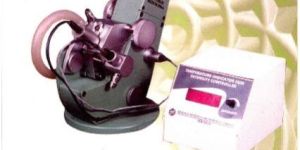

We are counted amongst the leading manufacturers, exporters and suppliers of the premium quality Abbe Refractometer. Our Abbe Refractometer is in great demand in the Indian and International markets, as they offer precise readings. Model : R-8 Supplied With : Digital Temperature IndicatorCompact Lighting SystemTest PieceContact LiquidScrew DriverBrushDust cover in a wooden case
