Afridev Hand Pump Dealers in Delhi

• Type: Hand Pumps, Water Hand Pumps
• Material: Stainless Steel
• Certification: CE Certified, ISO 9001:2008
• Application: Ground Water
• Weight: 30-40kg
• Color: Brown, Grey
• Condition: New
• Automatic Grade: Manual

The INDIA Mark II Pump is a conventional lever action handpump and is subject to Indian Standard IS 9301. This pump has a pump head, pump stand and a handle of galvanised steel. The down hole components exist of a brass lined cast iron cylinder with a footvalve and a plunger of brass. The plunger has a double nitrile rubber cup seal, the rising main is a Ø32 mm GI pipe and the pump rods are of galvanised steel with threaded connectors. This pump is not corrosion resistant and should not be used in areas with aggressive water ( pH value < 6.5).

• Driven Type: Pneumatic
• Color: Grey
• depths: 10m to 45m.

Afridev Deepwell Hand Pump -A true VLOM Concept (village level operations & maintenance) hand pump with minimal maintenance as per the latest SKAT specifications. This pump is used in several countries of Asia & Africa. Suitable for lifting water from depths of 10m to 45m.These feature makes the Afridev Hand pump a user friendly hand pump & easy to install & maintains. (The above ground mechanism) fully fabricated steel structure duly hot dip galvanized with conical flange and rubber grommet for better gripping of UPVC rising main. An adjustable T-bar handles to get maximum mechanical advantage for different pumping depths. Three legged, square flange and Round flange options, Brass lined UPVC cylinder providing resistance of corrosion and abrasion with extractable plunger and foot valve assemblies. Options of brass plunger body apart from plastic, Mild steel (MS) & Stainless Steel (SS) [AISI: 304316] are available Light weight UPVC riser pipe with spigot socket cemented joints along with a rubber centralizer.

Afridev Hand Pumps. These hand pumps are available with cylinders and in various specifications.This Hand Pump is a conventional lever action Hand Pump. The configuration includes an open top cylinder. The piston can be removed from the cylinder without dismantling the rising main. The foot valve is retractable with a fishing tool.

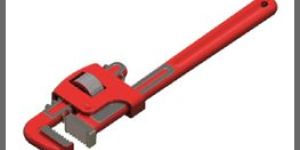

Button Die 12 mm, Pipe Die Set For 3265 mm NB, Pipe Die Set For 3265 mm NB, Pipe Wrench 450600 mm, DE Spanner 17x19 mm, Adjustable Spanner, Screw Driver Big • Screw Driver Small, Hacksaw With Blade, File Flat - 250 mm, File Half Round - 250 mm, Ball Pein Hammer - 0.8 Kg,M Wire Brush - Centre Punch, Multi Purpose Grease - Bench Vice,

Afridev Hand Pump, Rubber Neck Rings, Rubber Hollow Mat

Afridev Hand Pump, Star Scrubber Packing Machine

Afridev Deep Well Hand Pumps, Standard Deep Well Hand Pump

afridev deepwell hand pumps

Afridev Deep Well Hand Pump, Uganda U2 Deep Well Hand Pump

Afridev Hand Pump, India Mark Hand Pumps, Force Lift Hand Pump
