Air Entrainment Meter Dealers in Delhi

Customers highly prefer us because of our practice of delivering the orders in an organized condition and on time. Our products are packed according to the requirement of buyers, as we provide customized packaging solutions. Our packages are superior, secure and waterproof as well.   Details : Product Code - EKE 340 EKE 340 - Capacity 0.005 m ³ (5 litres), suitable for aggregate size upto 38 mm . EKE 341 - Capacity 0.01 m³(10 litres), suitable for aggregate size upto 75 mm EKE 342 - Capacity 0.1 m ³ (100 litres), suitable for aggregate size upto 150 mm. Supplied with Foot Pump in place of Pressure Bulb as supplied with other models.

• Country of Origin: India
• Size: Standard
• Type: Automatic
• Material: Aluminum, Plastic
• Certificate: CE Certified
• Application: Industrial

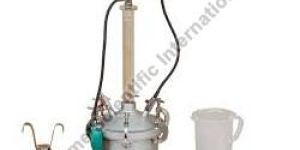

For concrete containing nominal maximum size of aggregate of 38 mm. The apparatus consists of a measuring bowl of 0.005 cm capacity. A flanged conical cover assembly fits over the bowl and can be sealed with clamps keeping a rubber gasket in between. A water inlet valve with a spray tube and an air bleed valve are fitted on the conical cover assembly. A pressure gauge is mounted on the top of the stand pipe. A hand pump is provided for the application of pressure.

Product Code: EKE 343   It consists of an alluminum vessel with built in hand operated pressure pump, connected to the measuring gauge showing directly the air content in percentage Air content range: 0÷10% div. 0.1% up to 8% and 0.5% over 8%Dimensions: Dia. 250x450 mm

• Capacity: 0.005 m3 (5 dm3), suitable for aggregate size up to 38mm

It consists of a pressure-tight flanged cylindrical measuring bowl, fitted with a removable flanged and a conical cover assembly with a seal in-between. The conical cover has an air valve and a petcock for bleeding off the water. A cylindrical standpipe, which is graduated in percent air content, is fixed to the conical cover assembly. Required pressure is applied to the specimen with the help of a pressure bulb. The recommended limits specified for the air content are between 3% and 6.5%.Each apparatus is supplied complete with a calibrating cylinder, pressure gauge, funnel, trowel and tamping bar

We offer Air Entrainment Meter. Air entrainment meter machine helps to limit the air content in the concrete mixture between 3% to 6.5%. This small fraction of air improves the durability of concrete, air contents lower than 3% can cause deterioration and more than 6.5% reduces the strength of the mixture. Small amount of chemicals are added to maintain this percentage of air to get the optimum performance of the mixture.

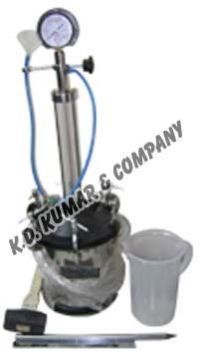

The apparatus consists of a pressure tight flanged cylindrical measuring bowl. The bowl is fitted with a removable flanged conical cover assembly with the help of a seal. The conical cover has an air valve and a petcock for bleeding off the water. A transparent cylindrical stand pipe which is graduated in air content is fixed to the conical cover assembly. Pressure is applied to the specimen with the help of a pressure bulb and the pressure is recorded on the pressure gauge which is mounted on the stand pipe. The whole assembly is mounted on a flat base. The instrument is supplied complete with one each following accessories. Calibration cylinder with spring clamp, trowel, tamping rod, straight edge. Rubber mallet and measure.   Capacity Are also Available Bowl Capacity: 0.005 cubic meterBowl Capacity: 0.007 cubic meterBowl Capacity: 0.01 cubic meterBowl Capacity: 0.01 cubic meter

Air Entrainment Meter is used to conclude the air entrained in freshly mixed concrete by using the pressure method. Our Air Entrainment Meter conforms to IS 1199 1959 & BS 1881-106 standard. Clients highly acknowledge our Air Entrainment Meter for its reliable performance and durability. In addition, we are a trusted Manufacturer, Exporter and Supplier of Air Entrainment Meter, located in New Delhi, India. Specifications The apparatus comprises of a pressure tight flanged cylindrical measuring bowl of 0.005 cubic meter capacity, which is used to maximum the size of aggregate 38mm. The bowl is fitted with a removable flanged conical cover with the help of a seal. The conical cover has an air valve and a petcock for bleeding off the water. A transparent cylindrical stand pipe is progressed in air is fixed to the conical cover assembly. Pressure is applied to the specimen with the help of a pressure bulb, which is recorded on the pressure gauge that is mounted on the stand pipe. The whole assembly is fixed on a flat base.

We are counted amidst the prominent Air Entrainment Meter Suppliers in India. The use of optimum quality material in the manufacturing of the Manual Air Entrainment Meter ensures high durability, tensile strength and resistance to adverse conditions.

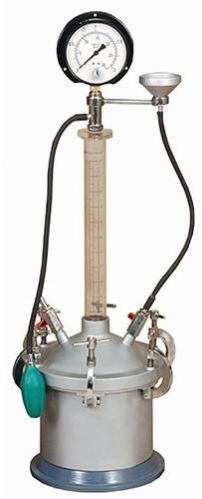

As Entertainment of air in limited percentage improves durability of concrete and very low percentages deteriorate it, measurement of air entrapped in freshly mixed concrete becomes important. The use of chemical additives to increase workability of concrete requires an air content check to be made. Air Entertainment meters are used to determine air entertained in freshly mixed concrete by pressure method.The apparatus consists of a pressure tight-flanged cylindrical measuring bowl of 0.005 cubic meter capacity for maximum size of aggregate 38mm. The bowl is fitted with a removable flanged conical cover assembly with the help of a seal. The conical cover has an air valve and a pet cock for bleeding off the water. A transparent cylindrical stand pipe which is graduated in air content is fixed to the conical cover assembly. Pressure is applied to the specimen with the help of a pressure bulb and the pressure is recorded on the pressure gauge which is mounted on the stand pipe. The whole assembly is mounted on a flat base. The instrument is supplied complete with one each following accessories. Calibration cylinder with spring clamp, Trowel, Tamping rod, Straight edge, Rubber mallet and measure.Available in following sizes & capacities:0.005 cubic meter capacity for maximum size of aggregate 38mm.0.007 cubic meter capacity for maximum size of aggregate 50mm.0.01 cubic meter capacity for maximum size of aggregate 75mm.0.1 cubic meter capacity for maximum size of aggregate 150mm.

We are counted amidst the prominent air entrainment meter suppliers in india. The use of optimum quality material in the manufacturing of the manual air entrainment meter ensures high durability, tensile strength and resistance to adverse conditions

We manufacturer & Supplier of superior Quality Of air entrainment Meter. Air entrainment meter - a device incorporating a measuring bowl of sufficiently rigid construction to make a pressure-tight container of accurate volume and suitable to hold a representative sample of concrete. We exports Air Entrainment Meter to all over the world.

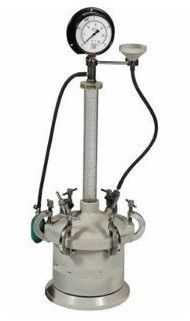

The Air Entrainment Meter that we deal in is comprehensively used for determining air content for freshly mixes concrete via pressure method. Our Air Entrainment Meter comprises of cylindrical measure bowl cover with flanged cover assembly. The pressure gauge of our Meter is fitted at the top, which is joined with a graduated tube at one side & cylindrical bowl from the other. We also provide rubber mallet, tamping rod & spray tube & funnel with our Air Entrainment Meter.

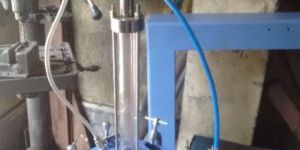

we are one of the biggest air entrainment meter manufacturing firms. We provide air entrainment which is used to incorporate concrete into small air bubbles. The test conducted by this machine is not affected by atmospheric pressure. features highly accurategreater safetylong lasting equipmenteasy operation applications cement industryconstruction industry ticom 574 :- air entrainment meter 0.005 cubic meter capacity for maximum size of aggregate 38 mm is : 1199. ticom 574 :- air entrainment meter 0.01 cubic meter capacity for maximum size of aggregate 75 mm is : 1199 ticom 575 :- air entrainment meter 0.1 cubic meter for maximum size of aggregate 100 mm is : 1199.

We are offering air entrainment meter as entrainment of air in limited percentage improves durability of concrete and very low percentages deteriorate it, measurement of air entrapped in freshly mixed concrete becomes important. The use of chemical additives to increase workability of concrete requires an air content check to be made. Air entertainment meters are used to determine air entertained in freshly mixed concrete by pressure method. the apparatus consists of a pressure tight flanged cylindrical measuring bowl of 0.007 cubic meter capacity for maximum size of aggregate 50mm. The bowl is fitted with a removable flanged conical cover assembly with the help of a seal. The conical cover has an air valve and a petcock for bleeding off the water. A transparent cylindrical stand pipe which is graduated in air content is fixed to the conical cover assembly. Pressure is applied to the specimen with the help of a pressure bulb and the pressure is recorded on the pressure gauge which is mounted on the stand pipe. The whole assembly is mounted on a flat base. The instrument is supplied complete with one each following accessories. Calibration cylinder with spring clamp, trowel, tamping rod, straight edge, rubber mallet and measure.
