Airtorq India Libas Pur, Delhi

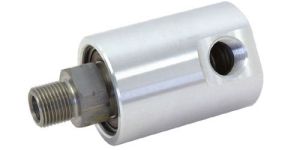

Pneumatic Rotary Joints it is device to connect, or couple a non-rotating air, gas or fluid line to a rotary shaft. External threads on the seal shaft and standard pipe threads on the inlet end make installation job easy. manufacturer, supplier and distributor of power press pneumatic clutch and power press pneumatic brakes we also deals in clutch brakes accessories, components, spare parts.

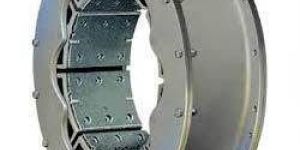

Clutch AIRTORQ Pneumatically actuated single double & Triple Disc Clutches & Spring Released Brakes are used in Heavy Machinery as highly reliable drive components. These units are best suitable for applications requiring large masses to be accelerated or decelerated (Stop).

Pneumatic Combination ClutchBrake comprises of a clutch & spring applied Disc Brake which is air actuated. The Clutch Brakes are intricately designed. It has the twin attributes of high thermal capacity & low air consumption which makes it ideal for high speed, high cyclic, heavy-duty industrial application. When cylinder is pressurized, the piston clamps the clutch disc to the hub which transmits the torque to the shaft. When cylinder exhausts, the springs moves the piston in the opposite direction clamping the brake disc & stopping the shaft. The totally cancels out overlap of clutch & Brakes. The clutch brake are housed in a hub which is pressed & keyed to the driven shaft. These plates can be suspended on twelve pins & guide bushes or on two coaxial or non-coaxial bolts.

Airtorq make Pneumatic Clutch and Brake CCB Model is available in following models- CCB 25,CCB 50,CCB 100,CCB 200,CCB 400,CCB 500,CCB 600,CCB 800,CCB 1200,CCB 1600, find here details like ,torque capacities, clutch torque, break torque, approx weight, maximum speed and stroke volume about CCB Model Pneumatic Clutches and Brakes.

Pneumatic Clutch and Brakes - UCB ModelUCB Model Pneumatic Clutches and Brakes developed and designed by airtorq from delhi, india, These are offered in 3 models as- UCB 3700,UCB 7100,UCB 14500,find here info such as weight of pneumatic clutch, maximum speed and stroke volume, torque capacities ,clutch and break torque of Pneumatic Clutch and Brake UCB Models.

Features : High Thermal Capacity. Stable Coefficient of friction Low Air Consumption

Industrial disc brake We are manufacturer and supplier of pneumatically operated disc brake and clutch. Made from the best raw materials, our clutch and brakes are superior in design. airtorq make disc Clutches Brake operate by actuating the piston using 'U' seals by admitting pneumatic pressure to the unit cylinder. The moving Piston produces axial pressure on the Clutch Disc on release of air pressure Piston is pushed back by multiple return springs. In Spring applied brake discs is produced by multiple springs and brake is released by compressed air pushing back the piston.

Size : AMD-350 to AMD-850

We are manufacturer and supplier of pneumatically operated disc brake and clutch. Made from the best raw materials, our clutch and brakes are superior in design. airtorq make disc Clutches Brake operate by actuating the piston using 'U' seals by admitting pneumatic pressure to the unit cylinder. The moving Piston produces axial pressure on the Clutch Disc on release of air pressure Piston is pushed back by multiple return springs. In Spring applied brake discs is produced by multiple springs and brake is released by compressed air pushing back the piston. The pneumatic multi-disc clutch and brake units have a torque capacity directly proportional to effective air pressure in the clutch Cylinder. The maximum operating air pressure allowed is 6.0 Bar.

Weight : 50 kgs to 1050kgs

Drum Clutches and Brakes - Flexible PneumaticThey are designed to be used both as clutches & brakes in power transmission equipments. They transmit torque through the side walls of the flexible air tube, using tensional resiliency principle. This flexibility also permits minor shaft misalignment. These clutchesBrakes elements are also available in split design in two halves, to cut maintenance time.
