Amcotherm Pvt Ltd Prashant Vihar, Delhi

Our Steam Generator is the latest design in coil type boilers that uses reverse flame technology and is a very consistent and extremely fuel efficient package boiler. The furnace of our Steam Generator is made of an air tight helical coil of membrane wall construction placed inside an assembly & double jacketed MS shall and aluminum radiator. Combustion air is then forced through the jacketed shell, thus getting pre-heated and maintaining the outer shell cool. The Pressure jet burner atomizes the fuel and preheated air aids in completing combustion. The flue gases are reversed in the furnace, resulting in two radiant heat transfer passes and the third convective pass between coil and inner Shell. The flue gases again transfer heat to the economizer for preheating feed water. A specially designed heat optimizer protects the feed water pumps from high water temperature thus enhancing the life of the pump. Reverse Flame Technology The flame reverses within the furnace and thereafter passes along with the membrance wall provided Due to this, the Flame has a longer residence time for total combustion the reverse flame technology ensures a very high radiation heat. Low Fuel Consumption AMCO THERM reverse flame Steam generator has a very high fuel efficiency of 88% (NCV)This is due to complete combustion in reversing flame and extensive heat absorption. Heat recovery through the economizer. No Boiler Inspector Formalities AMCO THERM reverse flame steam generator is out side the purview of Indian Boiler RegulationsNo need of a separate boiler house or an IBR approved boiler Operator Large Tube Diameter AMCO THERM offers a unique coil design , in which the coil diameter is 31.8mm/OD Due this there is Lesser coil choking ensuring longer life coilAlso the coil of AMCO THERM is machine wound which avoids the flame giving any temperature hot spots within the Chamber Dependable input Material The control panel is a fully digitalized oneDigital Temp Displays : Lighted SwitchesBest Quality Components like sequence controller, Photo Cell and lgnition Transformer are made indigenously by AMCOTHERM This Provides the customer availability of spare parts immediately on demand Maintenance is easiest AMKO THERM reverse flame steam generators are designed keeping in mind easy maintenanceAll components are assembled in perfection Blower Fuel Pump and water feed pump motors Placed separately for easy maintenance

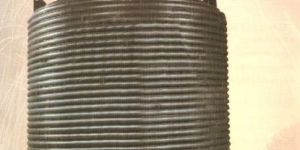

We bring forth exclusive solid fuel fired vertical thermic fluid heaters for our valued clients. These solid fuel fired vertical thermic fluid heaters are made with the use of superior quality components and other raw materials to result in efficient long term usage. Our solid fuel fired vertical thermic fluid heater comes with unique design and features that add up to its heating efficiency. why our solid fuel fired vertical thermic fluid heater? proven design high unit dependabilityfully automatic suitable for multi fuel (husk / firewood / coal) specifications maximum outlet temperature of 300 dc installation option (vertical / horizontal)prompt service and spares supportconsistent efficiency of 72% built in safeties and controls fluid level low : magnetic level switch ensure minimum thermic fluid level in the dearator cum expansion tanfluid flow low : different pressure switch ensure sufficient flow of thermic fluid across the coil and thus prevent coil chocking, over heating and coil failureoutlet temperature high : temperature indicator cum controller prevents over heating of thermic fluidreturn temperature high : temperature indicator cum controller ensure constant temperature for the process and controller id & fd fan operation according to the set temperature

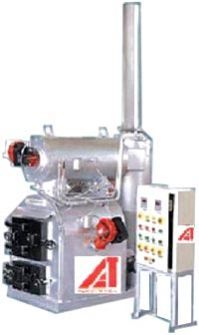

We are a major oil fired incinerator manufacturer, exporter and supplier in new delhi. Manufactured by using the best quality components these oil fired incinerators offer excellent functioning. Our oil fired incinerators are easy to use and are very economic as well. These oil fired incinerators require low maintenance and are longer lasting.

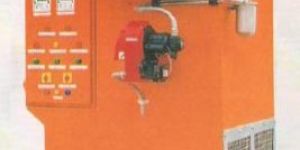

We offer modern technology 4 pass oil fired hot air heater to our esteemed clients. Our 4 pass oil fired hot air heater is a compact, rigid, noiseless & fully automatic machine that comes with user-friendly features. Our 4 pass oil fired hot air heater is completely automatic on pre set temperature. financial benefits 4 pass oil fired hot air heater is economical at all the levelsmore than 50% saving as compared to electric heaterrunning cost much lower than thermic fluid & steam heating100% depreciation on 4 pass oil fired hot air heater in the very first year (as per the income tax rulelow operational and maintenance costlow initial cost as compared to thermic fluid heating salient features clean & critically controllable hot airhigh temperature models up to 150 clow temperature models up to 90 cthermal efficiency of 90% constructional features the fuel oil burner is a horizontal firing, pressure atomizing, forced draught type with direct electric spark ignition. The fuel oil pump with combustion blower is mounted on the burner casing on the front side of the unit. A fuel oil filter is mounted at a convenient position near the pump and is connected to the oil inlet port of the pump. All components of imported burners are from reputed companies like: parker (italy), landis & gyr (germany), monarch (usa), suntec (france), simel (italy). The electricals components used as : l&t, ngef/ siemens / cromption etc. higher temperatures more than 150 c also be achieved through recirculation of air space saver and can easily be installed with existing or new systemfully automatic to easy operation and virtually no maintenancealmost noise free thus does not disturb your work country wide service network our countrywide network of service centers take care of the systemto ensure prompt and quality service our qualified engineers are always ready to do their best technical specifications descriptionunitat – 25l low temp.at – 25h high temp.at – 50l low temp.at 50h high temp.heat output keal/hrkws25,0002925,0002950000585000058hot air temperatureoc8012015080120150process air flow at stp (1.2 kg/m3 air density)m3/hr1750975730350019451450temperature riseoc50801205090120thermal efficiency90% ± 2%fuel consumption (hsd)kg/hr2.755.5electric supply415 ± 6%. 50 hz ± 3%, 3 phase, 4 wireelectric loadkw1.752.5temperature controlautomaticdimensions (mm)w9151050l15001500h20002300

clients can avail from us, highly efficient 3 pass liquid phase thermic fluid heater. Our 3 pass liquid phase thermic fluid heater is a compact, rigid, noiseless & fully automatic hot air heater / furnace. These 3 pass liquid phase thermic fluid heaters have user- friendly features and are very easy to operate. our 3 pass liquid phase thermic fluid heaters operate automatically on pre set temperature. applications chemicals : reaction kettles, evaporators, distillation columns, tray dryerstextile : polymerizers, curing machines stenters, winches, dryers etcplastic & rubber : bounding and curing vulcanizing-heating for extrusion presses impregnation process moulding and laminating pressingtimber : veneering presses plywood manufacture and timber dryingmetal finishing : heating plating picking anodising and photphating bates, drying ovens degreasing plants food industry: refining process, fruit & vegetable canning, dehydrationpackaging : rotogravure, flexography, metallsing etcrubber : hydraulic presses chambersconfectionery : dryers, mixersmiscellaneous : insulation drying sealing batteries, perfume manufacture and printing ink drying, heating of bulk storage tanks, bitumen heating spaces heatingbesides the above, thermic fluid heater can also be used for a number of other applications designed and constructionil burner & electricals the internal combustion chamber is used to accommodate concentric helical tube machine wound coil, (fabricated out of erw) boiler tube as bs 3059) this coil is placed in a double shell of mild steel construction. This of design helps in economizing the space and simultaneously ensures optimum rate of heat release due to elimination of extensive use of refractory, it permits rapit start up and operational and maintenance flexibility. combustion a fuel automising pressure - jet burner fitted with fuel oil nozzle from "monarch" (usa) is placed vertically download for combustion a drynamically balanced blower fan pushes combustion air through the annular space between the inner and outer shell where air is pre-heated for efficient combustion and higher efficiency the air acts as an effective thermal insulator eliminating the need for conventional insulation near the tip of burner air is swirled through astainless steel diffuser plate and mixes with automised fuel which achieve total combustion in the furnace. burner and fuel system from fuel tank the oil goes to a fuel filter then into a fuel pump through the fuel pump it is passed into an electrically heated oil pre-heating tank (this is in case of l.d.o) and them forced to burner the thermic fluid heater is supplied with pressure-jet burner of highly compact rugged and simple design the burner is fully automatic in operation and switches on and off as per the process heat requirements. no steam - no indian boiler regulations the amco therm is outside the purview of indian boiler regulations since no steam is generated no statutory inspections are required eliminating the need for a shut-down of the process there is no need for a separate boiler houses or even a qualified boiler attendant. no corrosion no scale formation the heat transfer fluids used in the anco therm thermic fluids heater are of mineral origin and do not contain any dissolved solids which cause corrosion of scale formation which is prevalent in case of steam boiler because of this thermal efficiency remains uniformly high, and this is sustained over a long period. instrumentation control and safeties amco therm is a fully automatic thermic fluid heater fitted with safety devices like high fluid temperature switch pressure switch low level switch in expansion tank spring loaded safety valve high stack temperature switch, flame sensor low fuel oil temperature switch and circulating pump motor interlock. The unblended operation is possible due to efficient design and highly reliable instruments from manufacturers like : landis & gyr (germany) monarch (usa) danfoss (denmark),larsen & slemen , ngef, crompton, kirioskar saizer, finolex, bells, indfoss ,tata/ti,toubro,k.s.b -auro etc. Adust proof pre wired control panel housing mcbs, overload relay ,contractors safety alarms, temperature controllers, temperature indicator and sequence controller has audio-visual alarms for abnormal working conditions. after sales services each thermic fluid heater is rigidly tested before delivery and commissioned by our trained engineers we have efficientand attentive after-sale-services network including servicing and supply of spare parts. All our general spares are readily available with us and local market also. technical specifications detailsmodelat – 0.5at – 01at-0.2at-04at-06at-10at-15heat output kcal/hrs500001,00,0002,00,0004,00,0006,00,00010,00,00015,00,000fuel consumption (approx.)l.d.okg/hrs5.711.422.945.768.6114.4171.6h.s.d.5.611.2522.54567.6112.7169.1thermal efficiency87% + 1% on nett calorific value (ncv)electrical supply415 + 6% 560 hz + 3%, ac – 3 phase, 4 wirecirculating pump motorhp2.05.07.512.515.020.025.0kw1.53.75.59.411.2515.018.8fuel pump motorhp♦♦♦♦0.51.01.0burner motorhp0.51.02.03.05.010.015.0kw0.370.751.52.23.73.711.0burner controlon – off0-50% on-off 60 – 100% low high0-33% on-off 33-100% mcoulationtotal connected loadkw2.05.08.012.015.023.030.75dry height (approx.)kg75093013001350300036004100overall dimensions (meters)length1.21.501.591.852.142.403.0width0.790.841.031.831.902.302.50height0.792.102.262.803.263.504.30 note fuel oil consumption is based on nett calorific value of (hsd)10200 kcal/kg ldo 10050 kcal/kgwe reserve the right to change any specification without prior notice
