 waterproof Die cast Tap off/ Splitters meet the requirement of CATV network for branching off and splitting the RF signal. FEATURES Linearity : + 0.5 dB Zinc alloy housing Many power pass options 5 ~ 1000 MHz Freq. response No rust 10 Amp Power Pass

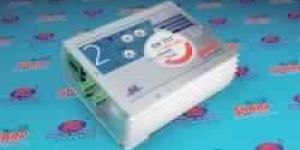

Cable operators having two fiber optic connections can use 2 Fiber Node OX 757 for Automatic Selection of the second (secondary) Fiber Optic Connection in case of failure of First (primary) connection. FEATURES Changes over to secondary signal if the optic signal drops below -11dBm Switches back to primary signal if its level improves above -10dBm Selection between Primary & RF also possible Digital display of optic input signal separate gain control for Each fiber optic input Control room application

SFP (GEPON-i) are optical transceiver (Transmitter cum Receiver) with built in 1GEPON ONU. They are pluggable into EPON slots of Sharp VisionEdge Optical Line Terminal for interface with Ethernet switches, routers & ONU in the network. FEATURES 1G EPON ONU 1G EPON optical interface Built in WDM of 1490/1310nm Single mode Single fiber bi-directional SC receptable Data rate: 1.25 GBPS Distance: 20Km+ Wavelength: TX : 1490nm, RX : 1310nm Receiver sensitivity: -28 dBm (IEEE8023ah standard)

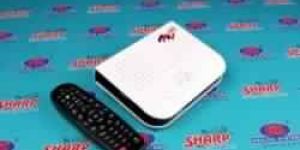

With pre-integrated middleware, the solution is ready to provide you with returns from the initial phase of Set top box seeding. Very sensitive to signal and can accept very low level signal as well. H.264 (MPEG4) MPEG2, SD DVB-C compliant,More than 800 channels TV & Radio programmable, USB 2.0 port with PVR Ready & Time Shift,EPG & DVB Teletext & DVB subtitles

With pre-integrated middleware, the solution is ready to provide you with returns from the initial phase of Set top box seeding. Very sensitive to signal and can accept very low level signal as well. FEATURES • H.264 (MPEG4) / MPEG2, SD DVB-C compliant• More than 800 channels TV & Radio programmable• USB 2.0 port with PVR Ready & Time Shift• EPG & DVB Teletext & DVB subtitles• Auto search & Network search• Favourite, Add, Delete channels• Parental lock• User friendly interface• Software upgrade through  USB & OTA• Last Channel Recall

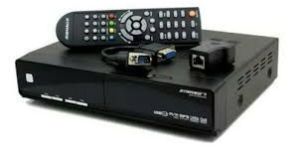

Hybrid platform for MSo's looking for increased revenue on the seeded STB's. A Customized solution for every MSO can be provided on this hybrid platform making DVB-C and OTT available on the same product. HD MPEG4 H.264MPEG2 DVBC compliant OTT functions enabled optional, Interactive applications, Interactive service applications, Programming can be based on Linux & HTML, Browser support optional, USB 2.0 port with PVR Ready & Time shif.

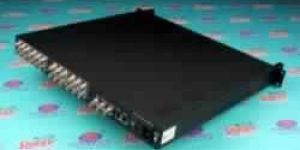

FEATURES Supports MPEG-2 video format, and advanced video pre-treatment Support MPEG-1 Layer2, MPEG2-AAC and AC3 audio format 8 CVBS video input, 8 pairs of unbalance stereo audio input Multiplex 1 ASI input Supports PAL, NTSC SD signal Support D1, HD1, 2/3D1, 3/4D1 resolution Supports IP output, 1xMPTS & 8xSPTS output over UDP Keyboard and LCD operation Support SNMP/NMS management

SAW Filter Modulator AS 616 is a high stability modulator with good picture & sound quality. AS 616 has a PLL synthesized channel selection due to which it meets the stability requirement of International standards. The use of high precision SAW filter & WEB Filters gives accurate side band rejection,Better Freq. Stability,19 inch rack mounted,Loop through AC power,All 106 channels available

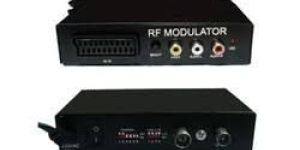

RF Modulator AS 929 is used for converting Audio, Video signal to RF for giving input to TV sets which do not have Audio + Video ports.Provides RF output to old TV sets without AV ports ,Supports Set top Box with RF Output

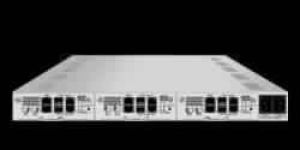

FEATURES 1 GE input, RJ45interface or SFP Supports up to 256 channels TS over UDP/RTP, MPTS or SPTS input Supports unicast and multicast, supports IGMP v2\v3 Max 840Mbps for all input Supports re-multiplexing and MPTS/SPTS multiplexing Supports accurate PCR adjusting Supports PID filtering, remapping and PSI/SI editing Supports up to 180 PIDS remapping per channel Support DVB general scrambling system(ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197   Support multiplexed or scrambled TS over UDP/RTP output  8 adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B/C         Supports symbol rate 5.0~9.0Msps, 1Ksps stepping Supports constellation: 16QAM/32QAM/64QAM/128QAM/256QAM Supports RS(204,188) encoding RF output frequency range: 30~860Mhz, 1Khz stepping RF output level: -16~0dbm(per QAM carrier), 0.5db stepping Excellent RF performance, MER≥40db Support NMS/SNMP Modular design,1U chassis support 3 modules , 4U chassis support 12 modules

CATV Power supply DX models are specially designed to give full current with an automatic short circuit protection. An Ampere meter indicates the output current. Many output of power supply help in dividing the current at the source itself. Power Inserter : The use of external power inserter helps in avoiding hum interface in RF Signals. This is an essential requirement for large CATV networks. FEATURES Short circuit alarm indicator Continuous current indication Automatic short circuit cut-off Suitable for large CATV networks Freq. 5 ~ 860 MHz & high linearity External power inserter to avoid Hum interface Automatic power restoring circuit - after removing short circuit

Country of Origin : India

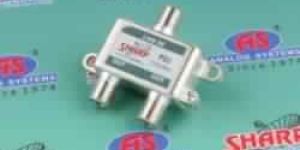

Power Divider are used for splitting (dividing) the IF signal from LNB for feeding signal to satellite receivers. They are fully shielded with Low insertion loss, High isolation & Flat response for distribution of Satelite signal. FEATURES Frequency: 900 ~ 2400 MHz All port power pass

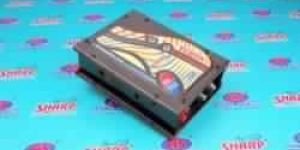

AS 1111 / AS 1010 & SHAKTI are Powder Coated Trunk Line hybrid amplifiers used in Trunk and branch lines specially designed to serve the needs of CATV systems with long trunk cables. They incorporate good quality hybrid IC module to obtain better features. FEATURES - Double output- Good level flatness- Mains cum powerpass- Powder coated housing- PP voltage selection LED- Separate IN & OUT fuses- 106 Ch. Loading capacity- 30 dB gain (40 dB optional)- High voltage surge protection- Output level: 103dBµV- Slope control: 20dB variable - Flatness :+ 0.75dB

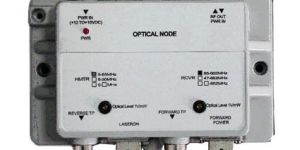

OX 752 & OX 755 are high quality Nodes with rust proof metal housing. There is a four LED optic level display for ease of system maintainance. FEATURES High quality nodes Frequency 40 ~ 1000 MHz Good sensitivity of -11dBm RF O/P 110 dBµV at 0 dBm optic I/P High voltage surge protection LED optic level display

PLC Splitters are steel tube bare fiber splitters used to distribute & combine Optical Signals. They are manufactured with "Precision Aligning Process" to obtain Optical output uniformity. They provide a low cost optical signal distribution network to obtain 1:64 or 1:32 splits for providing connection to as many devices.

AGC (Automatic Gain Control) Node which are useful for franchise cable operators who get OFC (Optic Fiber Cable) connection from MSO. Even if the optical signal drops down , the RF output level after AGC Node will remain constant. High sensitivity: -11 dBm, Good Flatness: + 0.75 dB, Power pass voltage: 30 ~ 60 VAC, Mains supply: 220 VAC + 10%, 50 Hz.

Mega Fast Ethernet GEPON-i ONU. It is most popular for FTTH deployments. It's 4 Mega Fast Ethernet ports in one Unit can be used for multiple application: Port-1 for W-Fi Router Port-2 for LAN (or directly to PC) Port-3 for IPTV / STB Port-4 for CCTV IP Camera (Note: Any port can be used for any above of the suggested applications)   FEATURES Triple play for business towers, hotels & resorts 4 * 10/100 Base-T port plug and play Low power consumption Supports data encryption, group broadcasting, VLAN separation Dynamic bandwidth allocation (DBA) Support ONU Auto-discovery, Auto configure, Auto update Supports port to port isolation between 4 ports ONU : 10/100 Base-T  Ethernet switch: Provde power to four connected devices POE function: Delivers data & accepts DC power on its 4 ports from 'PACER' located at homes(Sharp Vision recommended  the use of PACER in network for power insertion in data cable Cat-6) Accepts DC power & ethernet signal from all 4 ports Compatible with PACER to insert DC power & data through Cat-5/Cat-6 cable.

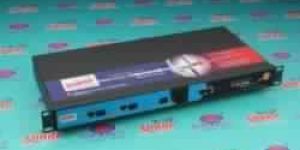

Edge Optical Line Terminal (OLT) are located at MSO/LCO Head End and transmits data at 1490nm & receives at 1310nm wavelength. This signal passes through Splitters and can serve 64 customers upto a distance of 20km with one of its ports. Sharp Vision Edge Optical Line Terminal (OLT) incorporate GPON-i technology & have many advance feature, for example - Network profile can be made for user identification and the bandwidth allocation for individual identified ONU. Edge-OLT's GEPON-i Functions: Conversion of ISP signal to Fiber Optic Signal used in PON systems at ultra high rate with auto refresh. Coordinating the multiplexing between the conversion devices that is ONU (at customer's premises). Bandwidth allocation & management for each connected ONU's with a single click. Control over all connection parameters - like enabling/disabling of ONU, data speed decrease /increase of ONU. Web Interface for easy configuration. Enhanced monitoring system. FEATURES   Advanced Security Protocols L3 Routing capability Algorithm for Automated Bandwidth Management Plug & Play - Auto connect /Auto discovery of ONU SNMP Software provided IU height is 19" rack mountable SNMP Support for 3rd party like MRTG & Cacti 3rd party Sys Log Server Support

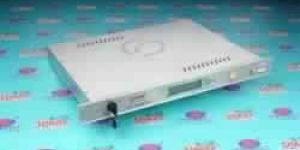

Sharp Vision Optic transmitters are based on DFB Technology for transmission of optic signal at 1310nm & 1550nm for Multi Channel CATV Transmission. They are most suitable for HFC networks as they economize and optimize the Broad Band Network and increase reliability and stability. The DFB technology along with RF pre-distortion circuit have been incorporated to achieve excellent C/N performance -Anecessity for Cable TV network. Sharp Vision Transmitters incorporate automatic power control coupled with temperature stabilization provided by a thermo electric cooler, which ensures maximum performance and Longer Laser Module Life. FEATURES Self Protecting Freq. 47~860 MHz AGC & High Linearity Excellent C/N, CSO & CTB High Quality DFB Fresh Laser SMPS (110 ~ 260 VAC, 50 Hz) Advanced RF Pre-distortion Circuit Microprocessor Controls Laser Parameters

PON Meter simultaneously measures Upstream signal of 1310nm & Downstream signal of 1490nm/1550nm. It has the capacity to store 100 data points in the memory. Our PON Meter has a extended battery life of 36 hours and comes with a deep discharge protection to protect the stored memory. FEATURES Simultaneous mesurement of Upstream (1310nm) & Downstream (1490/1550nm) Signals Data storage upto 100 locations Optional PC link download capability 36 Hours battery life Measurement range: 1310nm: +10 to -35dBm                                           1490nm: +10 to -50dBm                                            1550nm: +25 to -45dBm Accuracy : +0.5dBm Pass through insertion loss:

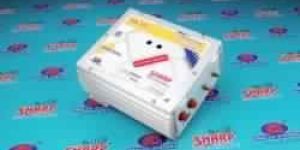

 Optic Node converts even weak Optic signals to a high quality RF signal. LED BAR Optic Level Display has been provided for ease of system maintenance. They are best suitable for Analog as well as Digital transmission to maintain BER, MER characteristics. FEATURES     Frequency 40 ~ 1000 MHz     Optical Wavelength   1290 ~ 1600 nm     Flatness ±0.75 dB     LED Bar Display for Optic Signal Level     High C/N, CSO & CTB Characteristics Inward Extruded     Aluminium Channels for Maximum Heat Dissipation     High Voltage Surge Protection

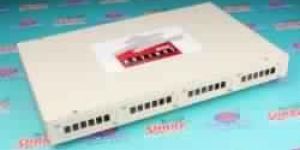

Optic Control Panel (OCP) is used in Control Room for placing patch cords, couplers so that branching out of fiber signal (dBm) can be designed as per the requirement of MSO. FEATURES Splice trays for I/P & O/P fiber branching Can place Couplers, Patch Cords and Protection sleeves   Accessories provided: Protection sleeves & Numbering sleeves Adapters at extra cost

Cable operators getting optic signal from a MSO can use Node Cum Transmitter for converting optic signal ( 0 to -9dBm) into 10 dBm optic signal & RF signal for local distribution. It is 3 in 1. It is slightly hold. FEATURES RF Frequency Range; 40 ~ 860 MHz Optical wavelength : 1290 ~ 1600 nm Output level variation : 0 ~ 20 dB Good flatness : +  0.75 dB Mains power supply: 220VAC +  10%, 50 Hz Power pass voltage: 30 / 40 / 50 / 60 VAC Low distortions: CTB -65 dBc & CSO -60 dBc Optical wave length (output): 1310 nm MODELS   AGC 765 with 10dBm optic power

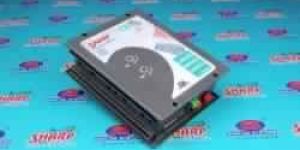

Node Cum Supply is a node with RF output coming out having 60V/2Amp supply. This supply is used for driving amplifiers by providing RF signal & PP voltage. FEATURES Provides 60V power supply at RF output ports Fuse 1 & 2 can Cut Out Power Supply at RF ports Built in power inserter Short circuit protection No buzzer
