Analytical Instruments Consortium Kalkaji, Delhi

In modern wine and spirits processing operations, reliable and accurate analysis solutions are necessary to provide customers with products of highest and - what is most important - consistent quality. In order to be most competitive in the world market, consistent high yields, top quality and low production costs are the objectives that need to be achieved. Designed as a modular system, the SpectraAlyzer® wine & spirits solution presents the analytical results of these major quality parameters (e.g. wine: ethanol, tot. sugars, tot. acidity, pH, organic acids and optical density and many others within 45 seconds. There is no need to manually condition the sample and extra reagents do not have to be used. This analyzer solution provides highly accurate quality control parameters at no extra cost. As a stand alone system the analyzer solution can be operated very easily and intuitively – even close to the production line. The rugged construction and unique optical samplereference setup ensures reliable operation in environments with fluctuating temperatures, vibration and dust. The SpectraAlyzer® wine & spirits comes with many ready to use calibrations and a powerful software package to facilitate calibration fine tuning and extensive and automated logging as well as database storage of the analytical results on the analyzer, within the company intranet andor the internet.

Fast and Compact Near Infra Red Analyzer for Applications with Non Homogeneous Products such as Protein, Fat, Moisture Determination in Whole Grain, Corn Rice, Cocoa-beans, Peas, Soya-beans and much more.

TMS Touch used for Texture analysis are an important factor affecting processing and handling, influencing habits, and affecting shelf-life and consumer acceptance of products. The TMS-2000 is a research-grade texture profile analysis measurement system comprised of the TP-6 Texture Press combined with a Windows PC software package. The TMS-Pro is the "flagship" of the FTC line of food testing texture analysis instruments. When the application calls for precise force, position and speed control, the TMS-Pro is unsurpassed.

Power : 15 Amps 120 Volt AC, 60 cycle

Dimensions : 19 x 20 x 34 in / 48 x 51 x 86 cm

Weight : 125 lbs / 56 kg

MWave-5000 multifunctional microwave chemistry workstation, integrating microwave synthesis, distillation, concentration, pressurized or decompressive reaction and low temperature microwave reaction together, is a multipurpose workstation for microwave chemistry researches,It is capable of working with external vacuump pump, low-temperature circulation cooling system and other commonly-used auxiliary equipment for chemical reactions, it is a fully functional, convenient and modern chemical experimental instrument,It has three reaction conditions: normal pressure, under pressure and decompression,This product has pressurized reaction vessels with different volumns, and it can get real-time reaction temperature and pressure simultaneously. The maximum volume of pressurized vessel is 1L.

In temperature control made, microwave power realizes automatic variable frequency control with the change of preset temperature and time,heating rate can be accurately fed back and adjusted,and non-pulse continuous microwave heating mode is adopted;uniques safe mode of fixed microwave power and time control is favorable for establishing microwave efficacy evaluation system;Immersed ultrasonic working probe has continuously adjus and intable ultrasonic power and self-check and alarm function;It's convenient to randomly combine or separately use microwave,ultrasonic wave and ultraviolet irradiation via an individualized system work platform

1000W delivered power in 10w increments is dynamically adjusted between 0-1000w based on temperature of reaction,Advance infrared temperature sensor installed in the side wall of the cavity monitors and controls the temperature of reaction , maximum controllable temperature 250°C (optional 500°C OR 900°C),Both mechanical and magnetic stirring device, stirring speed can be tuned and monitored,Standard interface for various reaction flasks (from 20ml to 100ml)

The quartz digestion vessel enables the digestion process to be visible,Initiative wireless remote video monitoring system, together with quartz vessels, makes the reaction be seen clearly at a glance. Pictures and videos can be taken during the entire process,500 ml ultra-large digestion vessel meets the special requirements for the digestion of samples of up to 10 grams,Sineo’s patented safety bolt design eliminates the need for explosion-proof membranes and other costly consumables,The aerospace composite fiber outer vessel ensures the highest level of vessel security

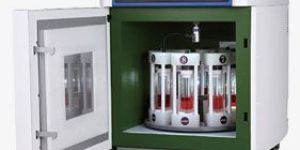

The Microwave DigestionExtraction System Model: MDS-6G is a high performance microwave lab station for rapid sample preparation of trace elements for AAS, ICP, ICP-MS analysis,Continuous Microwave Power, Non-pulsed Power Supply,Two Pages Crisp Monitor to Display both Reaction Data (Pressure, Temperature, Time, Microwave Power and Working Steps etc.) and accumulating Curves of Temperature & Pressure inside Reaction Vessel.

Satisfy the requirements of different samples' digestionextraction processing;Exclusive patented multifunctional safety bolt design, instead of explosion-proof membrane and other consumables;Aerospace composite fiber outer vessel-the highest level of security measures;Connected to and controlled by computer, achieving secure remote operation, and unlimited program storage database;Small volume VS big chamber, which is advance in industrial design and provides perfect experience;

The SpectraAlyzer grain is a Near-InfraRed spectrometer which is dedicated to analyze the composition of samples using the near infrared absorbance characteristics of the sample spectra. It is suitable for the compositional analysis of a wide variety of food products like grains, cereals, oil seeds and flour. All possible parameters of e.g. grain products, such as protein, moisture, oil, ash, hardness and water absorption can be analyzed simultaneously. The sample is top filled directly into the sample cell of the SpectraAlyzer grain, there is no need for grinding or other sample preparation at all. The sample will be fed through the sample chamber via a robust feeding device and automatically discharged. In order to analyze powder samples e.g. wheat flour an optional Flour Module is as accessory available. Each analyzer can be fitted with a Test Weight Module (Bushel weight, hectoliter weight) to determine the volume to weight ratio of the sample. An automatic path length adjustment enables the user to quickly analyse a multitude of whole grain and oil seed samples.

In modern food processing operations, reliable and accurate analysis solutions are necessary to provide customers with products of highest and - what is most important – consistent quality. In order to be most competitive in the world market, consistent high yields, top quality and low production costs are the objectives that need to be achieved. Designed as a modular system, the SpectraAlyzer® food solution presents the quantitative analytical results of major quality parameters (e.g. moisture, protein, fat, sugars, starch, acidity, salt, ash) and many others within 45 seconds. There is no need to manually condition the sample and extra reagents do not have to be used. This analyzer solution provides highly accurate quality control parameters at no extra cost. As a stand alone system the SpectraAlyzer® food can be operated very easily and intuitively – even close to the production line. The rugged construction and unique optical samplereference setup ensures reliable operation in environments with fluctuating temperatures, vibration and dust.

PIEZO CRYSTAL SENSOR MONITORS AND CONTROLS PRESSURE UP TO 8MPa (1200psi) IN A REFERENCE VESSEL,ADVANCE TEMPERATURE SENSORS (OPTICAL FIBRE OR Pt THERMOWELL) MONITOR AND CONTROL TEMPERATURE UPTO 250°C IN A REFERENCE VESSEL,MAXIMUM 1200W MICROWAVE POWER, DYNAMICALLY ADJUSTED BY THE REACTION TEMPERATURE AND PRESSURE FEEDBACKS, IS ABLE TO PROVIDE CONTINUOUS NON -PULSE MICROWAVE HEATING.
