Automatic Bandsaw Machine Dealers in Delhi

• Type: Automatic Bandsaw Machine

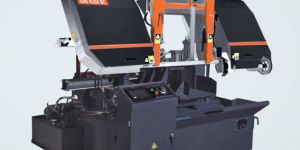

horizontal metal cutting bandsaw machines cobra chb 250 a,chb 320a dc,chb 520a dc is fully automatic horizontal bandsaw machines made for metal industry professionals. It is solid, robust, stable and highly accurate metal cutting band saw machine.this is a very compact and robust vice feed fully automatic bandsaw of modern designideally suited to compliment automatic lathes and cnc turning centres with the supply of accurately cut-off parts, as and when required.it also benefits from having a 45° & 60 degree swivelling. main features cutting dia: 50 to 520 mm fully automatic with plc & touch screen mitre cutting hydraulic powerpack with nachi/eaton/yuken valves materials you can cut tubes, rods, shafts; round, rectangle, square materials. mild steel, stainless steel, non-ferrous metals, die casting/gray casting

We are offering automatic bandsaw machine, tubes, rods, shafts; round, rectangle, square materials. Mild steel, stainless steel, non-ferrous metals, die casting gray casting

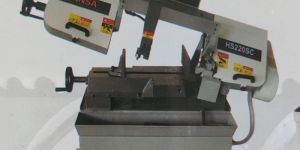

Specifically designed to cut alloy steel material, semi automatic bandsaw machine offered at Cobra Bandsaw Machines is of unmatched quality. Designed with world class technology and high quality raw materials, semi automatic bandsaw machines are perfect for cutting. Frequency controlled saw drive, long life, easy maintenance and industry leading prices are some of the key features of the machines offered by us.

• Round: 150 (mm)
• Square: 150 x 150 (mm)
• Blade Dimension: 2800 x 27 x 0.9mm
• Power Req.: 2 H.P (Hydraulic Drive) 1440 RPM
• KM/H.P: 2.5 H.P (Saw Drive) 1440RPM
• 440VAC, 50Hz: 0.15 H.P (Coolant Pump) 2800RPM

The job is placed for initial cut (first cut). After pushing the 'CYCLE START' button job would be clamped by front vice and rear vice. Blade would come rapidly down (quick approach) up to the job height and then after it would slow down as per cutting feed valve setting (manual setting one time as per requiremet), and the cutting operation continues, after finishing the cutting operation blade would be moved upward up to the set height ( Quick approach sensor) then rear vice would push the job automatically as per its set lenght (lenght counter). Again blade would come down rapidly up to the job height and thten starts cutting and this cycle repeats as per our required number of pieces, set on pieces counter. Multiple indexing is also possible in this cycle for longer job length cutting for more then 350 mm. PLC operated panel would display the no of operation completed. Bundle cutting (more than 2 jobs) facility is available as optional in this type of machine.  • PLC control for all electric & hydraulic functions • Shuttle Type Automatic Job Lenght Feeding • Floating Shuttle vise for handling of bent job • Automatic work height control & fast approach • Power driven Chip removal Wire Brush Assembly • Hydraulic Blade tension • Split main vise for better gripping • Idler Wheel Motion Detector with Blade Stalling & Breakage shut off • Roller Bearing / Carbide wear pad Blade guide system • Bi Metal Bandsaw Blade Optional Accessories :- • Chip Conveyor • A.C. Drive for Infinitely variable speed control • Bundle cutting attachment • Job Roller Stand • Variable Vise pressure for thin walled job • Wire Brush • Bi-metal Bandsaw blade
