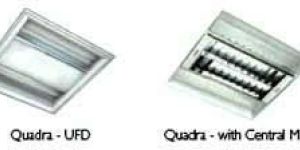

Recessed Luminaire General Description Wing-CDX Quadra meets the diverse needs of the workspace and creates an atmosphere that is encouraging and lively. Wing-CDX Quadra Range For the first time in lighting, Philips introduces a special frame fortifying the luminaire, which redefines and miniaturizes the luminaire size seamlessly integrating the same with modular ceiling systems. Quadra is the range of such luminaires with direct/indirect light distribution and can use the most efficient lamp varieties of 2 X PL-L 36 / 55W, or 4 X TL-5 14 W lamps. It offers a choice of high efficiency 3D OLC optics or UFD optics rendering shadow less lighting. Key Features and their Benefits Frame Special decorative frame with an inherent curved profile which creates a new visual appearance, miniaturizing the light opening. The frame is seamlessly integrated with the modular ceiling system, avoiding abrupt light pockets in the ceiling. Housing A curved shallow housing with highly reflective paint provides more indirect lighting. Extrusions Special aluminium extrusions ensure reliable and error-free mounting of optics and wings as well as help to generate modular luminaire varieties. Optical A choice of high efficiency, low-glare 3D OLC (Three Dimensional Omni directional Luminance Control) Optics which reduce the number of luminaires in the installation, is available as well as a choice of UFD (Uniform Flux Distribution) Optics to create a soothing shadow-less comfortable ambience. Opti Grain The indirect light from the housing falls on the wings with ‘Opti-grain Technology’ to provide diffused refracted light for improved visual comfort. Wings Wide, decorative, polycarbonate, anti-static wings with a robust construction, provide an elegant look, with ease of cleaning. The wings are in Magic Mist or Graphite Grey colors. Lamps The luminaires use energy efficient compact fluorescent lamps of 2 X PL-L 36 / 55W or slim linear fluorescent lamps 4 X TL-5 14W. Range A wide range of luminaire choices are available with visually distinct design options for variety of usage. Application OfficesCorporate AreasSoftware CentresHospitalsCabinsMeeting Room Open Plan Installation Suitable for installation in 600 x 600 modular ceiling systems.

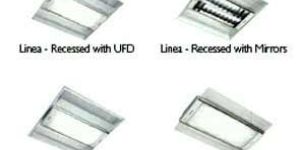

Recessed Luminaire General Description Wing-CDX Linea compliments the decor with its unconventional design and unique play of light. Wing-CDX Linea Range The Linea range of luminaires has a central attachment with decorative end caps, with the possibility of mounting recessed in the false ceiling, protruded and suspended positions. The central attachment comprises of optics as well as wings for diffused lighting. Linea is the range of luminaires with direct/indirect light distribution and is suitable for use with 2 X PL-L 36W compact fluorescent lamp. Key Features and their Benefits Housing A curved shallow housing with highly reflective paint provides more indirect lighting. Extrusions Special aluminium extrusions ensure reliable & error free mounting of optics and wings Optical Technology Most of the Linea range of luminaries are offered with UFD (Uniform Flux Distribution) Optics to create a soothing, shadow-less comfortable ambience. For higher efficiency, Dimensions (mm) the option of using 3D OLC Optics is also provided. Opti Grain Technology The indirect light from the housing falls on the wings with ‘Opti-grain’ Technology to provide diffused refracted light for improved visual comfort. Wings Wide, decorative, polycarbonate, anti-static wings with a robust construction, provide an elegant look, with ease of cleaning. The wings are in Magic Mist or Graphite Grey colors. Lamps These luminaires use energy efficient compact fluorescent lamps of 2 X PL-L 36W. Range A wide range of luminaire choices are available with visually distinct design options for variety of usage. Application OfficesCorporateAreasSoftware CentresHospitalsCabinsMeeting RoomOpen Plan Installation Suitable for installation in 600 x 600 modular ceiling systems

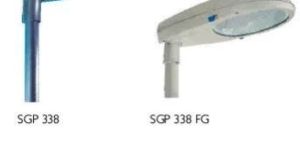

Road Lighting General description Road lighting luminaire suitable for use with High Pressure Sodium Vapour SON-T PLUS / HPI-T PLUS 400W Lamp. Luminaire can also be used with SON-T PLUS / HPI-T PLUS / CDM-TT 250 W lamp and SON-T PLUS / CDM-TT 150W lamps. Features Housing made of LM6 high pressure die-cast aluminium which does not need painting to prevent corrosion of the housing. However paint options are available as an optional feature. Available in choice of colours.All electrical accessories such as energy efficient, low loss, open construction copper ballast, ignitor and power factor improvement capacitor, etc are pre-wired upto the terminal block and mounted on a removable control gear module for ease of maintenance. All electrical connections of the control gear module with the rest of the luminaire are click fix, fool proof and require use of no tools. Control gear compartment opens from top.The lamp compartment consists of electrochemically brightened and anodized, high purity POT reflector with a specially designed ribbed profile for high spacing to mounting height ratio.The lamp compartment consists of a heat resistant toughened, available in options of curved glass & flat glass (FG) which is sealed to the housing. Lamp replacement is by opening the top compartment. This ensures IP66 classification of ingress protection for the lamp compartment.Specially designed pole mounting arrangement facilitates bottom as well as lateral pole mounting.Flexible optics to achieve optimum light distribution to suit different road and installation parameters. Applications Major city roadsHighways and expresswaysJunctions and roundaboutsIndustrial areasCar parks Installation Specially designed spigot enables pole entry dia options from 42mm to 70mm. O.D. Specially designed pole-mounting piece for bottom as well as lateral entry.

Flood Lights General Description Compact study general proposed low wattage floodlight with integral gear, suitable for 1xMHN-TD/CDM-TD 70 W lamp Features Compact and trendy design Pressure die-cast aluminum housing with epoxy-polyester powder coating makes the luminaire withstand environmental conditions for long Aerodynamic design with ergonomic shape makes the luminaire appear elegant and good looking Lamp and gear compartment integrated together provide fast access to lamp as well as gear components to the user Optics :High quality anodized aluminum reflectors specially stitched tooffer two type of optics Rotationally symmetric : Parabolic reflector (PR) type for narrow rotationally symmetric beam. Ideal for highlighting details in architectural lighting application Axially symmetric : Rectangular reflector (R) type for axially symmetric wide beams. Best for flat façade and bill board lighting Housing embossed protractor and bracket with slot makes aiming easy during installation as well as re-aiming at later dates Ergonomic and rugged bracket for mounting on horizontal surfaces, walls, ceilings and for pole mounting Special heat dissipation fins on housing makes it thermally more stable Toughened glass front cover sits over the profiled gasket and is clamped with SS toggles and hinge arrangement to achieve IP65 protection Applications Parks Pathways Gardens Sculptures Structures Architectural flood lighting Bill board lighting Installation Universal mounting bracket allows wall or surface mounting Compliances IP 65 Class I

Flood Lights General Description Underwater luminaire suitable for use with 230V reflector lamp in R30 shell (75W, 100W and 150W in BC execution). When submerged the water head above the glass should not exceed 0.61 meter (2ft). The luminaire is not provided with many mounting arrangements. A provision for loop-in and loop-out has been kept but one gland must be suitably blocked if looping out is not done. Features Compact and corrosion resistant housing made from brass and in natural finishA gasket made of silicon rubber between the housing and the glass cover ensuring protection against ingress of water when submergedA glass fixing ring made of brass in natural finish A front cover made of heat resistant toughened clear glass Conforms to IP 67 protection Conforms to relevant IS specifications Applications Swimming pools Water cascades Compliances IP 67 Class I

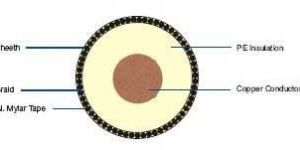

We are one of the leading co-axial TV cables suppliers, incepted in India. Our co-axial TV cables are widely use in cable TV operations, computer net-working etc. We present wide gamut of co-axial TV cables at the most affordable price. Application Used in cable TV operations, Computer net-working etc. Construction Solid annealed bare copper conductor polythelene insulated shielded with polyester backed aluminium tape and additional shielding with fine aluminium braid, jelly flooded, protected with polyester tape wrapping and sheathed with PVC.

Our telephone cables have been commonly spread all over the nation. Our cables provide better communication with any hiss. At top of that, our cables have been approved at international quality checks. Application Cables used for Indoor Telephones, Telephone Exchanges, Satellite Telecommunication Systems, Industrial Plant Communication Systems, EPBAX Systems, Closed Circuit Security Systems, In-House Telephone wiring and various other equipments involving telephones. Standard Cables are generally made as per TEC Specification No. G/WIR-06/02 or as per customer specification. Construction Solid annealed tinned/bare copper conductor, PVC insulated cores suitably colour coded for distinct identification, twisted to form pairs, pairs laid up, PVC sheathed. Armoured Cables are provided with Galvanised steel wire/strip armouring and then sheathed again with PVC. Design / Material Options Conductor : Tinned copper/Bare copper Insulation : PVC / HRPVC / Polythelene Shielding : Over all shielded / Individual pair shielded and over all shielded with polyester backed aluminium tape or fine copper wire braid (Manufactured against customer's orders only for economical runs.) Sheathing : PVC/HRPVC/FRPVC/FRLSPVC/ Polythelene Conductor size Cable : 0.4 / 0.5 / 0.6 / 0.7 / 0.8 / 0.9 mm Configuration : 1p, 2p, 3p, 4p, 5p, 10p, 20p Note: Supplied in 90 meter lengths carton except 3 pairs and above polywrap coils, 270 meters in project packaging. Buyers BSNL, C.DOT, Switching equipment manufacturers, contractors of BSNL and C.DOT, every industrial and commercial establishment, construction industry and many more beside the general dealer marke Salient Features for Telephone Cable Hard grade PVC insulation is used for long life and stable properties of cables. Staggered lays of twisted pairs are used to ensure minimum cross talk. Sizing and processing of conductor and insulated cores is done in precisely controlled manner on automatic modern machines to have optimum values of capacitance, capacitance unbalance, image and cross talk attenuation and characteristic impendence. Shielding is done to protect from outside / inter pair interference as per specific needs.

We are India̢۪s elated switch gears supplier. Our popular electrical switch gears are available in most modern configurations and models. Our electrical switchgears are long lasting as they are imbedded with ultramodern materials. Moreover, these electrical switch gears are priced at affordable rates.

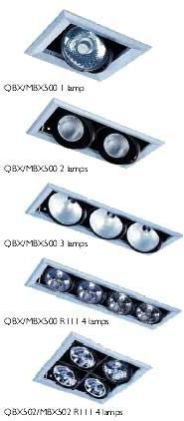

Downlights & Accents General Description Recess mounted adjustable downlight luminaire suitable for use with ceramic metal halide lamps inb CDM-T, CDM-R, CDM-R111 as well as halogen lamps ALUline Pro -111(50 W max) Features Housing made of CRCA sheet steel painted black accommodating all electrical accessories, pre-wired upto the terminal blockScrabble luminiare is available in one, two, three line versions for CDM- T and HAL R 111 lamps. Four lamp in square version is available in HAL R 1111 and CDM-R111 lamps Choice of optics in 12 and 36 available in CDM-T versions Reflector for CDM-T version is made of high grade Al in matt finish with suitable opticsThe frames are available in White or Silver colorCradinac system allows the orientation of 40 in all directionsStainless steel clips and removable ger tray offers ease of maintenance Application Small and independent food/nonfood shopsHyper/Super Markets, Discount Stores, DIY storesHigh – End Fashion ShopsDepartment Stores, Fashion ShopsMuseums and art galleries Installation Designed for recess mounting on false ceilings. The luminaires can be mounted with the help of mounting clamps Compliances IP 20Class I

Flood Lights General Description High effciency low glare asymmetrical floodlighting luminaire suitable for use with High Pressure Tublar Sodium Vapour Lamp 1 x SON-T 1000W, 2 x SON-T400W or Tubular Metal Halide Lamp 1 x HPI-T 1000W, 2 x HPI-T 400W and MHN-LA 2000W Lamp. Features Housing made of die-cast aluminium with black powder-coated finish for sturdiness and excellent corrosion resistance The lamp compartment comprises of electrochemically brightened, high purity, pre-anodized aluminium reflector for long life and superior reflectivity. Outstanding glare suppression is secured by high grade asymmetric optics that achieve maximum intensity at around 60o with accurate beam control and uniform light distribution. Specially suited for critical areas such as airport aprons, sports stadia, junctions with fast, multidirectional traffic, container terminals, ports, etc where there are restrictions on glare control and pollution and limitations on pole locations Heat-resistant toughened front glass fixed to the housing with the help of specially designed stainless steel toggles with specially designed hinging mechanism for quick and easy lamp replacement Hot dip Galvanized MS mounting bracket with calibrated disk for ease of mounting and aiming Heat-resistant long life EPDM/Silicon gasket renders the luminaire a dust tight and jet proofingress protection classification of IP 65 The twin lamp version offers switching facilities that permits tailoring to the user̢۪s needs while allowing energy savings. Rugged all weather construction designed for easy aiming, simple cleaning and speedy maintenance Horizontal mounting for optimum light distribution is 0 recommended with maximum rotational adjustment of 12 from the horizontal * Separate control gear boxes to be used are 1 x ZVX 400/1000 for 1 x SON-T 1000W 1 x ZVX 410/1000for 1 x HPI-T 1000W 2 x ZVX 310/400 for 2 x HPI-T 400W 2 x ZVX 340/400 for 2 x SON-T 400W Application Airport aprons Sports facilities Car parks Industrial areas Multilevel junctions and roundabouts Container terminals Ports Open storage yards Installation Universal mounting bracket allows mounting on head frame, ceiling and wall Compliances IP 65 Class I

Highbay Luminaires General Description High performance decorative highbay & medium bay luminaire with prismatic reflector available in both closed and open versions. This is suitable for use with High Pressure Sodium Vapour, High Pressure Mercury Vapour, Metal Halide, compact fluorescent and ceramic discharge metal halide lamps. The luminaire is compact in size and has options of integral and non-integral control gears. Separate Gear Box to be used for NI Versions. Features Compact integral & nonintegral pressure die-cast aluminum housing powder coated in black, accommodating lamp holder and gear (in integral version).Integral housing is easy to maintain without the use of any tools for its special design of gear compartment having access from sideGear tray inside the gear compartment contains all the electrical accessories viz., ballast, capacitor and ignitor all pre-wired upto terminal blockReflectors are of special translucent polycarbonate with serration to provide prismatic glittering appearance and enhance the ambience with more vertical lighting in the areaTwo sizes, viz., Maxi and Midi have approx 22̢۪ & 16̢۪ diametre and are suitable for 400W and 250W/150W lampsHigh lumen pack compact fluorescent lamps PL-EH type (45W/65W) can be also used with open type versions Applications Discount StoresHypermarketsSuperstoresModern Public BuildingsFashion Outlets Installation Mounting can be done by standard eyebolt with 15mm inside.

Flood Lights General description Compact, sturdy non integral high performance floodlight luminaire suitable for use with High Pressure Sodium Vapour 2 X SON-T 250W / 400W or Metal Halide 2 X HPI-T 250W / 400W Lamp. Features Housing made of pressure die-cast aluminium alloy with low copper content for sturdiness and better corrosion resistance. Trendy profile of the housing ensuring better aesthetics and also lower wind resistance. Powder coated finish with black colour for better environmental protection and aesthetics. The lamp compartment comprises of electrochemically brightened, high purity, pre anodized aluminium reflector for high efficiency, specially profiled to suit area and façade lighting applications. Specially designed lamp support clips ensure correct beam distribution. The front cover comprises of a specially designed heat resistant, toughened curved glass to match the profile of the housing. The front glass is attached to the housing with the help of a pressure die cast frame, hinged from one side and locked to the housing with the help of stainless steel toggles for quick and easy lamp replacement. Heat resistant EPDM/ Silicon gaskets bonded to the front cover renders the luminaire a dust tight and jet proof ingress protection classification of IP65. Specially designed powder coated mounting bracket with graduating disk for ease of mounting and aiming. * The separate control gear boxes to be used are 2 x ZVX 300/250 for HPI-T 250W 2 x ZVX 310/400 for HPI-T 400W 2 x ZVX 330/250 for SON-T 250W 2 x ZVX 340/400 for SON-T 400W Applications Large open areas Parks, junctions, roundabouts and toll plazas Architectural and building façade lighting Sports facilities Railway marshalling yards Ports and container terminals Lighting of industrial and large external storage areas Security lighting Industrial outdoor areas Installation Cable entry via 10mm max O.D. gland. Compliances IP 65 Class I

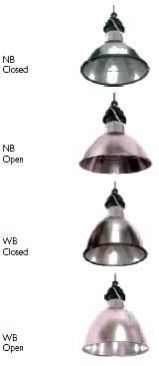

Highbay Luminaires General Description High performance non-integral high-bay and medium-bay luminaire available in both closed and open versions suitable for use with High Pressure Sodium vapour lamps (150 to 400 W), High Pressure Mercury and Metal Halide lamps (250 to 400 W) with a choice of reflectors to suit specific beam requirements. The luminaire is compact in size with stable mounting system. Separate Gear Box to be used. Features Compact pressure die-cast aluminium housing powder-coated in black, accommodating lamp holder and luminaire mounting assembly.The separate control gear box accommodates a ballast, capacitor and ignitor (for SON & HPI version only) all pre-wired upto the terminal block. Applications Aircraft HangersPower PlantsSteel PlantsAutomotive PlantsHeavy Engineering Industries Installation Mounting can be done by standard eyebolt with 15mm inside

General Description Indirect-light column with Die-cast aluminium housing of canopy, supplied with high finish extruded aluminium column (3m) with base flange. Features Decorative Indirect post top luminaireIP 65 ingress protection for dust and jet proofingSuitable for CDM-T 70W metal halide lampExtruded aluminium pole also provided along with post topCorrosion resistant powder paint with chemical protectionRemote integral control gear Application Pathways, parks & lawns, car parks, squares. Installation To be fixed on ground floor with the help of pole box range built-in with pole. Compliances IP 65Class I

City Beautification General Description Wall recessed step light luminaire. Die cast housing, suitable for 2 X PLC 18W, and supplied with suitable recessing box. Features Wall recessed step light suitable for 2 X PL-C18W compact flourescent lampDie-cast aluminium housing with high corrosion resistanceReliable design using SS screws silicon rubber gaskets, and toughened front glass provide IP 65 protectionEffective light usage by high purity aluminium reflectorsRecessing box for the luminaire also available Application Corridors, Pathways & stairs Installation To be mounted recessed in the wall with the help of recessing box. Compliances IP 65Class I

City Beautification General Description Surface mounted wall step light. Die-cast construction and UV stabilised polycarbonate diffuser. Features Surface mounted wall step lightIP 55 dust and water jet proofSuitable for 2 X PL-C18W compact fluorescent lampDie-cast constructionDurable silicon rubber gasket, UV stabilised vandal-proof polycarbonate diffuserDouble cable entry Application Passages, residential, industrial areas, walkways, commercial centres Installation To be mounted on the wall surface Compliances IP 65Class I

City Beautification General Description Wall mounted downlight. Integral unit, die-cast construction, single reflector and toughened glass cover IP 65. Features Wall mounted down lightIP 65 dust and water jet proofSuitable for 1X CDM-T70W ceramic discharge metal halideDie-cast construction with aluminium bottom frame with special anti-glare bafflesDurable silicon rubber gasket, clear toughened glass and corrosion resistant paintIntegral control gear Application Passages, residential, industrial areas, building facade, commercial centres Installation To be mounted on the wall surface Compliances IP 65Class I

City Beautification General Description Decorative gate top / bollard with die-cast construction and UV stabilised clear polycarbonate diffuser. Features Decorative Gate top luminaireIP 55 dust and water jet proofSuitable for 1X SON70W and CDM-ET ceramic discharge Metal Halide lampDie-cast aluminium housing with high corrosion resistanceDurable construction uses SS screws, silicon rubber gasket, and UV stabilised clear PC diffuser Application Residential, commercial, industrial, entrances, city centres, squares Installation Can be mounted on gate top on floor. Compliances IP 55Class I

City Beautification General Description Decorative post top with column. Die-cast aluminium housing supplied with high finish extruded aluminium column (2.5m) with base flange. Features Decorative Post Top with lighting columnIP 55 ingress protection for dust and jet proofingSuitable for 1X SON 70W and CDM-ET ceramic discharge metal halide lampExtruded aluminium lighting column of 2.5mDie-cast aluminium housing construction with high corrosion resistanceDurable construction uses SS screws, silicon rubber gasket, and UV stabilised clear PC diffuser Application Pathways, parks & lawns, car parks, squares. Installation To be fixed on ground floor with the help of pole box range built-in with pole. Compliances IP 55Class I

City Beautification General Description Surface mounted wall step light. Die-cast construction and UV stabilised polycarbonate diffuser. Features Surface mounted wall step lightIP 65 dust and water jet proofSuitable for 2 X PL-C18W compact fluorescent lampDie-cast constructionDourable silicon rubber gasket, UV stabilised vandal-proof polycarbonate diffuserDouble cable entry Application Passages, residential, industrial areas, walkways, commercial centres Installation To be mounted on the wall surface Compliances IP 65Class I

City Beautification General Description Wall mounted up-down light, Integral unit, die cast construction, single reflector and toughened glass cover IP 65. Features Wall mounted up-down lightIP 65 ingress protectionSuitable for 1 X CDM-T70W ceramic discharge Metal HalideDie-cast construction with aluminium top and bottom frame with special anti-glare bafflesEffective light usage by one piece high purity aluminium reflectorDurable silicon rubber gasket, clear toughened glass and corrosion resistant paint Application Passages, residential, industrial areas, building facade, commercial centres Installation To be mounted on the wall surface Compliances IP 65Class I
