Beaker Dyeing Machine Dealers in Delhi

• Capacity: 250 ml
• Brand Name: NTF
• Machine Type: Automatic, Semi-Automatic
• Power Consumption: 220 Volts Single phase , AC Supply
• Beakers: 250 ml
• Medium used for Heating: Glycerin
• Carriage Rotation: 47 rpm
• Minimum Order Quantity: 1 Piece

It is suitable for dying all type of samples of yarn, fabric, & fiber with any type of dyes. The machine is designed in table top model, user friendly, easy to operate and trouble free performance. It’s rotate in 360. with forward and reverse directional changes thus lot of turbulence in the beaker liquor. This in turn leads to uniform & better dying results. Machine is available in fix speed and variable speed model.   Carriage rotates at fixed/variable speed with programmable direction reversal Automation with microprocessor controller with 99 program memory. Outer body powder coated/asses inner chamber, carriage, and beaker stand, made of SS-304 grade material. Jars made SS-316 grade. Flexible beaker carriage vide which, various sizes of beakers can be installed. Auto Cooling facility. Injection dosing system is provided for making time to time addition to the beaker

, Compact and maintenance free Glycerin Bath Beaker Dyeing Machine which is suitable for developing Dyeing Recipe for Polyester, Cotton, Viscose, Acrylic, Silk Yarns, Zipper Tapes, Narrow Fabric, Sewing Threads & any form of fiber or blended Yarn. This machine is of immense use for dyeing plant, processing units, research and development labs, testing labs, textile institutes and dyes manufacturers. The Machine is Equipped with Temperature Controller Microprocessor TPR-14 which controls upto 8 programs with battery backup, Electric Gear Motor, Electric Heater, Heating Cooling Coil, Operator Call & Memory Retention in case of Power Failure. Option of main power control panel with PLC touch inter face he is also available. Glycerine Bath Beaker Dyeing Machine is provided with Human Machine safety interlocks & Sensors for added safety. It is available in various option having no. of beakers like 6, 8 and 10 with different capacity i.e 150 ml. and 250ml. each.

• Voltage: 380V
• Main Motor Power (kW): 5.5
• Speed Ratio of Rolls: 1:1.35
• Max. Roll Nip (mm): 4.5

• • Electric Supply : Single phase 220 Volts, AC Supply • Capacity of Beaker : 250 ml Beaker X 12 Pcs: • Carriage Rotation : 30 rpm. (±2 rpm) • Maximum operating Temperature : 135°C.
• • Maximum rate of heating : 3.5°C/Min. • Controller : Microprocessor Controller(DP 01): • Maximum rate of heating : 3.5°C/Min. • Controller : Microprocessor Controller(DP 01)
• • Heater rating : 3 x 2 KW • Medium used for Heating : Glycerin: • Electrical Supply : Single Phase A.C • Motor : Reversible Synchronous Geared Motor

Features : The machine comprises of  tank, beaker and gear box The beakers are capable of withstanding pressure upto 5.0 Kg/cm square. The machine is complete in stainless steel Ensures a sound free and smooth working. Microprocessor based programmer is provided which ensures temperature control. Promises long life and leak proof service even after many years of use.

• Automatic Grade: Manual
• Application: Sample Dyeing
• Material: Stainless Steel 304
• Machine Type: Automatic
• Phase: Single Phase
• Operating Temp.: Ambient to 100 deg c
• Wash Motor Power: 1/4-2 HP
• Speed: 32 rpm
• Heat Load: 3 x 2.0 KW
• Maximum rate of rise: 60 C/Min

High Temperature High Pressure Beaker Dyeing Machine : Why Beaker Dyeing Machines?The Dyer must exactly know the quality of dyeing he may expect to have on his production machine. The cost of dyes, cloth and labor is too high to permit any experimentation with the Production Machines. The Dyer also wants to experiments with various combinations of recipes to get shades above the ordinary.   Why LABIN Beaker Dyeing Machines? The Dyer wants to transfer the experimental results directly on the Production Machines without any adjustment and this is where LABIN Machines become more important. Our Machines are characterized by their ability to exactly do that. The critical test is to put the same recipe in all the Beakers of the Machine and after dyeing to check up whether the shades in all the beakers are identical. LABIN Machines are sure to pass this test without a shade of doubt. While designing the Beaker Dyeing Machines, we have assumed that in laboratories there are no maintenance personnel and hence the Machines should work with practically no maintenance. Also important point is that high temperature can only be achieved by use of pressure either in dye pot or vessel. Construction: All the Dyeing pots are made from stainless steel 316 and rest of the equipment from stainless steel 304. The Machine is complete with their own stand. Only outer body panel and stand are made from mild steel.

• Maximum Temperature: 135°C
• Electrical Heating Power: from 6 KW to 18 KW
• Time Controller: Digital Control Timer

The Dyer must exactly know the quality of dyeing he may expect to have on his production machine. The cost of dyes, cloth and labour is too high to permit any experimentation with the Production Machines. The Dyer also wants to experiments with various combinations of receipes to get shades above the ordinary.

Specification:Beaker carriage rotating in 360* (25-45RPM) with programmable direction reversal.Flexible beaker carriage suitable to adopt beakers of various capacities (75ml. to 1000ml.) in the same carriage.Automation with microprocessor controller PC-03 having 99 programmer memories. Outside/ inside chamber, beaker carriage and beaker stand of SS304 Beaker -SS 316 material. Auto cooling.

HTHP Beaker Dyeing Machine is ideally suitable for sample dyeing of fabric and yarn at high temperature and pressure. This machine is a versatile, compact and maintenance free apparatus suitable for both Polyester and cotton sample dyeing. In fact it is suitable for dyeing of any fiber in form. The apparatus is of immense use for dyeing and processing units, research/testing labs, and dyes manufacturers.Specification Model :- 12 x 1000ml size Outer M.S duly powder coated, inner S.S with insulation Heating Load – 3 x 2.0 KW Maximum rate of rise – 1.5 C/min Drive – 2HP (25 or 32)rpm geared Motor coupled with rotor shaft Forward / Reverse movement of rotor thru programmer. Beaker / rotor made from S.S 316. Frame, tank and top made from S.S 304 With Microprocessor based temperature Programmer Cooling – through cold water inlet in copper coil Power – 440v, 3 Phase, Neutral, 50 Hz Specifications of HTHP Beaker Dyeing Machine: Standard Model : 12x250 ml., 12x100 ml., 6x500 ml., 12x500 ml. Electric Supply : Single phase 220 Volts, AC Supply Heater Supply : 3000 watt Single Phase Overall dimensions of the Unit : 700 ±05mm (L) x 470±05mm (H) x 370±05mm (W) Capacity of Beaker : 250 ml Beaker X 12 Pcs. Carriage Rotation : At 22 rpm. (±2 rpm) Maximum operating Temperature : 135°C. No. of Heater : 3 x 1500 W Maximum rate of heating: 1.50C Maximum rate of cooling 1.50C ( Water temperature max 250C ) Net Weight of the Unit : 35 Kg. Net Weight of the Beaker (250ml) : 10.980 Kg. Motor : Reversible Synchronous Geared Motor Medium used for Heating : Glycerine Beakers : 12x250 ml., SS-316 grade

We are offering infralab hthp beaker dyeing machine on infrared heating system is the latest product from innolab stable. Keeping to its tradition of innovating new products, infralab is a state-of-the art laboratory equipment for sample dyeing of fibre, yarn and fabric (lab dip) with accurate results.

With Microprocessor based programmer- 12 x 250 ml. Other sizes also available.

Beaker dyeing machine is a versatile, compact and maintenance free apparatus suitable for both Polyster and cotton sample dyeing. Infact it is suitable for dyeing of any fibre in form. The apparatus is of immense use for dyeing and processing units, researchtesting labs, textile engineering institutes and dyes manufacturers.

We are offering beaker dyeing machine. Features:- • used for high temperature dying of fabric and yarn. • used for sample dyeing of yarn fabrics at a max temperature of 98° c. T • made of doubled walled stainless steel technical specification:- • motor: ¼ hp, three phase induction motor, • heaters: 2 kw x 3 heaters, • temperature controller:digital pre-set temperature indicator cum controller • timer: digital type for setting the dying time of the rotor. • models available • 12 beakers x 250ml • 6 beakers x 250ml • 6 beakers x 500ml • 10 beakers x 250ml.

We offer infrared beaker dyeing machine with microprocessor based programmer- 12 x 250 ml. Other sizes also available.

We are offering high pressure beaker dyeing machine model : 250 ml x 12 beakers power requirement : 420v ac, 7kw, 50 hz three phase (single phase optional) motor : ¼ hp, single (or three) phase induction motor heaters : 2 kw x 3 heaters temperature controller : digital pre-set temperature indicator cum controller.

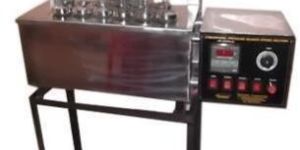

Atmospheric Beaker Dyeing Machine is used for dyeing of sample for polyester, cotton and any form of fiber or blended yarn and fabric. The machine is provided in versatile, maintenance free and a compact model and is of immense use for dyeing, processing, research labs, dyes and chemical manufacturers, Educational Institute etc. It is ideal for carrying out the dyeing trials for yarn under atmospheric conditions. Machine is more suitable for an application where time to time addition is require in the beaker liquor.
