Beam Load Cell Dealers in Delhi

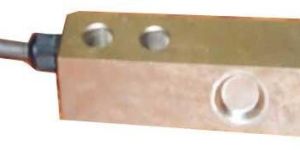

• Type: Shear Beam Load Cell
• Material: PVC
• Output: Analog Sensor
• Model: DE-015
• Ingress Protection: IP64
• Brand: Dynamic equipments
• Capacity: 500 kg

We have gained expertise in delivering a quality assured range of Single Ended Shear Beam Load Cell. All our products are manufactured using excellent quality raw material, which we source from authorized vendors. Widely used for accurate weighing purposes, these products are widely acclaimed for their rustproof construction, excellent working speed, easy handling and low maintenance cost. Further, patrons can avail these modules from us at the most reasonable prices.

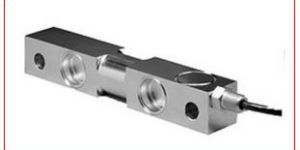

• Type: Double Ended Load Cell
• Material: Alloy Steel
• Color: Available in Many Colors
• Application: Industrial Use
• Power Source: Elecrtric
• Output: 2mv

We conduct diverse quality tests in order to ensure that our entire range is free from defects. Our company is ranked among responsive and responsible Suppliers of Ball Type Double Ended Shear Beam Load cell, engaged in catering to buyers across varied markets. Our double-ended shear beam load sells are suitable for truck scales, railway scales, blending scales, etc.

• Features: 100 Kgf. to 10000 Kgf. Capacities offered., Complete Environmental Protection -IP67 Class.

This is a Strain Gage based, single ended Shear Beam Load Cell designed for Multiple use in low profile platform scales & in tank, bin and hopper weighing systems. It is constructed from high alloy tool Steel for excellent resistance to shock and overload. The cell is sealed against moisture ingression for use in wash-down areas and it is Electroless Nickel plated for corrosion resistance. It is low cost ideal Load Cell Construction-30310-SS for industrial automation applications. This is also provided in Hardnable Stainless Steel - 17-4 PH - Model.

• Country of Origin: India
• Type: Sear Beam
• Material: Alloy Steel
• Certification: NTEP
• Application: Industrial Use
• Color: Silver
• Power Source: Elecrtric
• Ingress Protection: IP69K

ESMWD 100 - Double Ended Shear Beam Load cell unique bridge structure load cell with cup and steel ball mounting. Self-resetting and centering. Widely used in truck scales, railroad scales, hopper scales and various other special scales. EAGLE Double Ended Ball and Cup Load cells surpass Its Competitors in Terms Of Resistance against Side Forces. It Is a Fact That the Major Reason behind Load cell Manufacturing Is the Horizontal Side Forces Created by the Vehicles during Brakes and Sudden Start-UPS. That is why; Scales with Column Type Load cells require Construction Absorbing Side Forces. For medium to high capacity applications, the double ended shear beam offers a number of advantages over other designs. Units like the one shown opposite have built-in jacking bolts which can be used to support the weighing structure during installation thus allowing the live load cells to be fitted just prior to commissioning, avoiding damage.

• Type: Shear Beam Load Cell
• Material: Stainless Steel
• Certification: ISO Certified
• Color: Silver
• Application: Industrial Use
• Power Source: Elecrtric
• Temperature: 60-65deg C
• Automation Grade: 4t
• Brand Name: Fibos

• Type: Single Ended Shear Beam
• Material: Stainless Steel
• Application: Pallet Truck Scales
• Features: Low Profile
• Brand: Sensortronics
• Model: 65023
• Capacity: 125 Kg-10 Ton
• Ingress Protection: IP67
• Load Cell Certifications: OIML, NTEP
• Output Sensitivity(FS): 3.0 +/- 0.08 mV/V
• Combined Error: <= +/- 0.02
• Creep Error (30 minutes): <= +/- 0.017
• Accuracy Class: OIML R60 C3
• Temperature Effect on Zero: <= +/- 0.0010
• Temperature Effect on Output: <= +/- 0.0007
• Zero balance: +/- 1% FS
• Maximum Safe Overload: 150% FS
• Ultimate Safe Overload: 300% FS
• Recommended Excitation Voltage: 10 to 12V DC
• Maximum Excitation Voltage: 15V DC
• Input Resistance: 343 +/- 357 Ohm
• Output Resistance: 349 +/- 355 Ohm
• Insulation resistance at 50V DC: >= 1000 M Ohm
• Compensated Temperature Range: -10 to +40 Deg C
• Operating Temperatue Range: -35 to +65 Deg C
• Load Cell Intervals (nLC)/Divisions: 3000

• Standard Capacities: 10,15,20,30,50,75,100-Tf
• Excitation Voltage: 10 VDC-Maximum 15 VDC
• Normal Output: 3.0 mv/v
• Non - Linearity: <±0.025% FSO
• Hysteresis: <±0.02% FSO
• Non - Repeatability: <±0.01% FSO
• Creep (30 minutes): <±0.03% FSO
• Zero balance: ±1.0% FSO
• Input Resistance: 770±20 Ohms
• Output Resistance: 700±7 Ohms
• Insulation Resistance (50VDC): > 1000 Mega Ohms
• Cable Length (4 Core Screened): 2000 Cm.
• Safe Overload of Related Capacity: 150%
• Ultimate Overload of Rated Capacity: 300%
• Allowable Side Load: 50%
• Side Load Discrimination: 500:1
• Temp Compensated Range: 0-60ºC
• Temprature Effect on Output: <0.0015% FSO /ºC
• Temprature Effect on Zero: <0.0020% FSO/ºC
• Tightening Torque: <0.5mm at FSO
• Finish &: Electronic Nickel Plated tool Steel
• Construction: lp68
• Environmental Protection Class: Truck Scales & Weigh bridge
• Standard Capacities: 10,15,20,30,50,75,100-Tf
• Excitation Voltage: 10 VDC-Maximum 15 VDC
• Normal Output: 3.0 mv/v
• Non - Linearity: <±0.025% FSO
• Hysteresis: <±0.02% FSO
• Non - Repeatability: <±0.01% FSO
• Creep (30 minutes): <±0.03% FSO
• Zero balance: ±1.0% FSO
• Input Resistance: 770±20 Ohms
• Output Resistance: 700±7 Ohms
• Insulation Resistance (50VDC): > 1000 Mega Ohms
• Cable Length (4 Core Screened): 2000 Cm.
• Safe Overload of Related Capacity: 150%
• Ultimate Overload of Rated Capacity: 300%
• Allowable Side Load: 50%
• Side Load Discrimination: 500:1
• Temp Compensated Range: 0-60ºC
• Temprature Effect on Output: <0.0015% FSO /ºC
• Temprature Effect on Zero: <0.0020% FSO/ºC
• Tightening Torque: <0.5mm at FSO
• Finish &: Electronic Nickel Plated tool Steel
• Construction: lp68
• Environmental Protection Class: Truck Scales & Weigh bridge

• Type: Double Ended Shear Beam
• Material: Stainless Steel
• Application: Industrial
• Features: Low cost
• Features: Superior performance, Robust construction, Durability
• Model: VC3500
• Ingress Protection: IP68
• Recommended Excitation Voltage: 5 to 15V DC
• Capacity: 200,000 Kg
• Cable Length: 2-20 m
• Maximum Safe Overload: 150% FS
• Insulation resistance at 50V DC: >= 1000 M Ohm
• Temperature Effect on Zero: +/-0.02% FS/DegC
• Temperature Effect on Output: +/-0.01% FS/DegC
• Zero balance: +/- 1% FS
• Creep Error (30 minutes): +/- 0.03% FS
• Operating Temperatue Range: -20 to +70 Deg C
• Compensated Temperature Range: -10 to +40 Deg C

We are engaged in providing superior quality Shear Beam Load Cell to our wide customer range. These Shear Beam Load Cells are provided to our clients at industry leading prices with customized facilities to ensure that these suit the requirements of the client within affordable price range. These cells are applicable for load weighing and large platform scales Size 0 - 250 Kg to 0-25 Tons Features Durable in natureResistant to shockHighly efficientOverload resistant
