Bonnet Valves Dealers in Delhi

Valves design provides in-line pipe connections for 14” to 1” pipe sizes. Rising stem & Forged body design. Metal-to-Metal seating achieves buddle-tight shut-off, longer stemseal life in abrasive flow, greater durability for repeated onoff cycles and excellent corrosion resistance. Stem sleeve and packing gland materials have been carefully chosen to achieve extended thread cycle life and reduced handle torque. Available in 316 Stainless Steel, Monel, Duplex & other exotic material. Complete material traceability. Also available with material compliance to NACE MR-01-75. BSPP, BSPT, ISO, Socket & Butt Weld etc. connections available on request. Spindle is thread rolled and burnished for smooth operation and long life. Non-rotating hardened (17-4PH) are standard for long service life. Temperature range 100°C to 230°C (400°C with GF option) All valves are 100% factory tested with Nitrogen at 70 Bar or Hydro tested at 1.5 times of working pressure. Dust and thread caps are provided as standard. Threads : N=NPT, G=BSPP, R=BSPT, other option on request.

• BODY: :
• ASTM A 105: TRIMS
• :: 13 CR
• MFG STD: :
• API 602/BS 5352: INSP & TEST STD
• :: API 598/BS 6755
• ENDS: :
• SCREWED TO BSP/ BSPT / NPT     SOCKETWELD TO ANSI B 16.11: HYD – TEST PRESSURE
• :: BODY : 3000 Psig (211 Kg/Cm2)    SEAT : 2000 Psig (140 Kg/Cm2)

• SKU Code: SANT SBM 148
• Mfr Part No.: SANT SBM14
• HSN Code: 8481
• Brand Name: SANT
• Categories: Globe Valve
• Body: Bronze
• Test Pressure: 600 Psig
• Pressure Rating (PN): PN 25
• End Connections: Screwed female threads to IS:554 Parallel (ISI Marked)

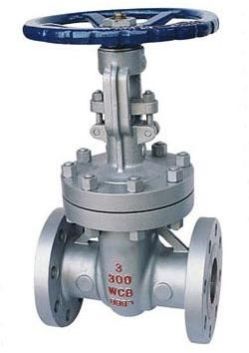

Flowgain Valves offer various range of Industrial Valves like Gate valves, Globe Valves & Check Valves in Bolted Bonnet. Our Valves are supplying to reputed industries like Power & Plant, Airports and other Engineering Sector. The Gate/Globe & Check Valves are in bolted bonnet construction flanged/socket connection and available in various pressure classes from 150 to 300, in a variety of materials and end-connections.   Bonnet construction in a gate valve is pressure seal bonnet. Gate valves may have flanged ends which are drilled according to pipeline compatible flange dimensional standards. Gate valves are typically constructed from cast iron, cast carbon steel, gun metal, stainless steel, forged steels.   Important Features Uniform and precision casting and machining for body and bonnet. Body parts are casted and machined in straight direction without recesses to counter resistance to flow, turbulence and erosion. Guide slots in the wedge together with body and close contact with stem provide better contact and smooth operation. Welded seat ring eliminate problem of leakage due to path between seat ring and body. One-piece construction for stem provide long service life, smoother operatio

L&T Valves manufactures a wide variety of Gate, Globe & Check Valves in bolted-bonnet design. The valves are approved by the global majors in oil & gas and power and have a reputation for reliable performance in critical services, across the globe. Valves in bolted bonnet construction are available in pressure classes from 150 to 2500, in a variety of materials and end-connections. Gate Valves API 600/ISO 10434 2" to 72" ASME class 150 to 2500 Salient Features : Body and bonnet - Cast with uniform sections, precision machined. Body : Straight through port without recesses except in the seat area - Minimum resistance to flow, turbulence and erosion. Flex wedge: Guide slots in the wedge engage with integral guide ribs in the body, Stem-to-wedge contact close to wedge centre - Better sealing, smoother operation. Seal-welded seat ring - Eliminates leakage path between seat ring and body, does not loosen up due to temperature fluctuations or vibration. Stem - One-piece construction with forged T-head - Long service life, smoother operation. Globe Valves BS 1873 2" to 24" ASME 150 to 2500 Salient Features : Body and Bonnet - Cast with uniform sections, precision machined. In-situ hard-faced body seat - Eliminates leakage path between seat ring and body. Guided plug-type disc, Free-floating stem-disc connection - Uniform seating. Check Valves BS 1868 2" to 36" ASME 150 to 2500 Salient Features: Body and Bonnet - Cast with uniform sections, precision machined. Body : Permits full swing of disc on downstream side - Lower flow resistance and disc erosion. Disc : Internally-hinged - No opening on the body, higher integrity. Disc secured to hinge using lock nut and pin. Disc free to rotate to avoid localized wear.

We are offering bolted bonnet. 1,full port,floating or trunnion mounte type 2,bolted bonnet 3,blow out proof stem 4,fire durable and anti static safety 5,structure improve on api 6,opening and closing position 7,availible with wormgear operator 8,flanged

Bronze Union Bonnet Wheel Valve, bath tap, Bronze Fusible Plug, Shower

WJ Flanged Ends to BS 10 Table 'F' Gun Metal Union Bonnet Wheel Valve
