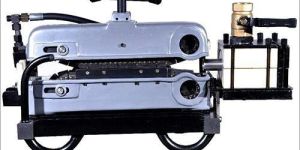

Cable Blowing Machine Dealers in Delhi

cable blowing machine

Get Price Quote

• Diameter: 0 up to 25mm
• Speed: 0 – 90 m/min

The Cable blowing machine comprising of an air box, Cable pusher and Hydraulic Power Pack has been designed to provide an effective and safe method of fiber optic cable installation. The system installs fiber optic cable of 8 – 32 mm overall diameter at up to 90mmin into pre-installed ducts, employing the viscous drag compressed air principle. The compressed air is fed into the duct via a venturi principle, and the hydraulically powered cable feed system controls the fiber optic cable. The optical fiber cable blowing system comes mounted on a light weight Frame for ease of site maneuverability and is powered by a hydraulic supply system. The unit is supplied with a 1-12”BSP for connecting air supply hose (not supplied). The air supply hose should be 25mm (min) bore or more. Adjustable speed control for drive belts (Through Speed control valve mounted on Pusher unit & Pressure Regulator Valve mounted on Power Pack).

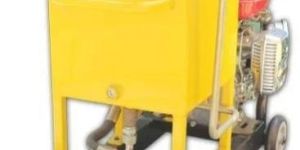

OFC Cable Blowing Machine

Get Price Quote

• Warranty: 1 year
• Usage/Application: Fiber optic cable installation
• Capacity: 35 L
• Machine Type: Hydraulic
• Model Name/Number: ST-CBM
• Operating Pressure: 100 Bar
• Duct size: 20 - 50 mm O.D PLB
• Air Hose Bore: 25 mm (1") or more
• Pushing Speed: 0 - 90 m/min
• Pushing Force: 0 - 100 kg
• Cable size: 10 - 22 mm OD

cable blowing machine

181,000 Per Piece

• Power: 1-3kw
• Automation Grade: Manual,Semi-Automatic
• Warranty: 1 Year
• Phase: 1Phase
• Capacity: 8 to 21mm
• Design: Standard
• Power Consumption: 7.5 HP
• Machine Type: Semi-Automatic
• Model Number: CBM 288

cable blowing machine

220,000 Per Set

OFC Cable Blowing Machine.

cable blowing machine

90,000 Per Units

• Phase: Single Phase
• Warranty: 1 Year
• Voltage: 280 V
• Automation Grade: Semi Automatic
• Country of Origin: Made in India
• Usage/Application: Industrial
• Frequency: 50-60 Hz
• Maximum Speed: 60 m/min
• Maximum Air Pressure: 12 Bar
• Material: Mild Steel
• Finish: Color Coated
• Power Source: Electric
• Maximum Cable Diameter: 32 mm
• Motor Power: 1.5 kW

Pneumatic Cable Blowing Machine

Get Price Quote

1 Set (MOQ)

• Color: Black
• Cable Size: 05mm To 22mm
• Air Consumption: 8 - 9 (cfm)
• Nozzle Size: 1 mm
• Body Material: Mild Steel
• Usage/Application: Blowing

cable blowing machine

Get Price Quote

cable blowing machine, Cutter Grinder, grinder tool, Milling Machine

cable blowing machine

Get Price Quote

cable blowing machine, cable installation products
