Carlin Combustion Technology, In Delhi

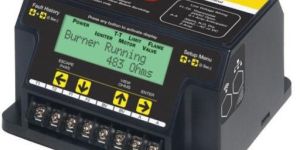

Features & Benefits • Universal Replacement for virtually any oil primary on the market • On-Board LCD Screen – no special tool needed • Fully Programmable Settings • 32 Cycle Fault History • Alarm Contacts • Communications Port • Serviceman Reset Protection • Blocked Vent Protection • Built-in Pump Prime • Recessed Spade Connectors • Provides CAD Cell Reading in OHMS

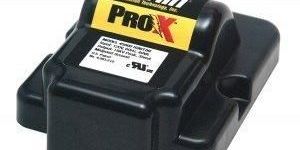

The Pro-X 45000 Universal Ignitor is Carlin’s most durable ignitor ever. Built to last and tested through hundreds of thousands of on/off cycles at high temperatures at maximum voltage, this ignitor defines durable. But long life is only half the story. The Pro-X 45000 is Universal. The rugged thermoplastic housing features mounting locations for virtually any burner, any brand. If you’re looking for a tough as nails ignitor that will fit any burner you work with, the Pro-X 45000 is for you.

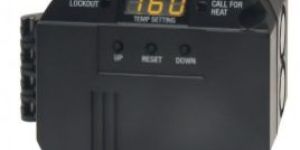

Multiple Sensor Option (1 or 2) (Using individual and/or dual sensor assemblies) Easy Remote Sense (Electronic sensors, wired to control) Smart Manual Reset (Manual reset only if operating limit doesn’t open) Serviceman reset protection (Latch-up after three consecutive lockouts) Latch-up mode shuts down the control after three consecutive lockouts and requires a special procedure to reset. This ensures the owner will call in a licensed technician to troubleshoot and correct burner problems. Power-independent Lockout (Power cycling won’t reset from lockout or latch-up) Diagnostic LED’s (Power, Call for Heat, Lockout/latch-up) SMC Technology (Safety Monitoring Circuit) Provides two limit relays. Carlin’s Safety Monitoring Circuit monitors the contacts for both relays. Lockout occures if a limit relay contact is found closed when it should be open.)

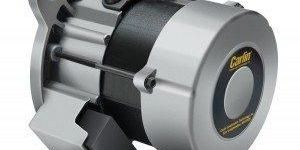

Features & Benefits More Efficient both Starting and Running More Reliable Auto Reset Thermal Overload Quiet Sealed Ball Bearings Eliminates Centrifugal Start Switch More Versatile Replace 1/15 to 1/4 HP Motors Replaceable Capacitor

The 702GO advanced combination gasoil burner features Carlin’s adjustable combustion head assembly for unmatched fuelair mixing, smooth light-offs and quiet running. The automatically-closed air damper and low-high-low step modulation improves efficiency by closer matching the output to the demand and reduces stand-by losses.

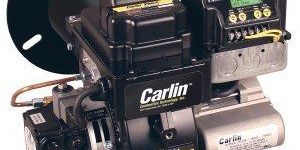

Available with or without a burner cover. The EZ-Pro advanced oil burner combines the proven range and reliability of the EZ burner with Carlin’s line of electronic controls and high efficiency components. Purchase the EZ-Pro in any of three configurations – EZ-1, EZ-2, or EZ-3. Specify tube length when ordering.

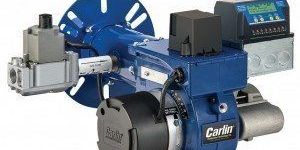

As a natural gas conversion burner, this model is available with or without a burner cover. The EZGas Pro burner converts existing oil-fired boilers, furnaces, and water heaters to natural gas or propane at a fraction of the cost of replacing the appliance.  This natural gas converter comes factory packed with combustion control and gas fuel train. Unlike other conversion burners, it does not require a refractory liner – fires with or without a combustion chamber. Proven in extensive boiler and furnace testing, these gas conversion burners will meet your needs for residential gas burning applications. If you have any questions about this or any other oil to gas conversion burner, please contact us at your convenience.

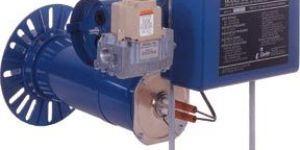

The G3B is a power gas burner for natural or propane gas completely assembled, using premix combustion and hot surface ignition with flame rectification flame sensing. Converts from propane to natural gas with just an orifice change no conversion kit needed. Simple adjustments of the air shutter and combustion head, set with Carlin’s easy-access screw adjustment. Blower access cover allows full view of blower compartment. Burners use the same air handling parts for all firing rates. Burners use standard components, including Carlin electronic ignitor and standard primary controls. Jacob’s ladder electrode tips for wide spark pattern and reliable ignition. Low-high-low step modulation, using low-and high-fire oil valves and nozzles and butterfly gas valve with motorized air damper. Requires high fire control on boiler by others. Positive ignition, stable operation, and compact flame. Gas pilot ignition for gas/spark ignition for oil. Compact flame for maximum versatility. Insensitive to draft or moderate back-pressure variations. Can operate in forced draft applications up to 0.60 inches w.c. positive overfire pressure. High resistance to pulsation. Excellent performance when tested in appliances that do not use refractory combution chambers. Rugged cast aluminum hoursing.

14,000 volt and 20,000 volt output for smoother ignition. Solid state technology yields high performance, long life and durability constant-duty rated. Low current draw saves electricity. Epoxy sealant provides water resistance and heat dissipation Consistent voltage output across a wide range of imput voltages. Easy testing 41000 ignitor spark can jump 1/2″ gap.

9,000 volt output for smooth gas ignition Solid state technology yields high performance, long life and durability Constant-duty rated Low current draw saves electricity Epoxy sealant provides water resistance and heat dissipation Consistent voltage output across a wide range of imput voltages Model 42800 models can be mounted on standard 4×4 j-box Model 42800 model primary power wires can be routed through bottom or side of housing

The 702GO advanced combination gasoil burner features Carlin’s adjustable combustion head assembly for unmatched fuelair mixing, smooth light-offs and quiet running. The automatically-closed air damper and low-high-low step modulation improves efficiency by closer matching the output to the demand and reduces stand-by losses.

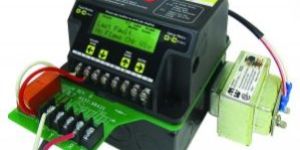

Carlin’s Kool Kit allows you to add air conditioning control capabilities to an existing furnace or boiler with any Carlin primary control. The Kit’s quality components and competitive price make it the perfect, low cost upgrade (with a Carlin primary control) to “M” type controls    Universal Fit: Works with Carlin, Beckett and Honeywell primary controls  Replaces Beckett 51950U Ready Kit or 5197U Terminal base  Replaces Honeywell R8184M when installed with Carlin primary control  Heavy Duty 16 Amp Relay for added durability Designed for quick installation

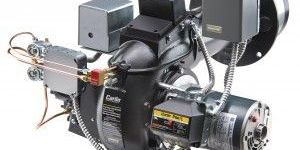

The 1050FFD and 1150FFD advanced oil burners feature Carlin’s flame-funnel combustion head design. For unmatched fuel/air mixing, smooth light-offs and quiet running. The automatically-closed air damper and low-high-low step modulation (approximately 2:1 turndown) improve efficiency by closer matching of output. To demand and reduced stand-by losses typically savings of 15-20% in seasonal fuel usage when compared to single-stage flame retention burners. Proven for years in the field and in extensive boiler and furnace testing, these burners will meet your needs for commercial oil-burning applications.

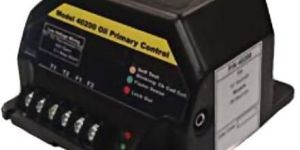

Features& Benefits   InterruptedDuty Ignition     15-SecondTrial for Ignition 40200 (1.3 second flame failure responsetime (FFRT)     30-SecondTiral for Ignition 42230 (1.3 second flame failure responetime (FFRT)     Recycleon flame Failure     Thermostat/aquastatCompatible     SMC(Safety Monitoring Curcuit) Technology
