Cast Iron Plates Dealers in Delhi

• Type: Fancy
• Material: Cast Iron
• Shape: Rectangular
• Thickness: 10-20mm
• Color: Black
• Finishing: Polished

Made By : Luthra Made In : Indian   Made Generally as per Is:6232-1971, made from good quality close grained with high Density  Alloyed Cast Iron Castings conforming to Grade FG-220 of IS:210, Stress Relieved Hand Scraped Surface. Precision Box Angle Plates as per IS-6985-73 on request

• Type: Ferrous Metal Scrap
• Material: Metal

We have break and drum plates from UK on regular basis. Can offer on C&F basis against Letter of Credit.

• Thickness: 10-20mm, 20-30mm, 30-40mm, 50-60mm
• Length: 10ft, 8ft, 9ft
• Application: Industrial and gas burners
• Finishing: Polished
• Feature: Corrosion Proof, Fine Finishing, Optimum Quality

Special Features: Our company is extremely involved in providing a comprehensive range of Puffer Plate to our valuable clients. These puffer plates are used in houses, hotels and restaurants for preparing delightful puffed chapatis and rotis. The products offered by us are manufactured using superior grade raw material and progressive technology in adherence to the latest market norms. Apart from this, these are widely acknowledged among our prestigious clients for their durability and reliability

• Square (M.M.): 300 X 450,450 X 600, 600 X 900 , 1000 X 1000, 600 X 600

We manufacture, export and supply pristine Cast Iron Lapping Plates. Fabricated using closed grain graded casting as per IS 210:1993 confirming to Grade FG- 220, these Cast Iron Lapping Plates ensure precision lapping of components of various sizes. These components are lapped using lapping powder of different grits to achieve finish and accuracy. Available in different specifications, our complete assortment of Cast Iron Lapping Plates complies with set industry standards and are quality approved by the authorities. These lapping plates are supplied with calibration certificate traceable to National Physical   Laboratory (NPL, Govt of India) New Delhi Attributes: Ideal for accurate hand lapping of various materials like nylon, plastics, ceramics and other non-ferrous material Available in round and rectangular sizes and have 3 mm wide and 3 mm deep serrations on working surface equally spaced at 25 mm Standard Size and accuracy of Cast Iron Lapping Plates as per IS : 2285:2003, Grade 1

• Size in mm: 125 X 75 X 100, 175 X 100 X 125, 250 X 150 X 175, 350 X 200 X 250, 450 X 300 X 350, 600 X 400 X 450

Cast iron angle plate Made Generally as per IS: 2554-1971. Made from good quality close grained with high Density Alloyed Cast Iron Castings Conforming to Grade FG-220 of IS: 210. Stress Relieved Hand Scraped Surfaces. Webbed & Slotted.

• Country of Origin: Made in India
• Brand: Luthra
• Power Consumption: Micron
• Usage/Application: Inspection
• Design: Square & Rectangle
• Size: 300 TO As per Requirement

These plates are of close grained cast iron. They are amply ribbed to minimize deflection under load. The composition of the metal, the depth and cross-section of the ribs and the thickness of the plate are designed to conform to the deflection limits specified in IS 2285 -1963. Surface plates are manufactured to two tolerance standards. - Grade-I and Grade-II. Grade-I plates are more precise than Grade-II plates. The deviation in flatness for Grade-I and  Grade -II  plates for sizes upto and including 2000 x 1000 mm are as prescribed in IS 2285-1963. Grade-1 plates are artificially seasoned.They are hand scraped to achieve maximum local deviation from flatness of 5 microns over any length of 300 mm at any points on the working face , in plates of  630 X 400 mm and larger. Aspecial scraping technique is used to achieve a uniform distribution of load bearing points and oil pockets. An average of 15-20 load bearing points , after finish scraping , is standard. This finish scraping technique ensures that the area of the load bearing points increases  after the intial dulling of the high points. This guarantees a long working life, at the required accuracies.

• Size other than IS: 150 X 150 X 150

Made Generally as per IS: 2554-1971. Made from good quality close grained with high Density Alloyed Cast Iron Castings Conforming to Grade FG-220 of IS: 210. Stress Relieved Hand Scraped Surfaces. Webbed & Slotted.

Our company is extremely involved in providing a comprehensive range of Puffer Plate to our valuable clients. These puffer plates are used in houses, hotels and restaurants for preparing delightful puffed chapatis and rotis. The products offered by us are manufactured using superior grade raw material and progressive technology in adherence to the latest market norms. Apart from this, these are widely acknowledged among our prestigious clients for their durability and reliability. Specification: Available size: 11x13, 11x15, 12x15 & 24x24   Features: Sturdy construction Perfect finish Longer life

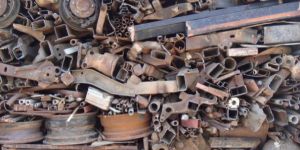

Heavy Melting Steel (HMS) is iron scrap: recyclable steel or wrought iron. HMS consists of small pieces and is divided into two categories: HMS 1, which is not galvanized or blackened, and HMS 2. Royal metals Group operates internationally and trades worldwide in used ferrous and non-ferrous materials. Our extensive experience, reliability and environmentally conscious approach make us a preferred supplier and business partner for many clients. Ferrous scrap is a valuable material. Royal Metals Group believes in sharing this value opportunity at a mutually profitable rate. Thanks to extensive experience with this material, our intimate knowledge of market prices and our lean organization, we are able to trade HMS at optimal prices.

• Brand Name: Labtest
• Material: Cast Iron
• Compatible Power: 230 V A.C
• Power Rating: 1.5 kW
• Minimum Order Quantity: 1 Piece

• Feature: Excellent Quality, High Strength,Optimum Quality ,Perfect Shape

Cast Iron Surface Plate, Granite Surface Plate, Calibration Instruments

These plates are of close grained cast iron. They are amply ribbed to minimize deflection under load. The composition of the metal, the depth and cross-section of the ribs and the thickness of the plate are designed to conform to the deflection limits specified in IS 2285 -1963. Surface plates are manufactured to two tolerance standards. - Grade-I and Grade-II. Grade-I plates are more precise than Grade-II plates. The deviation in flatness for Grade-I and Grade -II plates for sizes upto and including 2000 x 1000 mm are as prescribed in IS 2285-1963.

Cast Iron Angle Plates, Iron Tmt Bars, Iron Angle Wholesale Sellers

Cast Iron Angle Plate, granite master angle plate, Try Square
