This test is used to determine the elapsed time between batching of a concrete sample and when it is deemed by standard methods to have set. The method involves measuring the penetration resistance of a test sample, which has had coarse particles removed at periodic intervals. It is particularly useful, in determining the effect on setting time of admixtures in the concrete, where these may have been introduced specifically to increase the setting time. It consists of cylindrical spring housing with a plunger attached to the top of the spring. Penetration needle is attached to the other end of the spring housing. The plunger is graduated in 1 kg divisions, to a maximum capacity of 60kg, which can be read with respect to the top end of the spring housing. A set of six needle points with areas of 645, 323, 161, 65, 32 and 16mm2 are provided. Supplied complete in a wooden carrying case Consists of a needle having face area 3/10 sq.cm. and graduated at a distance of 25mm. The needles point is an integral part of barrel which houses a calibrated spring. The spring is confined in a sleeve. The resistance offered by the concrete mortar is shown on the direct reading scale with a marker ring which holds its position when released. Scale range is 0-50 kg/cm2 when the penetration resistance reaches a value of 35kg/cm2 the concrete is assumed initially set. Supplied complete in a leather carrying case. AS PER ASTM C-403

Cement sampler is an important cement testing equipments as the cement industry samples its product in many states and forms: slurry, liquid, powder, clinker, slag and finished cement. Cement Sampler Manufactured by us used to sample cement from packages. Its Made of brass, it has an outside dia. of 32 mm x 700 mm long

• Country of Origin: India
• Certification: CE Certified
• Weight: 100-500kg
• Color: Brown
• Voltage: 220V
• Driven Type: Electric
• Warrenty: 1year
• Type: Digital CBR Testing Machine
• Power: 3-5kw
• Brand Name: U Test
• Application: Industrial

• Material: Steel
• Voltage: 220V
• Power: 0.25 To 5 kw
• Brand Name: Steco
• Automation: Semi-Automatic
• Capacity: 50 KN
• Phase: Single Phase
• Ring Capacity: 30 KN

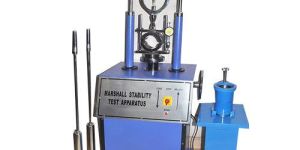

• Usage: Marshall Stability Testing

Product Code: EKE 895This test is performed to measure the short-term strength of an installed Rockbolt under field conditions. The strength is measured by a pull test in which bolt head displacement is measured as a function of applied bolt load to give a load- displacement curve. This test is usually employed to assess the performance of the Rockbolt anchor resulting out of the quality of material used for manufacture of Rockbolt and installation method used. The test equipment consists of a manually operated hydraulic pump connected to hydraulic jack, having a high strength test rod, coupled to the Rockbolt under test. The anchor is tested by measuring the load until a total displacement greater than 40 mm has been recorded or until the bolt yield or fractures, if this occurs first. The readings of displacement are taken in increments of approx. 5 kN load or 5 mm displacement whichever occurs first. The rate of load application should be in the range 5- 1 0 kN/min. Readings are only taken after both load and displacement have stabilised. The time required for stabilisation should be recordedDetails Pullout Test Apparatus 500 kN (50 Tonnes) Consists of following: EKE 89001 Hydraulic Centre Hole Jack 500 kN (50 Tonnes) capacity with 54 mm Centre Hole, 150 mm Ram Travel, Double Acting EKE 89005 Hand Operated, two Stage Pump EKE 89007 Thermoplastic Hose, 6m long. with pair of quick couplings EKE 89010 Load Gauge 150 mm dia, 500 kN x 5 kN EKE 89011 Reaction Frame 500 kN capacity with 90mm hole at base EKE 89012 High Strength Test Rod, 40 mm dia EKE 89015 High Strength Coupling, having RH thread to suit Test Rod on one end and LH thread to suit 20mm dia Rockbolt on the other end EKE 89016 High Strength Coupling, having RH thread to suit Test Rod on one end and LH thread to suit 25mm dia Rockbolt on the other end EKE 89017 High Strength Coupling, having RH thread to suit Test Rod on one end and LH thread to suit 30mm dia Rockbolt on the other end EKE 89018 High Strength Coupling, having RH thread to suit Test Rod on one end and LH thread to suit 32mm dia Rockbolt on the other end EKE 072- Dial Gauge, 0.01 x 25 mm

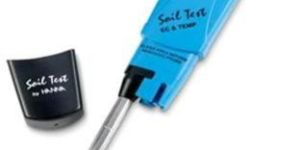

We are reckoned as a major manufacturer, exporter, and supplier of a wide range of soil testing instruments. The range of soil testing instruments, offered by us, includes soil nitrate meter, soil potassium meter, and soil test direct soil ec tester. These soil testing instruments are high on demand in the market. These instruments are widely appreciated by the clients, owing to their high performance and trouble free operation. Apart from this, the soil testing instruments that we offer comply with the international standards. These instruments can also be availed at the most nominal prices.

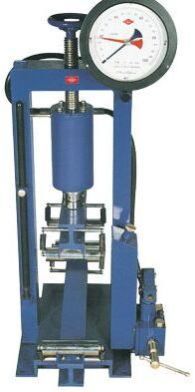

Our company is premium Manufacturer, Supplier and Exporter of Flexure Testing Machine from Delhi, India. The Flexure Testing Machine offered by us is in compliance with norms set by industrial regulatory bodies. Our machine is tested on stringent quality parameters to ensure that clients receive a defect free product. Customers can acquire small and bulk orders of Flexure Testing Machine from us at highly affordable rates. Features : Light weight, rugged high strength frame Double action hydraulic pump Self-aligning roller assembly Hydraulic jack provided with retraction spring For testing beams of 100x100x500mm and 150x150x700m Conforms to IS:516, BS:1881 AND ASTM C78   Models available : EKE 331 100kN Flexure Testing Machine with double action pumping unit manually operated. EKE 332 100kN Flexure Testing Machine with Electrically operated Pumping Unit, fitted with 1 H.P. motor, suitable for operation on 415 V. 3 phase A.C. Supply

• Brand Name: AMK

This unit consists of a cabinet which houses the gear system and motor mounted on a sturdy angle iron base. The loading is done through the bottom loading plate which is carried on a lead screw. The advancement of this lead screw is secured against rotating by a sliding key. The top bracket is adjustable in height and carries a hexagonal adaptor for taking standard proving rings. The instrument is fitted with a motor operation on 220230 volts, single phase, 50 cycles A.C. supply.This is for evaluating the strength of soil on field exploration or construction site and in the preliminary laboratory studies.It gives directly the unconfined strength.

Our company is a reputed Manufacturer of the Mortar Cone Penetrometer. The Mortar Cone Penetrometers produced by our company are very important Concrete Testing Equipments and they are widely demanded. We produce high-quality Mortar Cone Penetrometer with many attractive features. Regerence Standard - IS 2250-1965 For determining the consistency of masonry mortar Consists of a movable bearing rod to which a cone 145mm. Long and 75mm diameter at a base is fixed. The bearing rod passes freely through a bracket which is provided with release mechanism. A diameter graduated in mm with rack and pinion is provided for measuring the penetration. Complete with a conical container 150mm id x 180mm deep and a platform.

Designed to find out specific gravities of semi liquids like mud and other liquids having densities in the range 0.8 to 2.5. It has a stainless steel bam calibrated specific gravities from 0.8 to 2.5. A stainless steel cup with lid and overflow vent is fitted on one side of the beam. A counter weights with cursor slides over the graduated scale. The beam has a knife-edge at centre which rests in a fulcrum fitted in the stand. Leveling screws and spirit level are fitted to the stand.Spares & Accessories (On Extra Cost) :Punch to cut filter paper discs. Non-perforated disc. Suction bulb, Mercury.

• temp.: 200°C ±0.5°C.

SIGMA Thermal Stability Test Apparatus is used to measure check Thermal stability of PVC insulation & sheath of Electric cables as per IS:5831. Measures Thermal stability time in minutes required to change the pH value of 5 to 3 of a universal indicating pH paper placed in a glass tube containing sample and heated in a PID controlled heating chamber at specified temp. of 200°C ±0.5°C.

Ring and ball apparatus is meant for determining soft point of bitumen. Using various scientific principles it is also used in petroleum industry, construction projects, paint industry etc. The ring & ball apparatus is used to determine the temperature at which a sample of bituminous material loaded by a steel ball of 9.5 mm diameter, drops a specified distance when heated under specified conditions. It is used to determine softening point of bitumen.

Product Code: EKE 460Standrad: IS:654, 1237   For clay roofing tiles (Mangalore Pattern) and Cement Concrete Flooring Tiles. This is a double lever (leverage 1:12) loading machine and the load is applied by flow of lead shots which automatically stops when the sample breaks. The load is applied at the rate of 450 to 550 N/minute (200 Kg/minute) and the accurancy of load indication ± 2%. The sample is mounted between rollers 40mm dia or 20 mm dia.

• Application: Concrete test
• Power: Manual
• Standard: BS 1881-103, BS 5075
• Minimum Order Quantity: 1 Piece

Used for uniform stirring of samples. The unit is provided with speed regulator for variable speed, S.S. Stirring shafts with adjustable height, S.S. propeller, and tube light is provided at base for illumination. Six Test Set, for 1 lit capacity.

In Cord Flexing Test Apparatus braided cords may be used. Polyvinyl chloride sheathed cords are only allowed for the connection to the supply mains of stands of cordless irons and for the separate water reservoir or boiler of steam irons. Polyvinyl chloride cords are not allowed for cordless irons that may also be directly connected to the supply mains during ironing Instead of the load specified for the cord, the cord is loaded with a mass of 2 kg. Instead of the number of flexing specified, the number of flexing is 20000. The test is not carried out on cordless irons unless the iron can at so be directly connected to the supply mains during ironing. For steam irons with a separate water reservoir or boiler, the test is made on the steam hose and the interconnection cord together. If they are contained in one sheath or otherwise attached to each other.

• Features: Rugged construction, Easy to use, Compact design, High functionality, Longer functional life, Durable .
• Weight: 3.5kg
• Speed: 36 rpm
• Load Capacity: 9 tubes
• Motor Type: sryrinconised
• Brand Name: pacific

Backed by a team of expert professional associates, who are having years of experience in the domain, we are rendering salt spray chamber or corrosion test apparatus. The offered product-line finds it used in different industrial applications and are widely acclaimed for its reliability and durability. Apart from this, the offered range is offered at the most market-leading price. features: digital indicators cum controller/indicator digital timer (999 hours) humidity meter with sensor mist dispersion automizer drainage system heating system hanging provision/rack provision air regulator air filter fog collection unit

• Features: Flawless finish, Affordable prices, Specifically designed .

A prominent supplier of huge range of Direct Shear Apparatus.

Obromax fume hood are to limit a person's exposure to hazardous andor unpleasant fumes. For worker protection, the laboratory fume hood is the most useful piece of safety equipment found in the lab. When used appropriately, fume hoods not only provide protection from toxic gases and vapors but also provide protection from unanticipated fires and explosions. Fabricated out of thick wooden board these are designed . Outer is finished with sunmica and inner epoxy painted. Working table top is fitted with acidalkali resistant tiles stainless steel and a small wash basin with connections provided for inlet and out let of water. The front door moves vertically up and down with concealed counter balanced weight. The unit if fitted with flourescent light and a gas cock for gasair supply. The space under the work station can be provided with storage compartments for storage purpose. The front facing panel is fitted with 155 amp socket with switches for exhaust system and fluorescent light. To work on 220230 volts a.c. Supply. Working size- 2’x2’x2’ 3’x2’x2’ 4’x2’x2’ 6’x2’x2’

We are leading supplier of huge range of Salt Spray Test Apparatus.

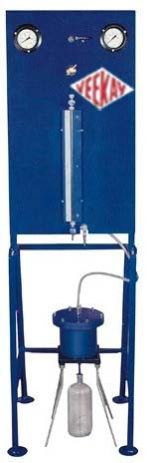

concrete permeability test equipment, Compression Testing Machines
