Colloid Mill Dealers in Delhi

• Material: stainless steel
• Voltage: 415
• Phase: 3
• Automation Grade: Semi-Automatic

• Type: GMP Model
• Warranty: 1 Year
• Material: Metal
• Packaging Type: Packed in Box
• Finishing: Polished
• Use: Industrial

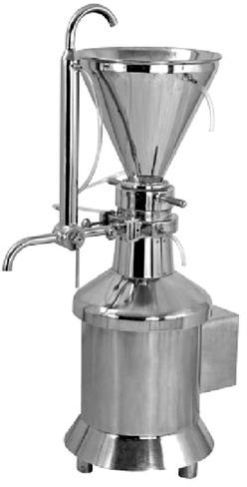

It is used for Superfine grind, Homogenizing, Dispersing, Mixing and emulsifying in single process.Application & Process : GMP Model Colloid Mill Machine is a machine that is used to reduce the particle size of a solid in suspension in a liquid, or to reduce the droplet size of a liquid suspended in another liquid. This is done by applying high levels of hydraulic shear to the process liquid. It is frequently used to increase the stability of suspensions and emulsions. The GMP Model Colloid Mill is used for various applications such as Superfine grinding, homogenizing, emulsifying, dispersing, mixing and extracting of liquids, ointments and highly viscous products in pharmaceutical, cosmetics, suspensions & emulsion industry. The product is fed to the hopper which leads the product into the gap between rotor and stator. The product is subjected to a high degree of shearing, cutting and rubbing between two metal toothed surfaces of rotor and stator and towards the discharge section. The processed product continuously leaves the mill through drain pipe if required, it can be re-circulated by three way cock and re-circulating pipe assembly. Salient Features : Design is cGMP – Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Easy to adjustment gap between rotor and stator. Three way cock assembly with re-circulating pipe. Easy to Moveable and dismantle all contact parts for cleaning. Silicon food grade seal. Separate discharge spout for highly viscous products. Optional Features : Mechanical Seal Horizontal / Vertical Drive. Water cooling system. Flame Proof Electrical. Safety Features : Overload pressure release mechanism. Emergency stop button.

• Type: Automatic
• Certification: CE Certified
• Voltage: 220V
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1 Year
• After-Sales Service Provided: Spare Parts

• Voltage: 415 V
• Motor Speed: 2800 RPM
• Material: Stainless Steel
• Automation Grade: Semi-Automatic

Based in New Delhi(India), our organization serves to the varied requirements related to diverse products. Providing customized packaging solutions is our specialty and we can alter packs as per requirements of buyers. Besides this, we make sure the grade of materials is premium to ensure safety of products.

Colloid Mill is suitable for Homogenising Emulsifying, Dispersing, Mixing, Comminuting of liquids to highly viscous products. It is based on rotor - stator principle. It is available in plain as well as Water Jacketted model which is suitable for heat sensitive products. Flame Proof electicals can be supplied on demand. lient Features All contact parts are made out of SS, 304 (SS 316 on demand at extra charges). No castings are used for avoiding contamination problems. Coupling provided between Motor shaft and Rotor shaft for ease in maintenance. Three oil seals between the motor and the processing chamber to prevent liquid going in the motor winding, resulting in the burning of the motor. Modified design of semi concave teeth in rotor and stator reduces motor HP and givesbetter performance in size reduction without demaging the product. Extended bearing clearances or back lash to avoid metal to metal contact of rotor and stator. This unique design provides smooth and consistence all round performance and long life of rotor and stator. Leak proof neoprene sealing device. Three way cock system for draining and recirculation of liquids provided as standard. Extra discharge spout provided as a standard for viscous products. DOL starter with overload relay for protection against single phasing and low voltage. Contact parts can be easily dismantled for cleaning. Special design facilities adjustment of the grinding gap by an exterior screw by means of handle een during operation. Flame proof motor and flame proof rotory switch can be provided on request at extra cost. Range  of Machines Machines, Equipments and Tools for Tablet Compression : Single Rotary 12, 16 & 23 Stations, Double Rotary 27 to 45 Stations Standard and GMP square model, Press high speed & high tonnage 29 to 47 Stations GMP square model, Dies/Punches, Dust extractors, De-dusting and Deburring unit. Machines for Tablet Granulation : Mechanical Sifter, Mass Mixer, Oscillating Granulator Standard & GMP models, Multi MIll Comminuting Mill GMP models Plain & Water Jacketted, Roll Compactor Plain & Water Jacketted and Hot Air Drier. Machines for Tablet Coating Coating : Machine and Polishing pans of sizes 36", 42" 48", 60" & 72". Machines for Tablet & Capsule Packaging : Blister Packing Counting  / Filling and Strip Packing. Machines for Liquids, Ointments and Creams : Colloid Mill Plain & Water Jacketted. Some of the equipments are also used for bulk drugs , chemicals and confectionery industries.

• Material: SS
• Voltage: 415V
• Power: 3W
• Phase: 3 PHASE
• Motor Speed: 1440HZ
• Model Number/Name: BIKON CM
• Brand: BIKON
• Automation Grade: Semi-Automatic

• Driven Type: Electric
• Material: Stainless Steel
• Type: Mill
• Brand Name: Bharat
• Capacity: 50 to 80 Kg/h
• Automation Grade: Semi-Automatic

• Power: 5 HP
• Material: Stainless Steel
• Brand Name: Shri Ram Enterprises
• Country of Origin: Made in India
• Voltage: 220 V
• Phase: Single
• Frequency: 50 Hz
• Capacity: 50 L/min
• Speed: 3000 RPM

Shearing/mixing forces produce controlled, highly sheared, uniform dispersions and stable emulsions. A wide range of product viscosity may be processed, limited only by the maximum 150 psig (10 bar) inlet pressure. Higher viscosity products are processed at lower flow rates to stay within the pressure limit. Typical applications include salad dressing, mayonnaise, liquid egg homogenization, tomato based sauces and various personal care products such as lotions and creams.  Up to 50% more flow rate with less heat than other mills Easy to adjust; calibrated ring sets spacing; no special tools; less downtime; may be adjusted while operating Easy to disassemble, only 7 basic parts; cleaning and inspection quick and easy; may also be cleaned in place Longer bearing and seal life; shaft and bearing position independent of clearance adjustment; quieter operation Sanitary design for processing food or pharmaceutical products Flow rates: 400 to 2000 GPH (1500 to 7570 liters/hr.)

• Min. Order Quantity: ,

The company is a well-established Fabricator and Supplier of Colloid Mill Machines in Delhi. The Colloid Mill Machines are available in a wide range and are fabricated using quality raw materials. The Colloid Mill Machines are widely used for the grinding of various vegetables and fruits and can be availed at the market leading prices. Highlights Of Colloid Mill Machines Highly efficient and durable Various shapes and sizes Sturdy construction Premium quality
