Complete Dewatering Systems Private Limited Vasant Vihar, Delhi

These incorporate a self Jetting head with a non-return plastic ball valve, a P.V.C. slotted filter screen, a G.I inner drain pipe and a top coupling which threads to standard 1 ½" (40 mm) riser pipe. The serations on the jet head render penetration, even through hard grounds, easy. Specially designed slots of PVC screen, allows maximum water flow with minimum pressure drop and prevents passage of even fine material. The plastic screen eliminates clogging due to corrosion or deterioration due to chemical action. It has a reverse self cleaning design to void choking.

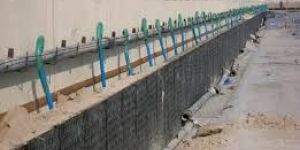

The all plastic swing joint uses moulded elbows on either end of the swing joint, one fitting into the Welltop and the other in to the header saddle. All fitting are made with "O" rings ensuring a perfect seal without use of any tools. The connections are leak proof in both vacuum and pressure. The industrial swing joint may be provided with a PVC ball valve for isolating it from the rest of the well points.

We are engaged into manufacturing of dewatering pumps, submersible dewatering pumps, portable dewatering pumps, construction dewatering pumps and mine dewatering pumps which are made using high quality raw materials. These dewatering pumps are highly efficient having airwater separation tank of welded steel. Varying sizes are available for submersible dewatering pumps and mine dewatering pumps. We also take care of the customized solutions by the clients. These dewatering pumps are available at market leading prices.

Connected to the high pressure jetting hose from the jetting pump, the jet fitting makes set-up for 'jetting in' the wellpoints a simple operation. The "O" Ring equipped jet fitting just pushes into the Complete Welltop on the welpoint/riser assembly and a spring-secured bracket slips under the welltop to provide a leak free pressure connection of the wellpoint and riser pipe to the jet pump. When the wellpoint is jetted in, the bracket is swung clear and the jet fitting pulled from the welltop, for use on the next wellpoint. No tools are required.

Our pipe puller is an ideal time saving part in the dewatering set up over the conventional methods. This fitting, attached to a crane or other lifting mechanism, makes removal of the installed wellpoint a quick and simple job. The locking gate securing pin is positioned and the wellpoint and riser pipe are then lifted straight out of the ground. The puller releases with a one hand operation and is ready for use on the next wellpoint. Specifications and Advantages Minimizes pipe breakage with a more secure method of lifting pipe sections. Designed to remove self jetting wellpoints, manually as well as with crane. Easy release from welltop for rapid use. No tools are required.

Various industrial pipe fittings in the form of tees, elbow of 45°or 90° are provided to connect the header and discharge pipes. Header sleeves and snap tight clamps ensure leak proof connections even under vacuum, with out use of any special tools used in industrial pipe fittings.

Made of strong and rigid PVC, complete's header pipes weigh one fourth of steel pipes of similar size and specifications. These pipes are available in 20 feet (6mts) lengths and in diameters ranging from 4" (100mm) through 10" (250mm). Being of light plastic, these are easily carried by hand. Outlets with saddles are spaced at 7 per 20' (6m) or 14 per 20' (6m) as per requirement. Unused saddles are easily capped with plastic plugs.

Made of strong and rigid PVC, complete's header pipes weigh one fourth of steel pipes of similar size and specifications. These pipes are available in 20 feet (6mts) lengths and in diameters ranging from 4" (100mm) through 10" (250mm). Being of light plastic, these are easily carried by hand. Outlets with saddles are spaced at 7 per 20' (6m) or 14 per 20' (6m) as per requirement. Unused saddles are easily capped with plastic plugs.

Discharge pipes have similar specifications as header pipes. Similar fittings and sleeves are used to connect the pipes. In addition, one, two or five bolt couplings are used depending on pressure in the water discharge pipe. In addition specially designed header and water discharge pipe supports are available to make the operation simple and efficient. All operations are conducted with simple hand tools.

High efficiency airwater separation tank of welded steel with automatic peeler valve assembly.Designed and manufactured by Wellpoint Systems Dewatering Pumps, are available in standard sizes from 4" (110 mm through 10" (250mm) suction.Complete Wellpoint Systems' dewatering pumps are designed to give discharges ranging from 30 LPS to 300 LPS.

We are engaged into manufacturing of dewatering pumps, submersible dewatering pumps, portable dewatering pumps, construction dewatering pumps and mine dewatering pumps which are made using high quality raw materials. These dewatering pumps are highly efficient having air/water separation tank of welded steel. Varying sizes are available for submersible dewatering pumps and mine dewatering pumps. We also take care of the customized solutions by the clients. These dewatering pumps are available at market leading prices. Specifications and Advantages High efficiency air/water separation tank of welded steel with automatic peeler valve assembly. Flexible coupling between prime mover and pump. Standardized design of pump and accessories for inter changeability and easy maintenance. Automatic flapper discharge valve. Vacuum pumps driven by common prime mover through belt drive arrangements. Designed and manufactured by Wellpoint Systems Dewatering Pumps, are available in standard sizes from 4" (110 mm through 10" (250mm) suction. Custom built pumps in other sizes are also available on special order. All sizes are available with either diesel engine or electric motor drive, and on either skid mounting or wheeled trailer chasis as required. Each vacuum pump is capable of displacing 125 CFM free air. Complete Wellpoint Systems' dewatering pumps are designed to give discharges ranging from 30 LPS to 300 LPS.

Our range of butterfly valve have variety of applications in the industrial applications. These stainless steel butterfly valves are light weight and can be easily operated. We make sure the valves are leak proof. Valves are easy to install and can leave on high pressure and temperatures. These butterfly valves are offered at market leading rates. Specifications and Advantages Light weight Easy to operate Ensures perfect seal Leak proof Can endure high pressure and temperatures Easy to install
