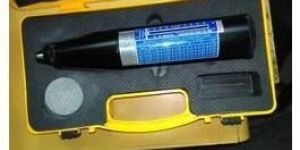

Concrete Test Hammer Dealers in Anand Parbat, Delhi

  We are the leading manufacturer & Supplier of superior Quality Digital Concrete Test Hammer. Concrete Test Hammer is designed specifically for the non-destructive testing of concrete structures. This method has considerable advantages over conventional methods of assessing the compressive strength of concrete in that large areas can be tested in a very short time at a very low cost .

Often, existing concrete structures will need to be examined and tested to ensure the concrete remains of adequate strength and durability. Rebound hammer surveys can be conducted to provide a rough estimate of concrete strength, where it is not possible to determine this by more accurate means such as core extraction and testing. The test involves using a special rebound hammer, which measures the recoil of a piston against the concrete surface when a standard force is applied. This recoil can then be correlated approximately to concrete strength. The rebound hammer consists of a barrel in which is housed a hammer mass attached to an impact spring which slides on a guide bar. A plunger is attached to the guide bar which is pressed against the surface to be tested. As the piston is pressed against the surface to be tested, on reaching the compressive strength, the hammer mass is released and rebounds to a certain extent, according to the strength of the surface, which is indicated by a rider on a calibrated scale. A lock button fixed on the body of the hammer lock the rider in place and the rider can be reset to zero Position by using the same button. The equivalent compressive strength can be computed from the chart supplied. It is suitable for specimen of compressive strengths 100-700Kg/cm. The instrument, complete with a grinding stone for polishing the test surface, is supplied in carrying case.

• Material: Steel
• Application: Concrete Testing
• Brand Name: Steco
• Voltage: 220 V
• Frequency: 50/60 Hz
• Grade: Semi-Automatic
• Strength: 100-700 Kg/cm

Veekay Industries is ranked among the prominent Concrete Test Hammer Manufacturers, Exporters and Suppliers. Our Concrete Test Hammer instrument is easy for quick and estimated measurement, of the resistance to pressure of the produced concrete products. The principle, on which our Concrete Test Hammer works, is based on the rebound impact of a hammer on a piston, which rests beside the surface of the concrete products. The greater the resistance of the concrete, greater will be the rebounded impact. By reading this rebound impact on a scale and relating it to curves on graphs supplied with the Concrete Test Hammer, the resistance to pressure in MPa or PSI can be found, with 20%.

kEWIL Concrete Test Hammer Useful for non-destructive estimation of quality of concrete of a finished structure and its relative compressive strength. The instrument consists of a casing in which a hammer mass, special spring, hammer locking and release mechanism are housed. A spherical ended plunger projects at one end which, when pressed against the test surface, actuates the release mechanism of the hammer mass. It gives an impact on the plunger. The hammer mass rebounds after the impact and an indicator registers the amount of rebound on a linear scale. The compressive strength of the material can be computed from the calibration diagram supplied with each hammer. It gives results within +15% of actual compressive compressive strength.

• Minimum strength: 10MPa
• Maximum strength: 60MPa
• Thickness: 0.3 mm
