Concrete Testing Equipment Dealers in Anand Parbat, Delhi

The Vee bee consistometer measures the remolding ability of concrete under vibration. The test results reflect the amount of energy required to remold a quantity of concrete under given vibration conditions. The Vee bee consistometer is applicable to concrete with slumps less than 2 inches. The apparatus, consists of a metal cylindrical container mounted on a vibrating table, which produces a sinusoidal vibration, a slump cone is placed in the center of the cylinder and filled in the same manner as in the standard slump test. After the slump cone is removed, a clear plastic disk is set atop the fresh concrete. The Vee bee table is started and the time for the concrete to remold from the slump cone shape to the shape of the outer cylindrical container is recorded as a measure of consistency. The sliding clear plastic disk facilitates the determination of the end of the test. Consists of: A vibrating table, size 380mm long and 260mm wide, resting upon elastic support at a height of about 305mm above the floor, complete with start/stop switch cord and plug A holder is fixed to the base into which a swivel arm is telescoped with funnel and guide sleeve. The swivel arm is also detachable form vibrating Table. A graduated rod is fixed on a swivel arm and at its end a plastic disc is screwed. The divisions of scale on the road record the slump of the concrete in millimeters. Supplied complete with a sheet metal. Container with lifting handles which can easily be fixed to the vibrating table. A slump cone open at both ends with lifting handles and a Tamping rod of size 16mm dia and 600mm long, rounded at one end. AS PER IS: 1199

  We are the leading manufacturer & Supplier of superior Quality Digital Concrete Test Hammer. Concrete Test Hammer is designed specifically for the non-destructive testing of concrete structures. This method has considerable advantages over conventional methods of assessing the compressive strength of concrete in that large areas can be tested in a very short time at a very low cost .

• Application: Industrial
• Warranty: 1yrs
• Ambient: 0-180 Deg C 180-360 Deg C
• Material: Mild Steel
• Brand Name: Steco
• Sample: 150 x 150 mm

Our company is premium Manufacturer, Supplier and Exporter of Flexure Testing Machine from Delhi, India. The Flexure Testing Machine offered by us is in compliance with norms set by industrial regulatory bodies. Our machine is tested on stringent quality parameters to ensure that clients receive a defect free product. Customers can acquire small and bulk orders of Flexure Testing Machine from us at highly affordable rates. Features : Light weight, rugged high strength frame Double action hydraulic pump Self-aligning roller assembly Hydraulic jack provided with retraction spring For testing beams of 100x100x500mm and 150x150x700m Conforms to IS:516, BS:1881 AND ASTM C78   Models available : EKE 331 100kN Flexure Testing Machine with double action pumping unit manually operated. EKE 332 100kN Flexure Testing Machine with Electrically operated Pumping Unit, fitted with 1 H.P. motor, suitable for operation on 415 V. 3 phase A.C. Supply

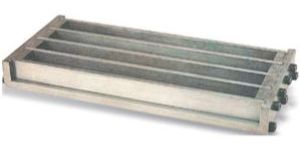

ASTM C 151 also specifies the use of shrinkage bar moulds for the determination of soundness. The change in length of the specimen is determined by Length Comparator listed in the concrete section. Two models are offered. One is provided with stainless steel smooth reference points and the other is provided with knurled and threaded reference points. Both the models are available as single mould and multiple mould compartments. Each mould is supplied complete with base plate and two reference points per compartment of mould. Mould size: 25 x 25 mm section and 250 mm effective length (Distance between two inner-most of the reference points   Details Product Code : EKE 401 Standrad: IS : 10086, IS:4031 Optional Extra EKE 40201 Set of 20, Smooth Reference Points EKE 40501 Set of 20, Knurled and Threaded Reference Points

As a prominent Concrete Permeability Apparatus Manufacturer, Exporter and Supplier, we offer a range of highly efficient Concrete Testing Equipment. One of the indispensable characteristics of Concrete Permeability Apparatus is to determine the permeability of water through specimen. Our Concrete Permeability Apparatus is highly efficient in defining the permeability of cement mortar and concrete specimens of 15cm cubes casted in the laboratory. Specifications The Concrete Permeability Apparatus that we offer comprises of a brass/gunmetal cell of square/round cross-section mounted on a stand. A pressure chamber is attached to the cell through copper tubing and T-connector is mounted on the stand with sleeve packed valve and rubber hose pipe with end connections. The cell assembly consists of a base plate, a metal funnel and a top plate. The pressure chamber is fitted with a pressure regulator, which helps to regulate the pressure from 0-15kg/cm sq. gauge for indicating the pressure in the cell. A foot pump and a pressure tube are supplied to improve the pressure of the chamber. The apparatus is supplied with a measuring cylinder of 500cc to measure percolated quantity to water. We also offer Single Cell Concrete Permeability Apparatus and Three Cell Models Concrete Permeability Apparatus.

• Power: 90W
• Pressure: 40Pa
• Material: mid-steel

• DIAMETER: 76.2 cm dia.

The Flow Table is designed for determining the workability of portland cement concrete.The Flow Table top is 76.2 cm dia, finely machined from a solid brass casting. The integrally cast ribs are designed for support and strength. The stand is fabricated out of cast iron and is of sturdy construction. Holes for mounting on foundations are drilled in the base plate. The ground and hardened steel cam is designed to drop the table by 12.5 mm.

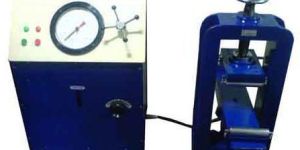

The Flexure Strength Testing Machines are designed to provide maximum rigidity throughout their working range. A hand pumping unit, a separate electrically cum hand operated pumping unit housed in a cabinet is supplied. The pressure gauge 0-100 kn x 1 kn, on/off switch and a slow/fast level to control rate of loading are fitted on the front panel of the pumping unit. A facility for hand operation is provided. A micro switch and relay fitted inside the pressure gauge protects the unit from over loading. The load gauge is calibrated against NPL/ NCCBM certified proving ring.

• Application: Concrete test
• Power: Manual
• Standard: BS 1881-103, BS 5075
• Minimum Order Quantity: 1 Piece

kEWIL Concrete Test Hammer Useful for non-destructive estimation of quality of concrete of a finished structure and its relative compressive strength. The instrument consists of a casing in which a hammer mass, special spring, hammer locking and release mechanism are housed. A spherical ended plunger projects at one end which, when pressed against the test surface, actuates the release mechanism of the hammer mass. It gives an impact on the plunger. The hammer mass rebounds after the impact and an indicator registers the amount of rebound on a linear scale. The compressive strength of the material can be computed from the calibration diagram supplied with each hammer. It gives results within +15% of actual compressive compressive strength.
