Compaction Factor Apparatus
15,000 Per Piece
Laboratory Shrinkage Bar Mould
2,500 - 2,700 Per Piece
Best Deals from Concrete Testing Equipment
Flexure Testing Machine
Get Price Quote
We are recognized in the global market as one of a prominent Flexure Testing Machine Manufacturers, based in India. Using premium grade components, we have developed Flexure Testing Machine, which is ideal for testing mortar samples for flexural strength. We offer Flexure Testing Machine at the most discounted price in the Industry. Features : Rugged constructionPerfectly measures loadAptly transmits the applied loadTrouble free operationLow maintenanceCompetitive pricing Applications : Pharmaceutical IndustryResearch InstitutionsChemical Industry Flexure Testing Machine 100 KN For 100 x 100 x 500 mm & 150 x 150 x 700 mm Beam : Hand OperatedElectrically Operated
Flow Cone
5,500 Per pcs
Flexure Testing Machine
Get Price Quote
Flexure Testing Machine is used in numerous industries for testing 40mm x 40mm x 160mm mortar specimens for flexural strength by single point loading. It is designed with motorized and mechanical unit. With adjustable speed option, our Flexure Testing Machine also features flexure test attachment for keeping the specimen in position. The Flexure Testing Machine operates on 230 Volts, single phase, 50 cycles A.C. Further, we provide Flexure Testing Machine with proving ring of capacity 500 Kn. Details : The speed is adjusted so that the load increase on the specimen is between 4 to 6 kg/sec A flexure test attachment for keeping the specimen in position is also supplied This consists of two rollers 10mm. diameter and spaced 100mm apart, and a third roller of the same diameter equidistant from the first two
Concrete Testing Equipment
Get Price Quote

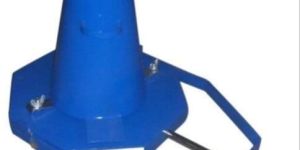

Slump Test Apparatus
Get Price Quote

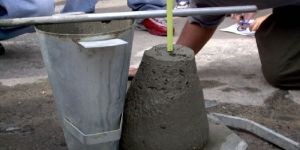

We manufacture superior quality Slump Test Apparatus conforming to BIS –7320. The apparatus is widely used for the determination of workability of concrete where nominal size of aggregate does not exceed 38 mm. It finds applications in various industrial tests. Slump Test Apparatus is designed with precision to offer the maximum efficiency and high performance speed. We design our Slump Test Apparatus to cater to the varied specifications of the clients. Features The apparatus comprises of a slump cone with foot pieces fitted on a base with wing bolts.A swivel carrying handle fitted with the base also serves as a datum for measuring the slump, when moved into vertical position perpendicular to the base.A graduated tamping rod is used both for compressing the specimen as well as measuring the slump of concrete.The slump cone is filled with freshly mixed concrete and is tamped with a tamping bar in three or four layers. Working The top of the concrete is leveled off with the top of the slump cone, the cone is lifted vertically up and the slump of the sample is immediately measured.
Flexure Testing Machine
Get Price Quote
. This is a double lever (leverage 1:12) loading machine and the load is applied by flow of lead shots, which automatically stops when the sample breaks. The load is applied at rate of 450 to 550 Nminute (45 to 55 kg minute) or 2000 Nminute (200 Kgminute) and the accuracy of load indication is ± 2%.
Slump Test Apparatus
1,200 Per Piece
10 Piece (MOQ)

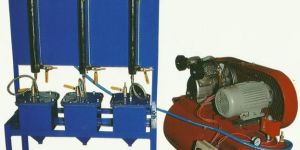

Concrete Permeability Apparatus
Get Price Quote
We are one of the prominent concrete permeability manufacturers, exporters, and suppliers, based in india. The direct shear test is carried out with an apparatus consisting of a square divided into two halves. The specimen, contained in the box, is subjected to a constant normal load while an increasing horizontal force is applied to one of the section of the shear box. This force causes a shear failure along the junction between the box sections. The shear force and the normal load are measured directly. The rate of strain is adjusted by the speed of the horizontal force applied. The loading unit has v-strips on which the shear box housing rests. Our direct shear machine is suitable for specimens of size 60 x 60 x 25mm. ref. Standard is:2720 (part 13), bs 1377, astmd 3080 ordering information concrete permeability apparatus, 3 cell model for 100mm cubeconcrete permeability apparatus, 3cell model for 100mm cylinberconcrete permeability apparatus, 3cell model for 150mm cubeconcrete permeability apparatus, I cell model for 150mm cubeconcrete permeability apparatus, 3cell model for 300mm cylinberconcrete impermeability apparatus, 3cell model for 150mm cube as per dlnstd to enquire about the desired product(s), just check the box and then click �inquiry now� button which is provided below.

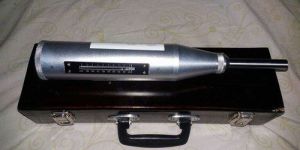

Concrete Test Hammer
3,000 - 5,000 Per Piece
1 Piece(s) (MOQ)

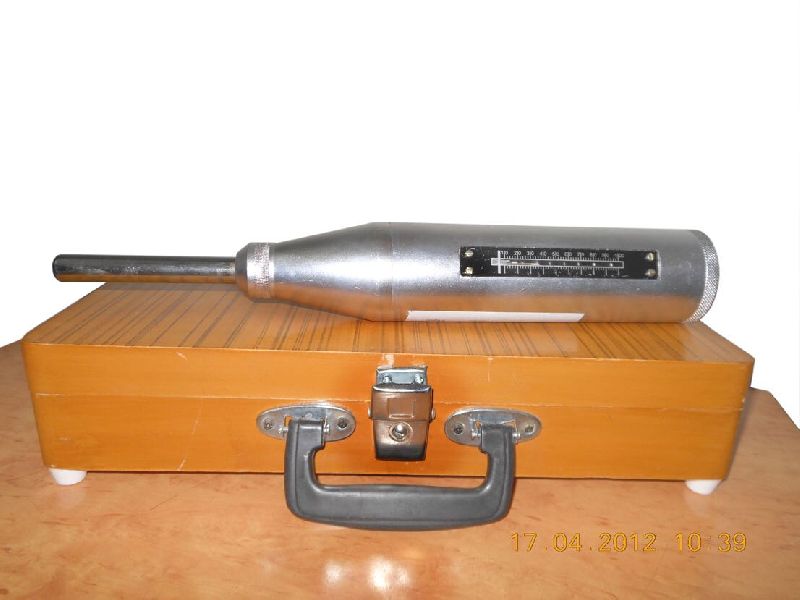

The rebound of an elastic mass depends on the hardness of the surface against which its mass strikes. When the plunger of the rebound hammer is pressed against the surface of the concrete, the Spring-controlled mass rebounds and the extent of such a rebound depends upon the surface hardness of the concrete. The surface hardness and therefore the rebound is taken to be related to the compressive strength of the concrete. The rebound value is read from a graduated scale and is designated as the rebound number or rebound index. The compressive strength can be read directly from the graph provided on the body of the hammer. Â
Shrinkage Bar Mold
Get Price Quote
Shrinkage Bar Mold, Blood Cell Counter, Pycnometer Apparatus, viscosity cup
