Continental Engineering Enterprises Janakpuri, Delhi

Dampers are available in 16g or 18g G.I multi blade construction fitted with galvaniszed 12.5 mm dia shaft and self lubricated bronze bushes provided with aluminium jam seal (compression type) to make damper low lekage operated with non spring return on off type actuator equipped with control panel.

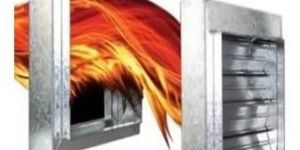

Both wall mounted & duct mounted dampers are available in heavy gauge G.1 multi blade construction fitted with galvaniszed 12.5 mm dia shaft and self lubricated bronze bushes also provided with S.S. jam seal (compression type) on side to prevent spread of smoke and fire. This is a motorized either spring return or non spring return acuator damper which activates on a signal from either an electronic thermal sensor (74 degree c UL stamped) mounted in the air stream or from the smoke detection system. the dampers are equipped with a 24 volts well designed control panel suitable with the acuator.

Attractively designed diffusers made of extruded aluminum mainly for installation into ceiling or sill. Can also be installed on walls, with or without Hit & Miss Dampers. Attractive Powder coated finish

Material : Galvanized Steel (GI)

Shape : Rectangular

Material : Mild Steel

Application : Fire protection

Manufactured by a mechanical assembly to ensure rigidity and maintain straight appearance. Available in 0°, 15° & 30° deflection. Made from high grade aluminium extrusion for maximum strength, corrosion resistance & dimensional stability. Also available in removable core form.

Dampers are available in all sizes starting from 150 mm dia to I000 mm dia constructed out of 20 g G.I machine grooved round sleeve & 20 g G.I. single round blade fitted on 12.5 mm dia galvanised shaft & self lubricated bronze bush available in both manual & motorized type.

Specially designed for clean room application with a perforated outlet to ensure a uniform and soft flow.

G.I. rain protection intake louvers are available in both flange type and casette type with bird screen.

G.I inspection windows are available in single skin & double skin thermally acoustically insulated with thermocole or puf slab with hinges & and required locking arrangements.

G.I. Gravity louvers are available in both duct type & wall mounted type constructed out of G.I. frame and light weight G.I. blades fitted on 9 mm dia shaft & plastic bush also available weight operated gravity louvers.

Dampers are available (Both Consealed type and Exposed type) in extruded aluminium section multi blade construction operated with abs gear & neoprene gasket at tips of blades to make dampers low lekage available in both manual & motorized type.

our vast experience and specialisation in designing, performance and application problems in characterised by a superior range of units and such diverse conditions as coll, temperate and humid ones.   casing available either in 18 / 20 g.i. Powder coated or 18 ggi duly painted blower made or aluminium is statically & dynamically balanced for smooth operation. fan motor sturdy three speed permanent split capacitor type fixed on proper resilient mounts. fandeck easily removable to facilitate speedier removal of motor or adjustment of fan wheel. drain pan liberally sized to cover the complete coil, water valve & fitting to catch the moisture from them. It is double skin in construction with 15mm tf insulation between 22 outer & 18g inner pan. option of s.s. Also available pans are with unique left/ right reversible connection feature. the unit can be installed with either left or right connection just by reversing the tray. cooling coil heat transfer cooling coil mode out or 10mm copper tubes and aluminium fins complete with purge.

CFC free PUF injected {25 mm43} panels in Double skin. CASING STRUCTURE (Thermal break on request.} Extruded alluminium hollow profiles frames self-supporting type.Designed for complete water drain inside made of alluminium304 stainless steel with alluminiumss drain nipple.

Dampers are available in 16g/18g/20g/22g G.1 multi blade construction fitted with galvaniszed 12.5 or 9.00 mm dia shaft and self lubricated bronze or plastic bushes smoothly operated with bakelite knob fitted on quadrant.

Aluminum extruded construction / M.S. Painted, with key type operation to regulate the air volume at individual grilled / diffusers. Plastic bushes provided for smooth operation

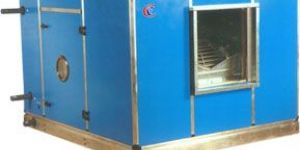

Type:Horizontal, vertical, ceiling, suspended as per customer's requirement. Applications:Suitable for cooling, heating, humidification, ventilation PanelsCFC free PUF injected {25 mm/43} panels in Double skin.CASING STRUCTURE (Thermal break on request.}Extruded alluminium hollow profiles frames self-supporting type. Drain Pan:Designed for complete water drain inside made of alluminium/304 stainless steel with alluminium/ss drain nipple. Filter:Synthetic media filter are provided as standard microvee & Hepa Filter can also be provided on request. Coil Section:Optimum circuit designed coils are provided for maximum heat transfer as per duty requirements. Fans:Nicotra or Kruger centrifugal fans are used either SISW or DIDW type with forward curve or backward curved driven with V belts as per static pressure requirements. Inspection Doors:Provided with limit switch for safe maintenance of blower and blower motor. Optional Attachments:Mixing chamber with box type opposed Louvre dampers.Microvee filter chamber with Microvee filter.Hepa chamber filter with Hepa Filter.

All extruded aluminium construction with adjustable blades, secured in nylon bushes to ensure quiet, smooth & rattle free operation, Suitable for any degree of deflection. Engineered to provide advantage of corrosion resistance & light weight construction.
