Reinforced Non-asbestos Sheet
WLT-002 Reinforced Non-asbestos Sheet The product is made of Non-asbestos Sheet that metal pressed and compounded by sheet stickiness,which is extensively applied in manufacturing various motor gaskets.It is a new material that will substitute asbestos products.The product has excellent performance in dilatability, sealing equality and long life etc..Mainly applied in automobile farming machine, motorcycle and engineering etc.,it is also can be used in high strength gaskets and cylinder gaskets etc.. Standard size: 1000x1000MM, 1000x1200MM, 500x1000MM, 500x1200MM. Thickness: 1.0 TO 2.5MM
...more
Reinforced Graphite Sheet
WLT-001 Reinforced Graphite SheetThis product is formed by mechanically or sticking flexible graphite sheets together with metal plate. It has good compressibility and resilience, excellent sealing property for microscopic surface irrgeularities and long working life. It is mainly used for making cylinder gaskets of engines and punching into all kinds of sealing gaskets. WLT-001 Reinforced Graphite SheetThis product is formed by mechanically or sticking flexible graphite sheets together with metal plate. It has good compressibility and resilience, excellent sealing property for microscopic surface irrgeularities and long working life. It is mainly used for making cylinder gaskets of engines and punching into all kinds of sealing gaskets. Length: 1500mm;1000mm;500mm Width: 1500mm;1000mm;500mm Thickness:1.0 to 4.0mm
...more

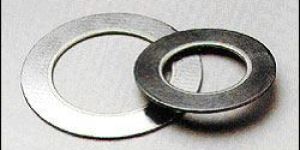

Reinforced Graphite Gasket
Graphite gaskets are cut from pure graphite sheet or graphite sheet with metal reinforcement, features excellent corrosion-resistance, high-and-low temperature resistance, good compression resilient and high internsity it can be used as sealing elements of pipe, valve, pump, pressure vessel, heat exchanger and condenser, etc. Other complex gaskets such as water gauge gasket and flange gasket with bolt holes are available. Wrapped with metallic stripe in the inner and outer circle borderline. Keep the former excellent performances. Can be installed and disassembled conveniently without damage. Thickness : 1.5mm, 2.0mm, 3.0mm, 4.5mm Application: Flanges, valve bonnets, heat exchangers, level indicatiors etc. Typical Service Fluids : High temperature & pressure steam, hot water, gases, heat midium, hydrocarbon, organic so;vents, acids, alkalis(PH0-14),LPG,LNG,liquefied oxgen, nitrogen and hydrogen etc.
...more

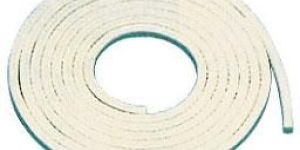

PTFE Packing
WLT-018 PTFE Braided PackingThe packing, made of raw film twists of pure PTFE dispersion resins, is suitable for valves and pumps used in food processing, pharmaceuticals, paper mills, fiber plants, where high purity and corrosion resistance is required. Technical data Max.working temperature:260ºCMax.working pressure:2.0 MpaPH value: 0~14
...more
mould packing ring
Made through molding of flexible graphite materials and various braided packings. Applications: Packing sealing for valves, pumps and reaction vessels. Specifications available: 10-1000mm
...more
kevlar packing
Uriversal packing which can be used for pumps in all types of industry such us chemicals, petrochemicals, sewage treatment, paper etc. For hot water applications it can be used uncooled up to 160°C. In view of the high stabity of aramide fibres we recommend a surface hardness of 40-60HRC for shafts and protective sleeves in order to prevent contact surface wear.
...more
gasket paper material
Gasket paper is use to the automobile, agricultural machinery, motorcycle,engineering machinery,etc., the medium is the lubricating oil , the spacer material under 150centigrade of suitable temperature. Other Supply: Asbestos Paper and Non-asbestos Paper Standard sheet size: 1000mm*1000mm, 1000mm*1200mm Thickness: 0.5mm---2.0mm Color: Green, Black, Brown, Blue, Gray, Brown etc..
...more
flexible graphite yarn
In order to manufacture different kinds of reinforced flexible graphite yarns to be used for making different kinds flexible graphited packings, we use flexible graphited as basic material, mixing with natural fiber, metal alloy wire (respectively) and proper binding agent, then through specially designed technological process. The packing made of these flexible yarns reinforced by different media, circumstance, temperature and pressure. Furthermore, for using these products under severely corrosion can be added into the graphited yarns for making the properties of the graphite sealing parts more perfect.
...more

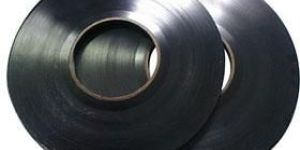

Flexible Graphite Tape
This tape was cutted of flexible graphite rolls,Graphite tape filler for spiral wound gasket,In-situ pump and valve gland packing, Manufacture of graphite packing rings,Facing material for camprofile type gaskets,Filler for metal jacketed type gaskets. Also manufacture Crinkled Graphite Tape. Length for one roll:50M;80M;100M,120M Width:4.0MM;5.0MM;5.4MM,5.5MM;5.7MM,6.0MM8.0MM,12MM,14MM Thickness:0.4MM;0.5MM;0.7MM,0.8MM
...more
Flexible Graphite Sheet
Flexible graphite roll (sheet) is made from flake graphite with high carbon content which is gone through chemical treatment, expanding under high temperature and then rolling.It has the characteristics of high temperature resistance, corrosion resistance and good elasticity, and is the basic material for making all kinds of reinforced graphite sheets, graphite tapes, packing and sealing gaskets. Working temperature-200~650ºC(in air),-200~3000ºC(in non-oxidizing media).
...more
Flexible Graphite Packing
Expand graphite braided packing, made of expanded graphite yarn braids, is resis-tant to heat, chemicals, and tight in sealing. It is widely used in the steam valves of power plant,or as static sealing in places where high temperature and pressure,or chemical corrosion(except concentrated sulphuric acid or strong oxidizing agents)prevails. Technical data Max.working temperature:850ºC(in non-oxidized atmosphere)450ºC(in oxidized atmosphere)Max.working pressure:25.0 MpaPH value: 0~14
...more
Exhaust Gasket Sheet
WLT-EGS Exhaust Gasket Sheet This product is made of non-asbestos sheet or asbestos sheet or flexible graphite sheet reinforced with both sides sheet metal (tanged 0.20 mm thick carbon steel). *carbon steel: tinplate. Applications Exhaust Gasket Sheet Mainly applies in making exhaust gasket for automobile and motorcycle. Type WLT-EGS-01: carbon steel + asbestos sheet + carbon steelWLT-EGS-02: carbon steel + non asbestos sheet + carbon steelWLT-EGS-03: carbon steel + non asbestos sheetWLT-EGS-04: carbon steel + flexible graphite sheet + carbon steel Technical data Temperature: 400ºC Max. pressure: 100bar Compressibility: 30-40% Recovery : >15% Length: 1000mm;500mm
...more
Cylinder Head Gasket
The gasket are made of a reinforced graphite sheet or non asbestos sheet by punching or pressing, depend on its excedllent corrosion-resistance, high-and-low temperature resistance, finecompression resilient the product is widely applied as cylinder head seals of automobile engine, diesel engine, air compressor, refrigerating machine, etc.
...more
Cut Gaskets
Carboninzed Fiber Packing rope
The packing is manufactured in the following procedures: polyacrylonitrile fiber is heated into carbonized fiber, which is woven into packing after impregnation in PTFE dispersion cont-aining graphite particles. It is used as dynamic sealing in the presence of media of weak acid or alkaline, or media that contain few grains of solid particles. Technical data Max.working temperature:260ºCMax.working pressure:10.0 MpaPH value: 2~12
...more

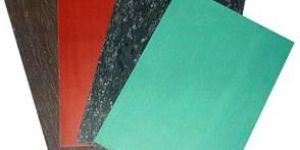

Asbestos Rubber Sheet
Asbestos Rubber Sheet (CAF Jointing Sheet) is made of excellent asbestos, rubber and other chemical materials.formed by rolling after special mix-ture treatment .the sizes not larger than 0.4~6.0mm can be supplied.it is mainly for such media as water and vapor and applicable to sealing and heat-insulation used in the industries as machinery, automobiles, farm, machinery and petroleum. Length:1000mm;1350mm;2000mm;4000mm, Width :1500mm , Thickness:0.4 to 6.0mm Density: 1.9g/cm3 Color: Blue, Green, Black, Red etc
...more
