Cuplock System Dealers in Delhi

• Material: Mild Steel
• Material: Metal
• Thickness: 0-10mm
• Application: Construction Use
• Feature: Durable, High Quality
• Finishing: Polished
• Diameter: 40mm

Delhi Shuttering Stores. provides cuplock vertical members. commonly known as Standards using optimum quality MS Pipes (40MM D). these members are the the fundamental load bearing members in cup lock scaffolding systems. and consist of top and bottom cup to lock the horizontal members in place.    The bottom cups are welded at a distance 0.5 rneters on the vertical pipe, whereas the top cup can be moved and retained by a small welded fixture, consecutive vertical members can be attached using Spigot / Joint Pins, and can be fixed with Base or U jacks and either ends.

• Country of Origin: India
• Color: Blue
• Size: 3 metre
• Product Name: Vertical Cuplock scaffolding

Cuplock or H-Frame Scaffolding is a framework of materials erected to provide a stable working platform.This is to facilitate the repair and construction of buildings. Cuplock or H-Frame Scaffolding is a system made up largely of metal tubes and woodenmetal platforms on which workers stand to access the building to work on. The scaffolding framework is secured at the base at ground level and tied to the building to be worked on to ensure it is steady and safe. Due to the nature of the work involved and the height at which workers must often operate, strict safety regulations and laws are in place to ensure that all scaffolding companies minimize risks to both their employees and to people on the ground.

M.S. CuplockCuplocks are available on hire for all construction and infrastructural projects. Cuplock can be erected for straight, curved and circular configuration for both access and support, and for independent and mobile towers.The success of cuplock lies in the node point or fastening method.Cuplock System is a proven multipurpose system which can be used for all forms of access and support structure in all sectors of the construction industry.The locking device is formed by two cups at 500mm c/c, Bottom cup welded to vertical tube and a movable upper cup. The forged blade ends of Horizontals are placed into the bottom cup, the upper cup is moved down and rotated to secure the horizontal in place and tightened by a hammer blow to give a rigid connection.

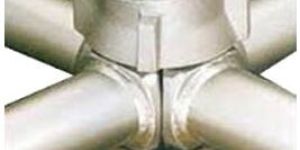

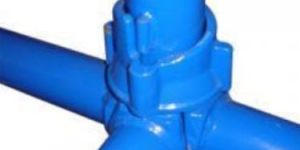

Cuplock Cup lock is a unique node point connection allows up to four horizontal members to be connected to a veritical members in one single action - without the use of nuts and bolts or wedges. The locking device is formed by two cups. Single node point action of unique locking make 'cuplockCuplock' a fast, versatile and optimized system of scaffolding for scaffolding for construction, demolition and maintenance projects throughout the globe.

Cuplock Scaffolds is a proven heavy duty support system but relatively light and easy to assemble. It is a system that can be used for multiple purposes and is suitable not only for false work support but to also access as well. It is suitable particularly for civil engineering and building projects, for example retail and office developments as well as motorway bridge. We are the best scaffolding cuplock system manufacturers & suppliers in Delhi, India.

• Feature: Cup Joint: Gives rigid connection between vertical and horizontal member.

Cuplock Standards are manufactured from (YST 240 Gr.) steel tubes which allows up to 57KN loadleg. The connection point is set at 5001000mm. The captive mobile cups are made out of malleable Cast-iron to ensure rough site handling and welded bottom cups are pressed from high quality steel. Loose square spigots are used to provide trouble free and stronger connection between verticals. We offer wide range of scaffolding cuplock system, cuplock horizontal ledger & cuplock scaffolding system.

Our organization offers a wide range of cup lock system that is manufactured using quality raw material to make it in compliance with the international quality standards. These are appreciated by our clientele owing to features like durable finish standards, high tensile strength, rust frees. Further, we also offer customization as per the given specifications.

We provide clients with a wide range of Cuplock Scaffolding System that has been designed to suit the requirements set by the market. We offer the Cuplock Scaffolding System in an array of dimensions. These Staircase Coup Cuplock Scaffolding Systems are highly durable in nature and have earned high praise from our esteemed clients all over the world.

Nirmann Scaffolding is a well known manufacturers of cuplock standard / vertical that is made using finest quality mild steel. These cuplock standard / verticals (open end) are available in standard sizes starting from 0.5 mtr. to 3 mtr. At 500 mm C/C, pair of cups are provided, but on demand we can also provide cups at 1000 mm C/C. Our Cuplock verticals are highly demanded by our regular clients due to its high strength, good quality and very reasonable prices. Nirman Scaffolding brings forth Cuplock Standard Vertical that is available in various grades and dimensions. It has cup joints at regular distances and the confined mobile top cups are ideal for facing the adverse condition of construction sites. Featured in accurate dimensions and compact designs, our offered range of Cuplocks are available in affordable prices. These are designed in standard and vertical form so as to meet the demands of various industrial sectors. Features of Cuplock Standard Vertical Easy to handle Anti-corrosive Sturdy Compact design Durable Application Areas of Cuplock Standard Vertical Residential & commercial buildings Other construction areas

The backbone of ARENA scaffolding arrangements is our cuplock system. Its unique qualities of being fastest, economic, versatile and safe make its use universal and irresistible. It is fabricated out of requisite grade virgin steel i.e 40 NB B-Class ERW steel tubes.

Ledger Ledgers are designed to be inserted into the pressings on the standard spaces to the required grid sizes in regular scaffolding or for providing support slab system.

Cuplock Scaffolding System, in which we trade, is provided in the standard 40 NB size; however, the demand for custom sizes is even well attended to by us. The scaffolding system of this type shows off design that is high in performance and safety. And its quality is made sure to be the best by our team of hawk-eyed quality controllers. We are one of the eminent Manufacturers, Exporters, and Suppliers of Cuplock Scaffolding System from Delhi, India. The system is doled out in the painted finish.
