Cyclone Dust Collector Dealers in Delhi

• Country of Origin: India

• Automatic Grade: Semi-Automatic
• Power Source: Electric
• Operating Voltage: 220 V-440 V
• Body Material: Mild Steel
• Corrosion Resistance: Yes

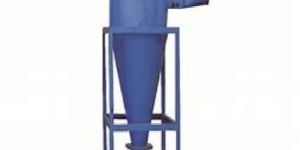

manufactured by techflow enterprises pvt ltd options single/ mono cyclone twin cyclones(in series or parallel as per application requirement) quad/hexa or octa & modular cyclones. features * no moving or rotating parts so minimal maintenance. * high separation efficiency with special inlet design. * application based designs for better performance * small footprint hence requires lesser floor space. * separation efficiency possible upto 98% for powders.   cyclone dust collectors are the basic & most conventional way to separate the heavy dust particles from the air stream using centrifugal cyclonic/vortex effect due to tangential rotation. this can be used where particle size of the dust is heavy, as primary separator to reduce the dust load on the fabric filter or dust collector & as spark trapper in some application.

We are offering cyclone type dust collectors. For collection of heavy dust particles or as pre collector in a dust extraction system for various processes either in single or twin triple or quad configurations sizes : 400mm dia to 3500 mm dia capacity : 1,000 m3hr to 25,000 m3hr (in single configuration) capacity.

• Dust Collector Type: Single Stage
• Inlet Air Speed (RPM/FPM): 20 to 25 m/s
• Voltage: 415 V
• Country of Origin: Made in India
• Material: Stainless Steel
• Airflow (m3/h or CFM): Up to 20000 m3/h
• Power (hp / kW): 1 to 250 hp
• Material Feature: ms , ss
• Usage: Shot Blasting Dust
• Material Grade: SS-316

Often the deciding factor when choosing a dust collection solution. Depending on the cost of ductwork and installation, a central dust collection system can initially cost less than purchasing 12 or more individual dust collectors.we design dust Collectors systems that filter dust from air generated through industrial processes and thus enable discharge of pollution free air.

Dust Collector has many applications however in a typical scrap yards, it is used to either recover valuable granular solid or powder from process streams, or to remove granular solid pollutants from scrap. Jain Hydraulics Dust collectorsare designed to ensure the scrap is completely dust and pollutant free. There are varieties of dust collectors; however our Dust collector ensures removes oils and foreign substances. The body is custom build as per the scrap yards.

We are engaged in manufacturing and supplying Cyclone Dust Collector in the international market. The Dust Collector Cyclones, we offer, are generally used as dust collector for buffing and polishing machine and Multi cyclone is used as a dust collector for boiler in Thermal Power Plant. The clients can avail the Dust Collector Cyclone from us in varied specifications and at the market leading price. Details Dust Collector Cyclone has an M.S construction. Multi cyclone tubes are of cast iron with vanes. In Multi cyclone number of cyclone tubes is used as per air quantity, one cyclone tube of diameter 250 mm can handle up to 10 M3/min. Specifications Size : 400 to 1600 mmCapacity : 1250 M3/Hr to 30,000 m3/HrStatic Pressure : Approx 90mmwg in each case

Our Cyclone Dust Collector operates on the principle of cyclone and vortex motion. The Cyclone Dust Collector is provided with a fully welded center cyclone to achieve higher efficiency. Since there are no moving parts in Cyclone Dust Collector, so it is easy to clean and maintain. Working Principle Centrifugal force acts on each and every particle to move them away from the cyclone axis towards the inner cyclone wallMovement in the radial direction is the result of two opposing forcesThe drag force of the air acts to carry the particles into the axisSeparation takes place because of the predominant centrifugal forcePower and air pass tangentially in to the cyclone at equal velocitiesPowder leaves the bottom of the cyclone via a locking deviceClean air spirals upwards along the center axis of the cyclone and passes out at the top

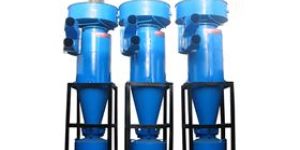

We are offering Multi Cyclone Dust Collector that consists of a number of small-diameter cyclones, operating in parallel and having a common gas inlet and outlet. Multi Cyclone Dust Collectors operate on the same principle as cyclones - creating a main downward vortex and an ascending inner vortex. Multi Cyclone Dust Collectors are more efficient than single cyclones because they are longer and smaller in diameter. The longer length provides longer residence time while the smaller diameter creates greater centrifugal force. These two factors result in better separation of dust particulates. Applications : Sugar industry Paper industry Processing industry Food industry Workshops Pharmaceutical industry

• Application: Grinding , Buffing , Kiln, Cement mfg. , Feed and Grain Processing, Wooden working, Rock Crushing et
• Size: 400 mm to 1800 mm dia 300 mm to 1600 mm
• Capacity: 1500 Qubic /hr. to 25000 Qubic/ hr

Polvent water evaporating type cooling system is one of the most reliable & efficient by which the atmospheric air gets cool and pumped into the department through GI duct. & Grills. Due to negative pressure created by the fan the atmospheric air enter through pre-filter into the cooling media (may be spary type or pad type). Where the air gets cool near to wet bulb temperature of water adiabatic. Further the cool air pumped into the department through GI dict & double deflection Grill with volume control damper.

For collection of heavy dust particles or as pre collector in a Dust Extraction system for various processes either in single or twin triple or quad configurations Sizes : 400mm Dia to 3500 mm Dia Capacity : 1,000 m3hr to 25,000 m3hr (in Single configuration) Capacity

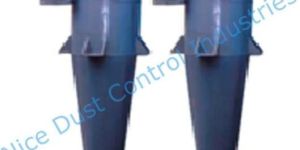

NDCI Cyclone Separator are ideal for separating dust with particle size greater than 5 um. Cyclone Separator provides a very cost effective solution to the problems of dust collection, materials and for conveying bark and chips. Cyclone Separator unit basically consists of a cylindrical and a conical portion. As the dust leaden air enters the inlet port, it spirals downwards in an outer vortex and comes out of the unit in an inner vortex. It uses centrifugal force for the separation of particles. Centrifugal action causes the air material to move around the inside walls of the cyclone, from where the material drops by force of gravity at the bottom leaving the air to escape through the top. Cyclone Separator Salient Features :* Low resistance to flow* Simplicity and reliability* No moving parts* Low maintenance requirement

Cyclone Dust collector of the conveying air and the pulverised material is achieved in the high efficiency cyclone dust collector. The material collected at the cyclone bottom hopper would be removed by a rotary air lock valve. This would eliminate the dust pollution at the bottom of the cyclone where the dried material would be discharged.

• Voltage: 415 V
• Airflow : 1500 m3/h or CFM
• Material: Mild Steel
• Power : 2hp
• Usage: Powder Processing Industry
• Bag Capacity: 30kg
• Inlet Air Speed : 1800 RPM
• Filtration: 10 micron
• Frequency: 50 Hz
• Phase: Three Phase
• Power Source: Electric

Cyclone provides the ideal solution to the problem of collecting materials, both for exhausting dust and shavings and for conveying bark and chips. The right duty type is designed for non-abrasive, granular of fibrous dusts and shaving-the heavy duty type for chips or other material in pieces.

HANDLAIR Cyclone type dust collectors named after the weather phenomenon are large tunnel shaped metal tube connected to ducts often used in a large variety of industries, where , the emission level requirements are not stringent. These types of units are also used before bag filter type dust collectors as pre collectors, where, the dust generation is quite high and emission levels are restricted.     Dust particles are sucked in at the top side. Air containing fine dust, blows out while the chips and large dust particles fall out through the bottom in to a drum or a screw conveyor. Blown out five Dusty air is filtered again, using media filtration or wet scrubber as per requirement. These are generally used in, Foundries, Metal spraying, Pneumatic conveying, Cement Industries, Food Processing, Zinc Spraying, Recycling, Powder coating, Shot blasting, Wood working, Pharmaceuticals,Transfer points, etc. HANDLAIR cyclone type dust collectors are widely used for a variety of applications like grinding, polishing, buffing machines etc. The capacity of these units ranges from 300 cu.mtr/Hr to 50000 cu.mtr/Hr. In single as well as in multiple units. HANDLAIR unit type dust collectors comprises of compact dust collectors complete with centrifugal blower, its driven motor, dust collection bin and supporting frame work. These units can be supplied either in mild steel or stainless steel construction as per requirement. These dust collectors are ideal for using with a wide range of applications like grinding, polishing, buffing operations etc.

• Material: Stainless Steel
• Country of Origin: Made in India
• Voltage: 415 V
• Airflow (m3/hour or CFM): 250-350 m3/hour
• Dimension (L x B x H): 25x180x240 mm
• Cyclone Type: Twin
• Interior Dia (mm): 125-660 mm
• Cone Angle: 8-30
• Frequency: 50 Hz

Multi Cyclone Dust Collector Manufacturer & Supplier in Delhi. We are well known suppliers as all types of Multi Cyclone Dust Collector, Multi Cyclone Dust Collector manufacturer, Multi Cyclone Dust Collector Supplier, Multi Cyclone Dust Collector India, Multi Cyclone Dust Collector Delhi, Multi Cyclone Dust Collector Price, Multi Cyclone Dust Collector Design.
