Diathermy Machine Dealers in Delhi

• Application: Hospital,Clinical,Personal
• Condition: New, Used
• Driven Type: Electric
• Voltage: 0-110 V, 110-220 V, 220-440 V
• Frequency: 50 Hz, 60 Hz
• Material: Steel
• Shape: Square
• Packaging Type: Corrugated Box, Carton

• Certification: CE Certified
• Application: Clinical Use, Hospital Use
• Weight: 0-2kg, 2-4kg, 4-6kg
• Feature: Actual Film Quality, Adjustable, Easy To Operate
• Voltage: 110V, 220V
• Frequency: 50Hz, 60Hz
• Warranty: 1year
• Country of Origin: India
• Product: SWD
• Usage: Effective in inflammation of shoulder joint
• Size: Dimension(L x H x D) : 480 x 900 x 375 mm

We are engaged in developing Short Wave Diathermy Pad for our valuable clients. These are available in various specifications as per the requirements of the esteemed patrons. Our client base is spread all across the world due to the qualitative range. Our Short Wave Diathermy Pad hold the following features: Highly reliable Corrosion resistant Offers high performance

• Voltage: 110V, 220V, 280V
• Weight: 10-20Kg, 20-30Kg, 30-40Kg
• Condition: New,Old
• Material: Mild Steel,Plastic
• Power Source: Electric
• Color: White, Grey
• Features: Quality Tasted, High strength

• Weight: 45Kg
• Power Output: 500 Watts RF
• Operating Frequency: 27.12 MHz
• Wave Length: 11 Meters
• RF Power Source: Triode Valve
• Fuse: 6Amp.
• Mains Supply: 220v 50Hz
• Dimensions: 870x 400x400HxWxL(mm)

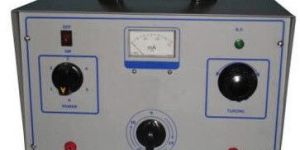

PhysiTherm-500 is a heavy duty Shortwave Diathermy Equipment mounted on Castors for its free movement. It generated high frequency waves which are used for heating the body tissues. It is mainly used to cure Rheumatoid Arthritis, Inflammatory diseases, Sinusitis, Spondylosis, Sprains & Strains etc.

• cooling fan: 500w

We are offering shortwave medical diathermy-500w.(with pad electrodes & cooling fan). High power medical diathermy incorporating a high power transmitting oscillator valve & solid state rectifiers; provides r.f. Power up to 500 watts for intense deep tissue heating without discomfort at the surface. Housed in an elegant mobile cabinet & designed to meet heavy work load in a hospital. Specification: * frequency: 27.12mhz. * output: continuous, maximum: 500 watts. * intensity: adjustable, in 5 steps. * electrodes: one pair condenser pads with felt spacer & cover. Size: 15cm x 25cm. * tuning: manual, with tuning control knob. * timer: 30 minutes timer with auto-cut. * cooling: with 10cm dia. Instrumental fan. * voltage: 220-240v. * accessories: a, one, pair condenser pads cable. B, one, power main cable. C, spare fuses. d, one, shortwave test tube. E, two, velcro strap to tie hold condenser pads with the body. F, one, automatic voltage stabilizer. Note: valve of swd-500 carries no guarantee as it is just like an electric bulb that may fuse any time.must use volt.stabiliser with unit

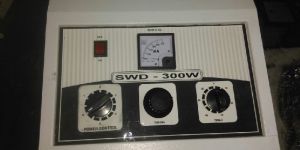

JULLUNDUR (JALANDHAR) SURGICALS ENTERPRISES is one of the leading Manufacturer, Supplier & Exporter of Shortwave Diathermy Machine or SWD Machine in Delhi, India.   Shortwave Diathermy Machine or SWD Machine is available in Shortwave Diathermy Machine or SWD Machine 250W Shortwave Diathermy Machine or SWD Machine 500W

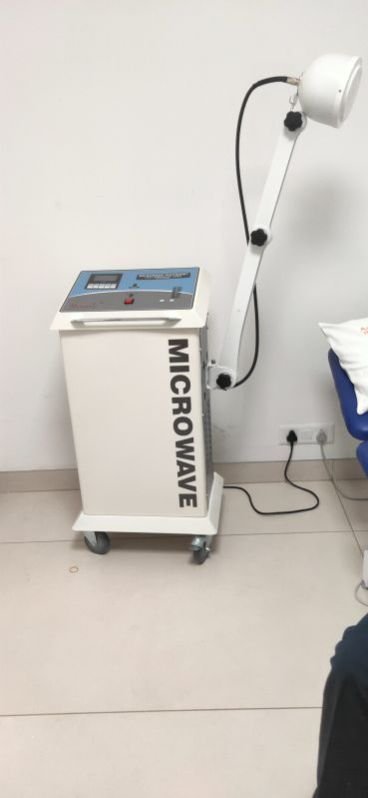

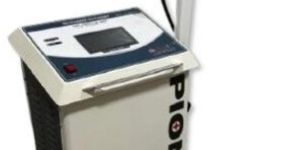

• Microwave Diathermy for Physiotherapy: Microwave Diathermy for Physiotherapy

Main characteristics: microwave therapy has been applied for many years in and abroad, its curative effect has generally been affirmed. When the microwave acts on the body organism, it will arouse high frequency vibration of the hydronium, hydrone and dipole in histiocyte. When the output energy of the microwave is low and radiant heat is weak, it can accelerate the local blood circulation, expedite local metabolize, improve local immunity thus it can improve local blood circulation effectively, promote hydrops absorbability, diminish inflammation and acesodyne. When the output energy of the microwave is high and radiant heat is strong, it can cause degeneration, coagulation and necroses of the proteid, so the microwave can cauterize and cut. In operations, the microwave treatment has good hemostasia effect and does little harm to organism (no charring) so to make patient less pain and cost less. Microwave therapy equipment applies the 2450mhz frequency microwave. When the patients have the physical therapy (using physical therapy radiator), the microwave energy will generate internal source heat after being absorbed by organisms, the effective depth is 3-5cm.when the patients have therapy(using the therapy probe), the probe will focus the microwave energy and act on the touch point between the probe and organism to set heat, cauterize and cut. Technical characteristic: 1, equipment model: class i, type b, no category ap, apg equipment , cold method: fan. 2, operation method: continuous operation with short-time loading. 3, frequency:2450mhz±30mhz 4, output power:0~100w adjustable for therapy; 0~40w adjustable for physical therapy 5, timing error:not exceed 1% of timing limit 6,voltage standing wave ratio :≤2.5

• Brand Name: Physio Yantra
• Model Number: Shortwave Diathermy
• Place of Origin: Delhi

We are offering shortwave diathermy. Technical specification: power output : 500 watts rf operating frequency : 27. 12 mhz. Wavelength : 11 meters rf power source : rf generator (solid state) main supply : 220v50hz

• Color: color

Product Details: Minimum Order Quantity 1 Piece Product Description: Technical Specification: Power output : 500 watts rf Operating frequency : 27. 12 mhz. Wavelength : 11 meters RF power source : RF generator (solid state) Main supply : 220v50hz Additional Information: Pay Mode Terms: LC (Letter of Credit),DA,DP,TT (Bank Transfer),Western Union,Other

• Type: Long Wave Diathermy Equipments
• Certification: CE Certified, ISO 9001:2008
• Application: Clinical, Hospital, Personal
• Color: Brown, Grey, White, Blue
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Electric
• Warranty: 1yrs
• Automation Grade: Automatic

• Usage: Clinical, Hospital
• Colour: White
• Item Weight: 1.2 kilograms
• Input Power: 190V to 230V
• Frequency: 455KHz

Specifications Shot wave Diathermy Machines We are offering a wide range of heavy duty shortwave diathermy-500 equipment that is mounted on castors for its free movement. Shortwave diathermy has the ability to generate high frequency waves, which are used for heating the body tissues. This diathermy is mainly used to cure various diseases such as rheumatoid arthritis, inflammatory diseases, sinusitis, spondylosis, sprains & strains. Technical specifications: Power output: 500 watts RF Operating frequency: 27.12 MHz Wave length: 11 meters RF power source: Triode valve Fuse: 6 Amps   Manual

• Application: Clinical, Hospital, Personal
• Weight: 0-100kg, 100-200kg, 200-300kg, 300-400kg, 400-500kg
• Color: White
• Voltage: 110V, 220V, 380V, 580V
• Condition: New
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Electric
• Warranty: 5yrs
• Automation Grade: Automatic
• Color: Metallic
• Application: Industrial
• Durability: Long Life
• Surface Finishing: Polished
• Resistivity: Rust Resistant
• Material: Metal
• Drive Type: Electric
• Display Type: Digital

• Type: Long Wave Diathermy
• Application: Clinical, Hospital
• Weight: 1-kg, 2-4 Kg
• Voltage: 110V, 220V
• Condition: New
• Power: 1-1000 W
• Driven Type: Electric
• Wave Length: 1-150 Mtrs, 150-300 Mtrs
• Product Frequency: 0-1 MHz
•  Frequency: 50 Hz
• Country of Origin: India
• Intensity: 10 - 190mA
• Timer: 1 minute

This valve IS USED for diatheramy 500 watts, pvc welding machines, pre- HEATING purpose, AND for medical purpose the 833a IS A power triode INTENDED FOR USE in rf amplifier, oscillator, or class b modulator service. The 833A features rugged construction for high power rf transmitter applications. The envelope is fabricated from hard glass intended specifically for the high-temperature operation of transmitting tubes. The internal tube parts are supported by low loss ceramic insulators for high-temperature operation and high voltage hold-off. The rugged grid structure is particularly well suited for industrial heating applications. Technical specifications Electrical Filament Thoriated-tungsten Voltage (ac or dc) 10. 0 ±0. 5 vCurrent 10 a Amplification factor (average) 35 Direct interelectrode capacitances (grounded filament) grid to plate 6. 3 pf grid to filament 12. 3 pf plate to filament 8. 5 pf Maximum frequency for full ratings 30 mhz Mechanical Cooling Forced air Socket None. Post terminals Operating position Axis vertical, with filament posts up or down; horizontal with plate in vertical plane (on edge) Nominal dimensions diameter overall height 116. 8 mm (4. 60 in. ) 219. 2 mm (8. 63 in. )
