HM35 Precision Digital Pressure Manometer
Get Price Quote
HM35 Precision Digital Pressure Manometer Series HM35 Precision Digital Pressure Manometer Up to 0.05% Accuracy, Graphical Display, Data Logging Capability THE HIGH PRECISION SERIES HM35 DIGITAL MANOMETER is designed to reliably measure and log pressure measurements for critical applications. This family of manometer can measure absolute pressure, differential pressure or gage pressure with up to 0.05% accuracy. The data logging function can store up to 10,742 readings and transmit the readings to a PC through an IR serial port. The large display can graphically display trends in the data as well as peaks and valleys. The series HM35 comes standard with a calibration certificate so that the instrument can be used as a secondary calibration standard when testing other pressure instrumentation. This manometer is ideal for laboratories, calibration facilities, and other critical pressure applications. Product Applications Calibration facilities Laboratories ModelDescription HM3531DLC100Differential pressure manometer, range 0-28" w.c., 0.05% accuracy. HM3531DLF100Differential pressure manometer, range 0-120" w.c., 0.05% accuracy. HM3531DLH100Differential pressure manometer, range 0-14.5 psi, 0.05% accuracy. HM3531DLJ100Differential pressure manometer, range 0-29 psi, 0.05% accuracy. HM3531DLK100Differential pressure manometer, range 0-108 psi, 0.05% accuracy. HM3531DLM110Differential pressure manometer, range 0-245 psi, 0.05% accuracy. Specifications Service:Air and compatible gases. Wetted Materials:18/8 stainless steel. Accuracy:(Includes linearity, hysteresis, and repeatability): Depending on model. ±0.20% full-scale ±1 digit; ±0.10% full-scale ±1 digit; ±0.05% full-scale ±1 digit. Temperature Limits:32 to 122°F (0 to 50°C). Storage Temperature:-4 to 140°F (-20 to 60°C). Humidity:Maximum 95% RH non-condensing. Display:Graphical back lit LCD. 128 x 64 points. Power Requirements:(3) 1.5 V AA alkaline batteries, installed functional, user replaceable. Can operate on 6 to 9 VDC external power. Current Consumption:25 mA without back lit display, IR, or buzzer. Memory:10,742 readings. Recording intervals adjustable from 1 second to 24 hours or manual. Case Protection:IP54 (NEMA 3). Weight:10.5 oz (300 g). Process Connections:Hose 4/6 mm or 1/8" NPT. Agency Approvals:CE. Features Able to record up to 10,742 readings, which can be downloaded to a PC Up to 0.05% accuracy for use in critical applications Measure absolute, differential, or gage pressure Accessories Model NumberDescription HM28-01/8" NPT adaptor. HM35-1Communication software key. HM35-2Infrared RS232 serial adapter. HM35-3External universal power adapter. HM35-PKGas Pressure Maintenance Kit. HM35-VKVacuum Pressure Maintenance Kit. Related Products Series 477A Handheld Digital Manometer Series PCHP Pneumatic Calibration Hand Pump
DIGITAL MANMETER KELLER LEO2
30,000 Per Piece
DIGITAL MANMETER KELLER LEO2 Model : LEO2 Temperature : 0 to 50°C Range : -1 to 700 bar Battery Life : 1000 hours Accuracy : ± 0.1% of F.S Output : NIL Description : LEO 2 is a compact, micro-processor (ìP) controlled, highly accurate and versatile pressure measuring instrument with digital indication. The piezoresistive pressure transducer as the heart of the instrument has gone through extensive pressure- and temperature tests. Its characteristics are stored in the instruments internal EEPROM. The ìP of the LEO 2 reads the characteristic values and calculates therefrom the pressure to an accuracy of < 0,1 %FS at room temperature. The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the Max.- or Min.- pressure since the last RESET. LEO 2 has two operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function or unit. The right key is also used to switch between the Max.- and Min.-value. Specifications : Pressure Range : -1…3 bar Resolution : 1 mbar Overpressure : 10 bar Number of Digits : 5 Digit Accuracy RT (room temperature) * : < 0,1 %FS Total Error Band (0…50 °C) * : < 0,2 %FS Storage- Operating Temperature : -20…70 °C 0…50 °C Compensated Temperature Range : 0…50 °C Supply : 3 V battery, type CR 2430 Battery Life : 1’000 hours continuous operation Pressure Connection : 716”-20 UNF (adapter G 14” included) Protection, CEI 529 : IP 65 Diameter x Height x Depth : 59 x 95 x 32 mm Weight : 125 g
Best Deals from Digital Manometers

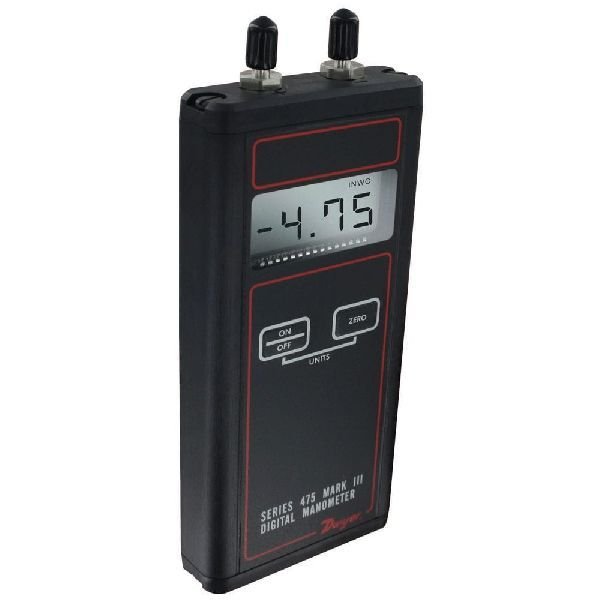

Handheld Digital Manometer
Get Price Quote
Digital Manometer
8,500 Per Piece
Digital Manometer
8,000 Per Piece
Series 476A Single Pressure & Series 478A Digital Manometer (Series 476A AND 478A)
Get Price Quote
Omicron DIGITAL MANMETER KELLER LEO2
Get Price Quote
Digital Manometer (Pressure Meter)
Get Price Quote
Digital Manometer (Pressure Meter), Digital Micrometer Head
