Digital Planimeter Dealers in Delhi

Planimeter with sliding base pattern having a mechanism consisting of circular disc roller, vernier, along with tracing and fixing arms of suitable range along with fixing and tracing points. The planimeter should be provided with the values of multiplying constant and additive constant. Improved sliding bar pattern for measuring areas direct from drawings. Complete in a case with instruction booklet.   Size available are: 710 mm (28”) ISI Specifications 1 meter 1125 mm (45”)

• Material: Metal & Plastic
• Application: Industrial
• Main Unit Weight: 750g

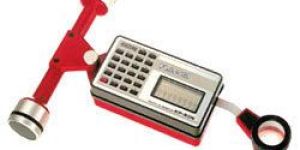

The most standard model of “SOKKIA” N-Series has made the excitingly highest attainment in the history of sokkia digital Planimeter ever made. Measuring capacity is remarkably enlarged. Measuring by 6-digit pulse count enables to measure 100 times larger accumulative area than ordinary planimeters. Easy calculations of Cumulative and Average Value Measurement.

Offered in a roller-type model this planimeter features an unique 6-digit pulse count operation that permits cumulative measurement of areas up to 10m-100 times the measuring capacity of ordinary planimeters. Enhanced with advanced micro-processors for accuracy, this instrument is ideal for many applications where precise large area measurements are needed, such as in civil engineering, surveying, forest management, mapmaking and agriculture. Other features include hold and measuring control, clear liquid crystal digital readout, and scale readings in either Metric or English. Comes packaged in a plastic carrying case with AC adapter (battery included) and operating instructions.   Specifications: Max. measuring range: 325mm vertical; 30m horizontal Accuracy: within ±0.2% (within ±2/1000 pulses)

• DIGITAL: PLANIMETER

Special features of Koizuimi Placom Digital Planimeter N-Series Measurement by 6 digit pulse count This N-Series can measure the area by pulse count of 6-digits. This method enables a larger cumulative measurement of area (Up to 1Om2) Maximum cumulative measurement value of 10m2 With the measurement by 6-digit pulse count, the N-Series Planimeter can measure a larger area by 100 times than ordinary Planimeter. The conventional planimeter has a maximum cumulative area to measure only 0.1m2. If measurement value shows over 0.1m2 when measuring, the display is to be reset to “O”. This requires to register the numbers of how many times these resettings are occurred. With the New PLACOM N-Series, there is no need of these troublesome procedures. Easy conversion function of unit and scale KP-90N and KP-80N can convert easily the measured area value into a new area value in a newly desired unit and with a newly desired scale value. KP-92N and KP-82N can convert the unit between in2 and cm2 Hold memory function In cumulative measurement, this Hold Memory function is effectively used. If an error occurs in measuring, press C/AC key. Then last measured value is appeared by pulse oount. Since previous measured values before error are stored, there is no need to another measurements from the beginning. Automatic shifting of unit to upper unit When the measured area value overtlows the displayed figures of 8 digits, the measured area value is calculated and displayed by an upper unit. When the overflows is occurred in the uppermost unit, km2, acre, the measurement can be continued by pulse count display. Average value measurement In order to get better result of measurement, Mean value measurement is recommended. This measurement can be easily done on this N-Series. Measurement of an area with different lateral and longitudinal Scale. Auto-power-off function for energy saving Applications Construction and civil engineering Land developing planning Machine designing Data analysis in statistics Architecture and interior designing Forestry area Ship designing Medical research Agriculture

Koizuimi Placom Digital Planimeter KP-21C Intelligent Planimeter KP-21C The KP-21C is a new era of planimeter technology. Revolutionary and Enhanced Functions. PLOT-key tracking device with easy One-Touch action. Advanced features for exceptional cost performance to meet all of your present and future needs. [vc_tabs interval="0" width="11" el_position="first last"] [vc_tab title="Description" tab_id="description"] You can measure 2D

Our range of plainmeter is offered at industry leading prices. This range is customized as per the specifications of our clients and is designed and developed at par various industrial standards. Specifications: Roller type with computing functionHold memory functionAuto power off, unit & scale values - KP-90Display :10 Symbols SymbolBatt E SCALE,MEMO, HOLD, cm2, m2, km2, ft2 acre,Transverse direction roller movement unlimitedPrecision- within +_ 0.2%,Power Supply- DC, Internal rechargeable, battery. chargeable with AC adapterOperating Time- around 30 Hours using Battery Display- LCD 6 digit,Measuring Range- 325mm width – roller rotating length 30m

• Display: LCD 6 digit
• Model: ALABS-A19-048
• Categories: Civil Engineering Instruments
• Power Supply: DC, Internal rechargeable, battery
• Measuring Range: 325mm
• Roller length: 30m
• Operating Time: Around 30 Hours using Battery
• Accqurecy: +_ 0.2%

Digital Planimeter to our valuable clients. The quality of the Digital Planimeter is the outcome of the sophisticated technology and high grade material that are utilized for its manufacturing. The Digital Planimeter is suitable for a wide range of application including construction. The Digital Planimeter is properly packed in original case with instruction manual. With Re-chargeable adopter that allow you to take area and line measurement from maps and other sources with an accuracy within 2% suitable for a wide range of application including construction, packed in original case with instruction manual. Planimeters are area measuring tools.
