Direct Shear Apparatus Dealers in Delhi

Contact us for obtaining superior quality Direct Shear Apparatus! Located in Delhi, India, we are a trustworthy Manufacturer, Exporter & Supplier of Direct Shear Apparatus. Designed in compliance with the stated industry-specific norms, our Apparatus is obtainable in bulk orders. Owing to our efficient logistics network, customers can rely on us for handling any order of Direct Shear Apparatus and ensuring delivery within the stipulated time.More about Direct Shear Apparatus : The Direct Shear Apparatus we offer is designed as per IS: 2720 (Part-VIII), ASTM D 3080 standards. Direct Shear Apparatus is extensively used for determining the Direct Shear Strength of Soils on specimen size 60mm x 60mm x 25mm. The Direct Shear Apparatus we manufacture is electrically operated to give a single constant rate of strain of 1.25mm/min and is suitable for 230v A.C. We Export and Supply Direct Shear Apparatus at economical prices.   Loading Unit : The loading unit is provided with V strips and roller strips for frictionless movement of shear box housing. Supplied with load yoke with direct and lever system for applying load. Normal stress capacity 8kg/sq.cm. load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre collaborated loading yoke. Shear Box Assembly : Comprises Direct Shear box in two halves for a square specimen size 60 x 60 x 25mm one pair of plain gripper plates, one pair of porous stones, one pair of perforated gripper plates, one top loading pad.Shear Box Housing : It accommodates the Direct Shear Box assembly. Complete with two ball roller strips.Specimen Cutter : Used for cutting 60 x 60 x 25mm specimen from larger samples Set of weights to give a normal stress of 3kg/sq.cm. through leverage as follows. To give Kg/cm.sq. Qty. : 0.05 - 4 Nos. 0.1 - 1 No. 0.2 - 1 No. 0.5 - 3 Nos. 1.0 - 1 No. Supplied With Essential Accessories : High sensitivity compression proving ring cap 200kg One consolidation dial gauge 0.01 mm x 25mm and one strain dial gauge 0.01mm x 25mm One strain dial gauge 0.01mm x 25mm. Optional Accessories : Additional set of weights to give a normal stress of 5kg/cm2. Soil Sampler for 60mm x 60mm specimen and test forms pad of 50. (Extras) Porous stone for 60mm x 60mm size sample available in pairs. (Spares)

Our company is engaged in manufacturing and supplying a wide range of Direct Shear Apparatus for cohesive soils is conducted using motorized and manual mode shear box equipment. This apparatus is used to determine the shear strength of soil and find application in construction (buildings, bridges, and dams), testing of rock samples and testing of minerals.Specifications :ENTEK-032 Direct Shear Apparatus, IS: 2720 (P-xiii), IS: 11229,ASTMD3080,BS 1377. 12 rates of strains 1.25 to 0.0002 mm/min. Consists of: Shear box assembly. Halves of shear box-set of two, Plain gripper plates - pair, Perforated gripper plates-pair, Porous stone-pair, Top Loading pad, Base plate, Shear box housing with two ball roller strips, specimen cutter, weight to give normal stress of 3 kg/cm.sq. Comprises of: 0.05 kg/cm.sq.4, 0.10 kg/cm.sq. 1, 0-20kg/cm.sq 1, 0.50 kg/cm.sq3, l.Okg/cm.sql. electrically. 220V, 1 Ph, 50 cycles, AC supply. ENTEK-033 : Direct Shear Apparatus Single rate of strain 1.25mm/min. Motorised.ENTEK-034 Direct shear apparatus, Hand operated. Accessories: High sensitivity Proving ring 2 kN (200 kg) cap. with ENTEK calibration report. Dial gauge 0.01 x 25 mm travel. Spares : Shear Box moulds in two halves with Perforated Gripper plates, Plain gripper plates & porous stones.ENTEK-035 The apparatus is similar to ENTEK-029 model, but with Electronic outfit in place of Proving ring and Dial gauges. Electronic Conversion kit Consists of: 3 Channel Digital indicator, Load Cell 2 kN cap Universal type, Displacement Sensor. ENTEK-036 Direct Shear apparatus. Large, IS: 2720 (P-xxxix,sec-l), IS: 11593. Motorised cap. 50 kN with 72 speeds. Specimen size: 30x30 cm, change gear-12,415V, or 1 Phase, AC supply. Loading Unit Supplied with load yoke with direct and lever system for applying load. Normal stress capacity 8kg/sq.cm. Load is applied either directly of through a counter balanced detachable lever. Provision is made for load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading yoke. The loading unit is provided with V strips and roller strips for frictionless movement of shear box housing.   Shear Box Assembly Comprising Direct Shear box in two halves for a square specimen size 60 x 60 x 25 mm one pair of plain gripper plates, one pair or perforated gripper plates, one pair or porous stones, one top loading pad. Shear box housing: Accommodates the Direct Shear Box assembly. Complete with two ball roller strips.

Our team of quality examiners conducts stringent tests for ensuring the product quality.We team makes sure that all the trade transactions are made keeping all the details of the clients confidential.   Salient Features : High sensitivity compression proving ring cap of 200 kg Consolidation dia gauge 0.01 mm x 25 mm One strain dial gauge 0.01 mm x 25 mm One strain dia gauge 0.01mm x 25 mm Optional : Additional set of weights for normal stress of 5 kgcm2 Soil sampler for 60 mm x 60 mm specimen and test form pad of 50 Spares like porous stone for 60 mm x 60 mm size sample in pairs

Direct Shear Apparatus has an additional facility of determine the residual shear strength and 12 rates of strain. The Direct Shear Apparatus is suitable for testing a square specimen of 60mm X 60mm X 25mm. We bring for the clients Direct Shear Apparatus of superior quality at affordable rates. Components Loading Unit : consists of a load frame with V-strips on which shear box housing rests and load yoke with direct and lever system for applying normal load to capacity of 8kg/cm2, fixture for proving ring, bracket for holding consolidation dial gauge and lead screw for application of shear stress and an additional arrangement for conducting residual shear strength and choice of 12 rates of strain by electric operation through a turret gear system. Rates of strain : 1.25, 0.625, 0.25, 0.125, 0.05, 0.025, 0.01, 0.005, 0.002, 0.001, 0.0004 and 0.0002mm./min. Shear box assembly: for square specimen, size 60mm. X 60mm. X 25mm. complete with accessories. Features DurableResistance to rustEasy to controlLow maintenanceCost-effectiveProtected

• Power: 0.75 Kw
• Brand Name: Steco
• Automation Grade: Semi-Automatic
• Phase: Single Phase
• Material: Mild Steel
• Voltage: 220 V

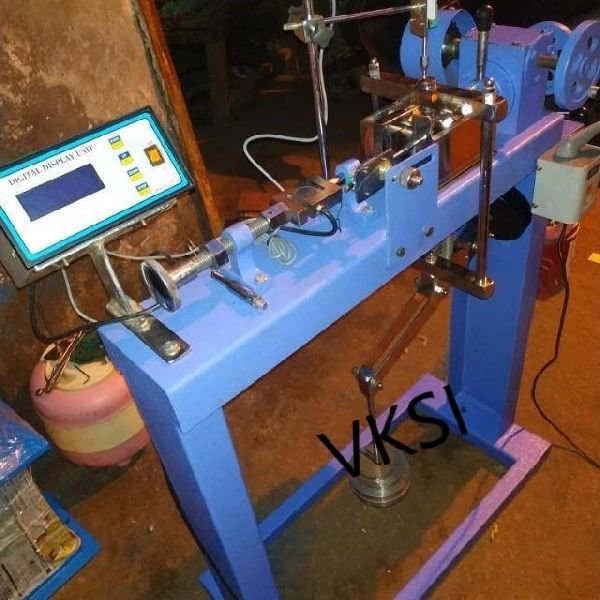

Located in Delhi, India, we are counted amongst the prominent Manufacturers, Exporters and Suppliers of Direct Shear Apparatus. Intricately designed using high-quality raw material under the guidance of our experts, the Direct Shear Apparatus we make available are high in demand in the international market. They functional smoothly and have robust construction and high durability. For price quotes, stay assured to get what’s the best in market. Highlights : The apparatus consists of : - EKE 10401 Shear Box Assembly Comprises of Type of Shear : Direct/Residual measurement Operation : Motorised Rates of Strain : 1.25, 0.625, 0.25, 0.125, 0.05, 0.025, (mm/min) 0.01, 0.005, 0.002, 0.001, 0.0004, 0.0002 Specimen Size : 60 x 60 x 25mm Power Specifications : 220 V, 50 Hz, Single Phase, AC supply

• Country of Origin: India
• Type: Automatic
• Certification: CE Certified
• Application: Laboratory Use
• Weight: 50-100kg
• Warranty: 1 Year

 Loading Unit:- Vertical load, capacity 8 kg/sq. cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load for the applied either througe a steel ball recessed in the loading pad or directly through a base of the loading yoke. shear load capacity 400 kg.Direct shear box for square specimen size 60X60X25 mm complete with one base plate, two plane gripper plates, porous stones and one loading pad. shear box housing,complete with two ball roller strips. Specimen cutter for 60X60X25 mm specimen.

• Driven Type: Electric
• Warranty: 1year
• Color: Metallic, Silver
• Application: Industrial
• Surface Finshing: Polished
• Resistivity: Rust Resistant
• Material: Metal

The Direct Shear Apparatus is inclusive of Loading Unit, Shear Box Assembly, Shear Box Housing and Specimen Cutter as well as a set of weights. Being one of the most trusted Manufacturers and Suppliers of Direct Shear Apparatus, we offer the best grade apparatus that is hand operated. The Direct Shear Apparatus is used to determine the direct shear strength of soil specimens of 60 mm x 60 mm x 25 mm. Salient Features : High sensitivity compression proving ring cap of 200 kg Consolidation dia gauge 0.01 mm x 25 mm One strain dial gauge 0.01 mm x 25 mm One strain dia gauge 0.01mm x 25 mm Optional : Additional set of weights for normal stress of 5 kgcm2 Soil sampler for 60 mm x 60 mm specimen and test form pad of 50 Spares like porous stone for 60 mm x 60 mm size sample in pairs

Used to determine the resistance to shearing of all types of soil specimens both consolidated and drained, undisturbed or remolded samples. Meets:- IS: 2720 (Part 13), ASTM D 3080, IS: 2720 (Section 1 - Part 39),IS: 11593-1986, IS: 11229 - 1985, 2720 (Part 13) - 1986

For determination of the direct shear strength of soils on specimen size 60 mm x 60 mm x 25 mm. The apparatus comprises of the following:Loading Unit: Supplied with load yoke with direct and lever system for applying load. Normal stress capacity 8 kg/sq.cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading yoke, the loading unit is provided with V strips and roller strips for frictionless movement of shear box housing.Shear Box Assembly: Comprising Direct Shear box in two halves for a square specimen size 60 x 60 x 25 mm one pair of plain gripper plates, one pair of perforated gripper plates, one pair of porous stones, one top loading pad. Shear box housing: Accommodates the Direct Shear Box assembly. Complete with two ball roller strips.Specimen Cutter: For cutting 60 x 60 x 25 mm specimen from larger samples.Set of weights to give a normal stress of 3 kg/sq.cm. through lever as follows:To give Kg/sq.cm.-Qty. 0.05 4 Nos. 0.1 1 Nos. 0.2 1 Nos. 0.5 3 Nos. 1.0 1 Nos.Complete set as above but without proving ring.Essential Accessories: High sensitivity compression proving ring cap 200 kg One Consolidation dia gauge 0.01 mm x 25 mm and one strain dial gauge 0.01 mm x 25 mm and one strain dial gauge 0.01mm x 25 mm.Optional Extras: Additional set of weights to give a normal stress of 5 kg/cm2. Soil Sampler for 60 mm x 60 mm specimen and test form pad of 50. Spares: Porous stone for 60 mm x 60 mm size sample available in pairs.

• Maximum Shear Force: 5000 N
• Maximum Vertical Load: 500 N or 5000 N using 101 cantilever loading device supplied with the machine
• Maximum Horizontal Travel: 23 mm
• Testing Speed: from 0.00001 to 15.00000 mm/min
• Maximum Number of Cycles: 99
• Sample Type and Size: Up to 100 mm square or round
• Overall Dimensions: 1040 x 530 x 1200 mm (l x d x h)
• Weight Approx: 60 kg
• Multivoltage: Multifrequency power supply 230 V, 50 Hz or 110 V, 60 Hz

• size: 60 mm x 60 mm x 25 mm.

The unit confirms to IS2720. It has a hand operated horizontal loading system for shearing the specimen. Hangers are provided for creating normal stress. Shear box assembly, 60 mm square, complete with a U-bracket, guide pins and spacing screws, made of brass. Gripper assembly consisting of two plain grid plates, two perforated grid plates, one base plate and one loading pad, all made of brass. Two porous stones, each 6 mm thick, fitting the shear box. Shear box housing of brass, complete with two ball roller strips. Loading unit with normal loading of 8kgcm2 on 60 mm square specimen.

A prominent supplier of huge range of Direct Shear Apparatus.

We are one of the prominent direct shear machine manufacturers, exporters, and suppliers, based in india. The direct shear test is carried out with an apparatus consisting of a square divided into two halves. The specimen, contained in the box, is subjected to a constant normal load while an increasing horizontal force is applied to one of the section of the shear box. This force causes a shear failure along the junction between the box sections. The shear force and the normal load are measured directly. The rate of strain is adjusted by the speed of the horizontal force applied. The loading unit has v-strips on which the shear box housing rests. Our direct shear machine is suitable for specimens of size 60 x 60 x 25mm. ref. Standard is:2720 (part 13), bs 1377, astmd 3080 ordering information concrete permeability apparatus, 3 cell model for 100mm cubeconcrete permeability apparatus, 3cell model for 100mm cylinberconcrete permeability apparatus, 3cell model for 150mm cubeconcrete permeability apparatus, I cell model for 150mm cubeconcrete permeability apparatus, 3cell model for 300mm cylinberconcrete impermeability apparatus, 3cell model for 150mm cube as per dlnstd to enquire about the desired product(s), just check the box and then click inquiry now button which is provided below.

Supplied with load yoke with direct and lever system for applying load. Normal stress capacity 8 kg/sq. cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading yoke. The loading unit is provided with V strips and roller strips for frictionless movement of shear box housing. Shear Box Assembly: Comprising direct shear box in two halves for a square specimen size 60 x 60 x 25mm one pair of plain gripper plates, One pair of perforated gripper plates, one pair of porous stones, one top of loading pad. Shear Box Housing: Accommodates the direct shear box assembly. Complete with two ball roller strips. Specimen cutter: for cutting 60 x 60 x 25 mm. Specimen form larger samples. Set of weights to give a normal stress of 3kg/sa.cm.    Essential Accessories: High sensitivity compression proving ring. Cap 200kg. One consolidation dial gauge 0.01mm x 25mm and one strain dial gauge 0.01mm x 25mm Optional Extras: Additional set of weights to give a normal stress of 5 kg/cm2. Soil sampler for 60mm x 60mm specimen and test forms pad of 50. Spares: Porous stone for 60mm x 60mm size sample available in pairs. Unit is electrically operated to give the following 12 rates or strains. 1.25, 0.625, 0.25, 0.125, 0.05, 0.025, 0.01, 0.005, 0.002, 0.001, 0.004 and 0.0002 mm/min. The apparatus is suitable for operation on 230 Volts Single Phase A.C. Supply.

• Type: Automatic
• Certification: CE Certified
• Application: Laboratory Use
• Weight: 100-150kg
• Application: 220V
• Power: 3-6kw
• Driven Type: Electric
• Warranty: 1 Year

With the aid of our sophisticated packaging system, our skilled personnel are able to meet the standard as well as customized packaging requirements of the clients. Moreover, we check the entire lot before dispatch. Our payment procedures are well documented, legal, and safe. We provide our clients with numerous online and offline options for making purchases and make sure they are protected.   Details : Single Speed Twelve Speed The apparatus comprises of the following : Loading Unit - Supplied with loading yoke with direct and lever for applying load. Normal stress capacity 8Kg/Sq.cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading. Yoke. The loading unit is provided with V strips and roller.
