Dolphin Stitch Techno Okhla, Delhi

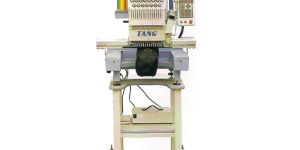

1. The compact single head embroidery machines is suitable for doing all kinds of flatcaptabular embroidery. 2. It can do sequins after fixed with the sequin device. Characteristics : 1. Compace embroidery machines with table, small and exquisite, easy for transit. 2. Big emb.area, flat emb.area can reach up to 350*450mm. 3. High speed, the max speed can reach uo to 1000 rpm. 4. High precision in driving, imported liner guide used in the frame drive guide. 5. Ligth in weight. The whole machines only has 120 kgs. 6. Tubes preventing thread, let the embroider out of the interferences, and work smooth.

Type : Spangles Machine

Voltage : 415V

Automatic Grade : Semi Automatic

Warranty : 2 Years

Type : Sequin Machine

Voltage : 415V

Automatic Grade : Automatic

Power : 1.5kW

Warranty : 2years

Brand Name : Tang

Type : Sequin Machine

Voltage : 415V

Automatic Grade : Automatic

Power : 3.5kW

Warranty : 1year

Brand Name : Tang

Voltage : 415V

Warranty : 2 Years

Type : Sequin Machine

Voltage : 415V

Automatic Grade : Automatic

Power : 1kW

Warranty : 2years

Brand Name : Tang

Material : MS

Main Function :1. The mechanical structure is excellent and reliable, Lay the perfect embroidery with maximum speed can reach 1000rpm. 2. Have the industry the most advanced production and assembly process. 3. The machine with new structure: have the perfect structural design, Uses the high strength steel and welding process maturity, Guarantee the mechanical stability and the resistance to shock. 4. ‘Super low noise mechanical design:advanced;Silencing transmission structure head design is excellent;This structure not only has greatly reduced noise, Also has function of easily adjust theheighe presser foot, Reduce the pressure foot, hit the cloth or needle plate which cause Embroidery destroyed, reel of the yarn from the material and leave presser foot print on material, Especially for the think material embroidery And three—dimensional(3D) embroidery has most obvious effect. (According to customer demand can provide the device for thick material Embroidery and Three~dimensional (SD) embroidery) 5. Thread hold device: lnddpendent electromagnetic valvi control, when trimming thread, color change, replenishing embroidering, the thread hold device has function can effectively improve or prevent the thread out of needle hole or bobbin thread dis—connect with thread for other heads.6. New type structure for color change system: use precise liner design, When working is light, high precision, dustproof ability, Long service life. Advancde bearing and linear motion technology provides more accurate positioning support.7. Head needle bar jump structure:Advanced micro pulse motor drive technology. This structure is convenient to install, No noise design, Truly realize the optimum operating at high speed, precise positioning.8. A New type middle thread guide:Combined wyth the original foundation improvde the new structure thead guide deviceGreatly improve tight , The thread during embroidery, Even when running at high speed can also lay a solid foundation for improving the quality of the products.9. A new type tension base, Selected high—precision thread breakage technology, Whether it is bobbin thread or upper thread breakage The computer system can immediately detect and slop machine. Computer system parameters can be adjusted according to the sensitivity of different kinds of embroidery. Compared with the old version, Greatly improved thread guide pressure. Make thread tension and stitch more stable.10. A new type hook thread device:Gear reducer motor assembly design, this structure it’ s convenient to installation and adjustment. At the same time, greatly improves the hook thread devicet of precision and mechanical stability.11. A new trimming system:Advanced pulse motor drive design, trimming action compliance, Start, stop at accurate positioning, Large torque, low noise, Compared with the traditional gear style. Synchronous action when the disadvantage of reducing spindle power finally been solved properly.12. A new type pantograph structure: High strength, light, high precision, Novel aluminum alloy structure, is the basic guarantee of high quality high speed embroidery.13. Pantograph drive system: Use nowadays one of the highest precision AC servo motor drive, Fully reflects the advanced technology of motor, it is the best choice to achieve high and low speed, high precision operation.14. The main transmission adopts the synchronous belt in Germany and Italy production, Gear precision, Polyurethane material, Make it with excellent performance stability. Small deformation, Long service life, And greatly saves the cost of repair and daily tedious.15. Accurate frame drive slide rail group:The advanced bearing and linear motion technology High rigid material, High~precision processing technology, High sealing performance dust gauge block group design, Can easily face strict production requirements. Main Parameter :1. Computer system: Dahao special model 9C66 system with 8. 4 inch monitor.2. Thead breakage detecting system: The high efficient and intelligent.3. Memory storage: 2000000 stitches/200 designs.4. Read and storage: Standard USB port/U disc     Read and storage: TAJIMA/BARUDAN/ZSK(binary system/ternary)5. Stitches length: Binary0. 1—12. 7mm Ternary 0. 1—12. 1mm.6. Body structure: improved frame structure. Machine color: Sky blue7. ATH: Pulse motot driving structure. Automatic hook thread: Independent thread or Centralized hook thread.8. Main motor: Toshiba induction motor X1. X‘ Y driver motor: Impulse motor or AC servo motor X2.9. X‘ Y driver guider: Enhanced Linear Broad gauge.10. The input power: 3 PHASE 380V (50/60HZ) single phase 220V (50/60HZ)- Capacity: 3. 5—4KW.11. Max rpm: 1000rpm.12. Optional : Automatic oiling device, High spdde sequin device, Cording device.

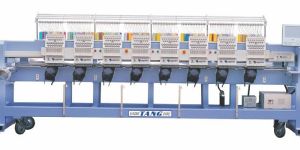

Main Function : 1. It has several same setups, and they can embroider same design simultaneously, and of high efficiency.2. It can not only do normal flat embroidery, but also embroider different beautiful desigs on the cap or slipover.3. Sequin device attachment: Embroider sequin designs.4. Cording devices attachment: Embroider cording designs.Characteristics : 1. The cap frame strike out by the metal material, chromeplated on surface, beautiful appearance, facility.2. Double motor used both in X/Y way drive system which let the frame move more smooth and stitches more accurate.3. Jointing configurationused in the chassis, Conquer the shake problem in the usual machines. Raised quality and the rigidity of this new configuration and reduced the complexity of the craftwork4. AC servo motor control driver's main drive with the best timing capacity, let the drive more smooth and raised the capacity of things. The max speed can reach up to 850 rpm.Mail Parameter :1. Embroidery Speed : 200-850 rmp2. Memory Stock : 100000 stitches3. Power : Alter single phase 220V 3 Phase 380V4. Main Motor : Stepping motor X way 2sets Y way 2sets Servo motor 1 set5. Emb. area of cap frame: 0-280

Type : Sequin Machine

Application : Embroidery

Voltage : 440V

Automatic Grade : Automatic

Rated Power : 3.5kW

Warranty : 1year

No. Of Heads : Multi-head

Material : MS

Type : Flat Bed

Automatic Grade : Automatic

Voltage : 415V

Rated Power : 1.5kW

Material : MS

Voltage : 415V

Automatic Grade : Automatic

Power : 2kW

Warranty : 2years

Capacity : 45000 Stitching/hour
