Draught Gauge Dealers in Delhi

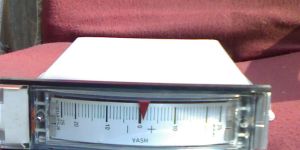

Edgewise Draught Gauges

Get Price Quote

• Dial Size :: 166 x 48 mm, 200 x 104 mm , 150 x 78mm
• Scale Range :: 0… all measuring units to scale low vacuum, pressure
• Accuracy :: ±1.6% of FSD
• Case & Ring :: AISI 304 SS, Black powder coated
• Joints :: Tig Argon Arc Welding
• Dial :: Black graduation of white background
• Pointer :: Aluminium Black coloured externally zero adjustable
• Movement :: AISI 304 SS
• Connection Size :: ¼ ², 1/2 NPT (M) compression fitting type
• Standard Fitment  :: External zero adjustment
• Window :: Acrylic
• Wetted Parts :: AISI 316 SS
• Mounting :: Flush panel with back entry
• Gasket :: Neoprene
• Enclosure :: Pressed steel weather-proof   to IP-65, of self enameled

Draught Gauge

Get Price Quote

• Dial Size: 5" (125 mm)
• Accuracy: ± 1% of F S D
• Sensing element: AISI 316 SS Capsule
• Movement material: AISI 304 SS
• Enclosure: Pressed Steel weather-proof to IP-65, stove enamelled Grey finish
• Mounting: Flush panel with back entry
• Connection size: ¼" BSP (M) compression fitting type
• Panel cutout: 166 x 48 mm
• Range : Pressure range of 0 mm WC to 400 mm WC

Draught Gauge

Get Price Quote

Draught Gauge, Bourdon Type Pressure Vacuum & Compound Gauge

Draught Gauge

Get Price Quote

Draught Gauge, chemical sealed pressure gauge, Refrigeration Gauge, Mud Gauge
