ESSEN INTERNATIONAL Darya Ganj, Delhi

Wooly Rollers are a must use for applying resin over glass fibre reinforcements. Braided faux wool is designed for resin and other viscous liquids. Rollers are designed ergonomically to last long as cured resin does not affect roller handle. High quality construction ensures appropriate working life. Saves molding time and wastage of resin. Improves overall molding quality as it releases entrapped air. Easy maintenance as it cleans quickly. Recommended to use RST-5 for cleaning. Long nap holds and transfer ample resin to reduce multiple applications. Helps create a uniform thickness and good compassion of fibreglass layers.

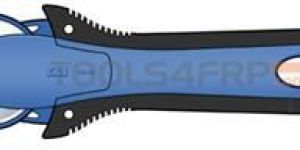

Wheel cutter is a handy tool and easier to use than scissors. Free hand movement allows it to cut in any direction. Good for veils, light weight cloth and fabrics. Soft padded handle with automatic guard allows complete comfort and safety. Standard 45 mm diameter tungsten steel blade provides clean cutting.

Non-destructive thickness measuring device for composite parts. Can measure up to 1″ of thickness. Made of anodized aluminum with steel lock for repeated usages. Tool is light in weight and handy. Its graduated cylinder makes it uncomplicated in taking readings.

Basic tools of measuring are neither reliable nor accurate. Measuring thickness of composite parts or wet films becomes precise with our range of gauges. Single-use Wet Film Gauge with mils and microns.  Its unique shape allows more measurements per edge. Mils 2-36 / Micron 50-900 Shape allows more measurements per edge Use once and throw away Use once and string up to dry thus giving permanent historical record Hole allows label attachment Thou (Mil) values on the other side of gauge

Steel shafts, brass balls, nickel plated. The essential tools for applying wax fillet.

Weight : 2500 grams

Synthetic Rollers are cost effective substitute for natural wool roller. Its large size helps spread resin quickly and evenly. Replaceable refills are available.

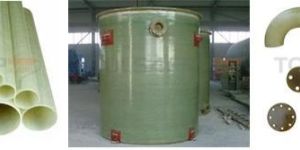

Function of Surface Mat In a FRP laminate, surface mat is present under the top coat (gel coat) which creates a weather resistant layer. Properly impregnated and cured surface mat will protect the inner glass-resin matrix. This will surely enhance life of your composite parts. At the same time, surface mat also reinforces the gel coat layer. While applying a layer of surface mat, always be generous in using resin. Ideally, glass-to-resin ratio for laminating surface mat should be at least 1:6 to a good 1:10. For instance, to lay a 30 gr/m2 surface mat, use 250 to 300 grams of resin per meter square. Application with Surface Mat Most important aspect is to create a barrier. In some aggressive environments where composite parts are constantly exposed / submerged into acidic waters or chemicals, a layer of surface mat is applied on both sides of such parts. One classical example is cooling tower panels. Variations of Surface Mat We offer different product to suit different applications like filament winding, hand lay-up, pultrusion, rtm / lrtm, etc. Also, we provide individual solutions in terms of slit width reels / tapes and roll lengths.

Steel Screw Roller is manufactured on popular demand. Screw like fins and steel make it an all-weather tool. Lasts long and survives even the most rigorous resin systems.

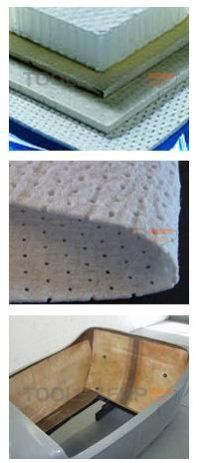

Polyester nonwoven that contains microspheres. Generally used as a thin core (to create bulk) or print blocker (liner) in fibre reinforced laminates, manufactured with Hand Lay-Up or Spray-Up processes. Sphere core mats should always be fully impregnated with resin. The microspheres in core mats prevent excessive resin up-take. Few important advantages are: Weight Reduction: Used as a core material in the centre of a laminate. It can replace much heavier solid glass layers. Impregnated sphere core has a density of 620 kg/m3, while impregnated CSM (chopped strand mat) has a density of 1,500 kg/m3. This is a weight saving of 60%. Resin and Glass Saving: 1 mm of sphere core contains 0.6 kg/m2 resin. While, 1 mm of CSM contains 1 kg/m2 resin. Although, sphere core usually replaces glass layers, it should always be used between two layers of glass as core material. A classical example, weight of 3 mm laminate made with 3 layers of CSM 450 gsm is 4.3 kg/m2. Whereas, a 3 mm laminate made with 2 layers of CSM 300 gsm + 1 layer of 2 mm core mat is only 2.8 kg/m2. Cuts Cost of Production: One layer of sphere core builds up thickness rapidly. Available from 1 mm to 10 mm thickness. While multiple layers of glass fiber are required to achieve these greater thicknesses, single layer of appropriate thickness core mat is sufficient. Excellent Print Blocker: Gives outmost surface finish as it can be used to block “print-through” of glass reinforcements. Sphere core is most often applied against the “skin coat” to create a superior surface finish on hull sides in boat industry.

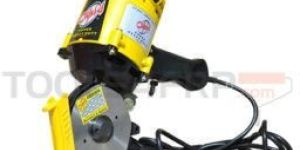

Inbuilt sharpener grinds a new sharp edge for longer cutting life Light weight for easy handling and better maneuverability Can cut up to 12 mm (1/2″) thick stack of reinforcement Inbuilt air fan keep the motor cool for longer shifts Ultra slim and aerodynamic design increases working capacity Thinner base plate design makes it easier to cut complicated patterns

Slotted Roller is a X generation roller; combining advantages of both finned and paddle rollers. These are very affective for high viscosity filled resins.

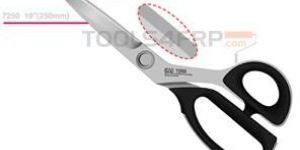

Blades of our scissors are made with special high-carbon Molybdenum Vanadium stainless steel for extra-long edge life and high cutting efficiency. Its full-length “blade-to-grip” design help maintain optimum cutting balance. Interlock screw are engineered to provide long lasting blade tension. Elastomeric padded grip on the handle takes care of comfort and ease in long operations for user.

Weight : 900 grams

PP-Teflon Finned Rollers have excellent non-stick properties, which make them very easy to clean. They are corrosion resistance, have high lubricity and low friction. These properties make the tool ideal when finish of part is most important. Their smooth functioning and robust performance makes them highly durable.

Paddle Roller have horizontal paddle like groves that helps spread resin evenly. Constant movement releases trapped air. Straight design makes them very easy to clean. Avoid fast movement, it may splash resin.

Weight : 800 grams
