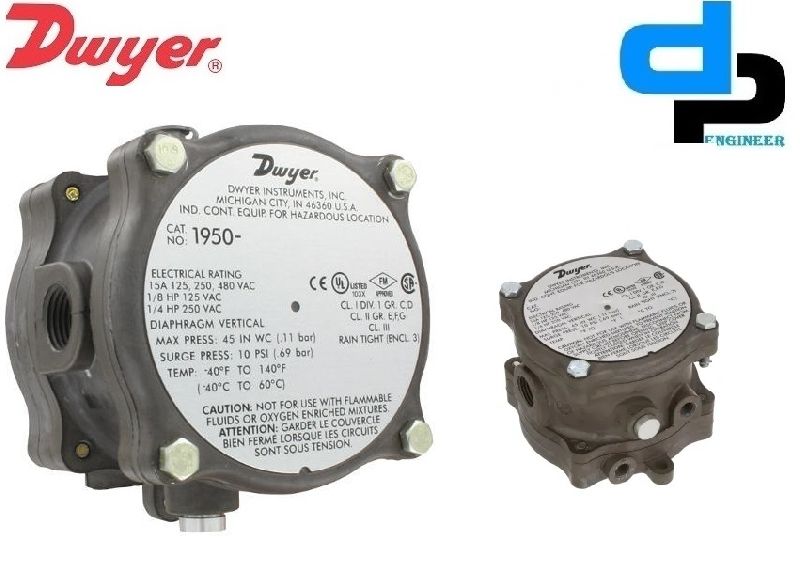

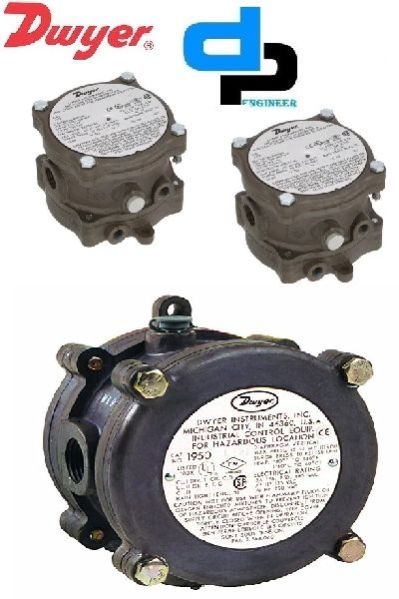

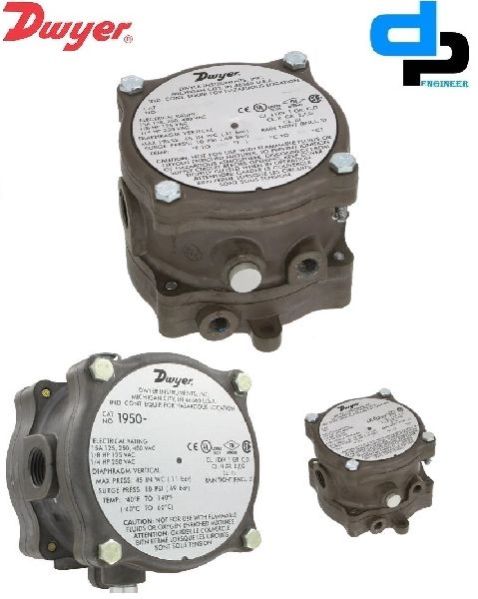

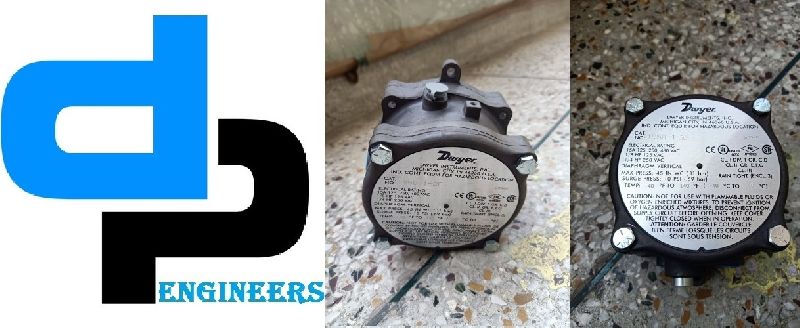

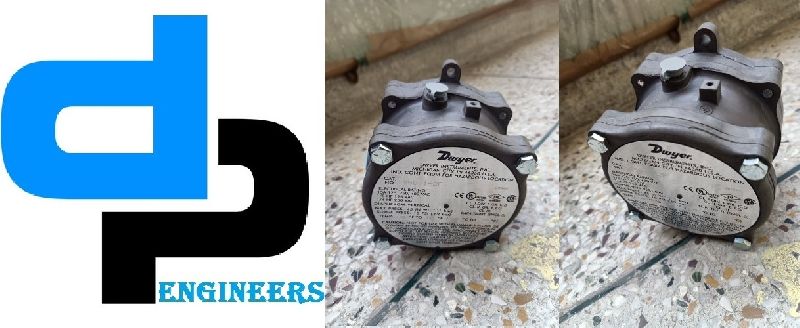

Explosion Proof Switch Dealers in Delhi

• Type: Explosion Proof Switch
• Certification: yas
• Application: Mechanical HVAC or process equipmentChemical, petroleum, food and drug processing industriesProcess
• Weight: 2 lb (.9 kg).
• Condition: New
• Power: 5 A @ 125/250 VAC, 5 A res., 3 A ind. @ 30 VDC. Gold contacts optional.
• Automation Grade: Manual
• Puncture Voltage: 5 A @ 125/250 VAC, 5 A res., 3 A ind. @ 30 VDC. Gold contacts optional.

Explosion-proof and Weatherproof Enclosure Explosion-Proof, UL & CSA Listed for Class I, Groups B, C & D and Class II, Groups E, F & G. The Series H2 Dual-Action Explosion-Proof Pressure Switch is designed for sequencing two different actions as pressure of a liquid or gas increases or decreases. The design consists of two concentric pistons operated by a single diaphragm with one pressure chamber. Each piston actuates a separate switch independent of the other. The switches may be adjusted to operate together, at opposite ends of the range or at two intermediate set points. The threaded top is removed to field adjust or service switches without disturbing electrical or pressure connections. The Duotect® switch is explosion-proof and weatherproof. It can be mounted in any position and is not affected by vibration. Product Applications Mechanical HVAC or process equipment Chemical, petroleum, food and drug processing industries Process and Industrial applications ModelDescription H2S-1Duotect® dual-action explosion-proof pressure switch, 3-40 psig (0.21-2.76 bar) low range, 5-75 psig (0.35-5.17 bar) high range H2S-2Duotect® dual-action explosion-proof pressure switch, 25-250 psig (1.72-17.2 bar) low range, 30-400 psig (2.07-27.6 bar) high range H2S-3Duotect® dual-action explosion-proof pressure switch, 100-1000 psig (6.89-68.9 bar) low range, 150-1500 psig (10.3-103 bar) high range Specifications Wetted Materials:316 SS chamber with FEP diaphragm and Buna-N O-ring standard. Fluoroelastomer or EPDM O-ring optional. Temperature Limit:275°F (135°C). CSA approved: -20 to 90°C (-4 to 184°F). Pressure Limit:1500 psig (103 bar). Enclosure Rating:UL listed explosion-proof, Class I, Groups B, C, and D. Class II Groups E, F, and G. Meets NEMA 4X (IP66). CSA optional. Class I, Groups B, C & D. Class II, Groups E, F, & G -20°C ≤ Tamb ≤ 75°C T6 [optional -20°C ≤ Tamb ≤ 40°C T5] Type 4. Switch Type:Two SPDT snap switches. Electrical Rating:5 A @ 125/250 VAC, 5 A res., 3 A ind. @ 30 VDC. Gold contacts optional. Electrical Connections:18 AWG, 18" (460 mm) long. Conduit Connection:3/4" female NPT. Process Connection:1/4" female NPT. Mounting Orientation:Any position. Set Point Adjustment:Internal nut. Weight:2 lb (.9 kg). Deadband:Approximately 10% of range. Agency Approvals:CSA, UL. Features Explosion-proof and weatherproof housing provides device protection for outdoor use or harsh environment operation UL listed, CSA approved to support rigorous process applications and regulations Independent piston action design for either gas or liquid allows switches to active together or independently based on settings Mounting in any position and not affected by vibration provides reliable switching for equipment H2 Dual-Action Explosion-proof Pressure Switch Series H2 Dual-Action Explosion-proof Pressure Switches Related Products Series DA/DS Bourdon Tube Pressure Switches Series DA/DS Bourdon Tube Pressure Switches Series IS626 Intrinsically Safe Pressure Transmitter Series IS626 Intrinsically Safe Pressure Transmitter
