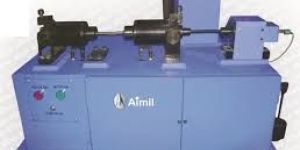

Fatigue Testing Machine Dealers in Delhi

• Specification: FT 200
• Max. bending moment (Kg. cm): 200
• Bending moment adjustable (Kg.cm): 25-200
• Ranges : 1 - Kg.cm II - Kg.cm: 25-125 125-200
• Gripping dia of specimen (mm): 12
• Testing dia of specimen (mm): 8
• Rotating speed in RPM: 4200
• Accuracy of applied bending moment: ±1%
• Mechanical Counter: No. of digits Multiplying factor: 63
• Power required in HP: 0.5
• Main Supply: 3ph 440v 50hz
• Overall size (mm): 1000L X 500W X 600H
• Weight (Kg): 120

• Weight: 10-50kg, 100-150kg
• Color: Grey
• Voltage: 110V, 220V
• Driven Type: Electric
• Warranty: 1year
• Automation Grade: Automatic
• Type: Fatigue Testing Machine
• Certification: ISO 9001:2008
• Application: Fatigue Testing
• Application: Metal Testing
• Power: 1-3kw, 3-6kw

Specifications: 1). Light weight, compact size, simple design2). Table model3). Simple lever system for changing load4). Accurately calibrated as per IS0755). 10 Digit electronic counter instead of mechanical counter can be supplied at additiona6). price and the model is termed atadditional price and the model is termed as SL-F 107). Machine with maximum bending movement upto 400kg/cm can be offered on request

• Voltage: 220V
• Features: Easy to operate , Requires minimum maintenance , Longer functional life
• Capacity: 300 inch lbs
• Motor: 0.5 H.P, 3 Phase A.C.
• Speed: 2850 rpm
• Length: 55”
• Width: 25“

Application & operation This machines is used to test the fatique strength of materials and to draw  S-N diagram ideal equipment for Technical insitutions, Resarch insititutes,Laboratories etc.This is a rotating beam type machine in which load  is spplied in reversed bending fashion,The standard 8 mm dia speciemen is held in special holders at its ends and loaded such that it experiences a uniform bending moment.The speciemen is rotated at 4200 RPM by a motor. A complete cycle of reversed stresses in all fibres of the speciemen is produced during each revolution.The bending moment is applied with a lever system and can be easily changed by moving a weight over the lever.Total number of revolutions at which thw speciemen fails are recorded by a electronic counter.An interlocking system puts off the motor at speciemen failure.Machine meets requirements of international / indian standards.

• Type: Fatigue Testing Machine
• Certification: ISO 9001:2008
• Application: Fatigue Testing
• Weight: 10-50kg
• Color: Grey
• Voltage: 110V, 220V, 380V
• Power: 3-6kw, 6-9kw
• Driven Type: Electric
• Warranty: 1year
• Automation Grade: Automatic
• Voltage: 440 V
• Type: Computerized
• Accuracy Grade: 0.8
• Material: Steel
• Range of Testing Speed: 0.001
• Grade: Semi-Automatic

We offer to our customers a superior quality Fatigue Testing Machine. Fatique Testing Machine can be be used to simulate how a component/material will behave/fail under real life loading/stress conditions. They can incorporate tensile, compressive, bending and/or torsion stresses and are often applied to springs, suspension components and biomedical implants. We customized Fatigue testing machine as per the drawing and requirement of our clients

Machine must meet requirement of IS5075 - 1969 Table model for simple lever system at charging load Accessories must be calibrated as per IS 5075 - 1969 Maximum bending moment Kg cm-200 Bending moment adjustable Kg cm - 25 - 125 Ranges 1Kg cm - 25 - 125 & 11 Kgs cm 125 - 200 Gripping Diameter of specimen (in mm) - 08 Accuracy of bending moment 1% Digital counter number of digits-10 Power required, HP - 0.5 Main supply - 3ph, 440, 50 Hz A.C.

We are offering fatigue testing machine. Fatigue testing machine for concrete beams we manufacturer digital universal testing machine, digital controlled universal testing machine that ensure that have double column construction with the maximum capacity load of 100 ton used for like rubber plastic, paper, sutures, textile, adhesive, copper ring, syringe, needle, metals. These digital universal testing machines are offered with over load protection facility.

For metals: Reverse Bending, supplied complete with jigs and fixtures mounted anelegant table with motor, weights, etc. An electronic Digital Revolution Counter registers the number of revolutions taken by the sample to break. The machine automatically stops after the rupture of the specimen

Fatigue Testing Machine, Static and Dynamic Apparatus, Cone Penetrometer

We are well known for supplying of wide variety of Fatigue Testing Machine.

Fatigue Testing Machine, subsonic wind tunnel, Colour Matching Cabinet
