Flame Retardant Low Smoke Cables Dealers in Delhi

• YELLOW: RED
• BLUE: GREEN
• BLACK: WHITE
• GRAY: PINK

KK normal wires are FR. Wires are insulated with special grade PVC compound which has high oxygen and temperature index. These properties restrict spreading of fire in a very high temperature. They also provide high insulation resistance and dielectric strength. These cables are suitable for conduit and concealed wiring in residential complex, office complex, hospitality industries etc. These cables are lSl marked and conform to IS-694-2010 and also ensure extra protection against electric shock, short circuit and fire. KK Cables PVC Flexible Cables Copper Conductor unsheathed Single Core 1100 Volt Confirming to IS:6942010'' S.No. Nominal Area Current Rating (Ampere) FR Price (Rs.) FRLS Price (in Rs.) (in sq. mm.) 1 10.00 42 9830 10813 2 16.00 57 15337 16870 3 25.00 71 24889 27378 4 35.00 91 34848 38333 5 50.00 120 54262 59688 6 70.00 161 70083 77091 7 95.00 200 92350 101585 8 120.00 225 117974 129771

• Material: FRLS
• Length: 45-90 Mtrs
• Frequency: 50 Hz
• Power Source: Electric
• Feature: Used Pure Material, Heat Resistance
• Outer Material: PVC

• Voltage: 220 V
• Size: 0.5SQMM TO 400SQMM
• Core Type: MULTICORE
• Low Smoke: FRLS
• Power/Voltage: 1100 VOLT
• Number Of Cores: MULTICORE
• Wire Gauge: FULL GUAGE
• Is It ISI Certified: ISI Certified
• Flame Retardant: Yes
• Insulated Material: PVC
• Wire Size: 90 mm

We are instrumental in offering superior quality Flame Retardant Low Smoke Cables, which are known for their fine finishing and longer life. Our range of Flame Retardant Low Smoke Cables is specially designed keeping in mind the requirement of different industries. Moreover, these Flame Retardant Low Smoke Cables are highly demanded owing to its eco-friendly nature. Applications HospitalsHigh rise buildingsTheatresHotelsSchoolsWarehousesIndustrial ComplexPower StationsData Processing CentresUnderground trainsOffshore and onshore platforms Usage The cables are suitable for following continuous operating temperaturesCables with PVC based insulation 70oC. Cables with EPR/XLPE based insulation 90oC.Permissible short circuit temperatureCables with PVC based insulation 160oC. Cables with EPR/XLPE insulation 250oCThe minimum bending radius for 1 core cable 15 d and 12 d for Multicore cables, where d is overall diameter of the cableContinuous current ratings and short circuit ratings correspond to those for either PVC, XLPE or Elastomer insulated cables

• Type: Flame Retardant Low Smoke Cables
• Application: Home, Industrial
• Color: Black, Green, Red
• Insulation: PVC: LF + FR-LSH 70
• Range: 1 to 6 sqmm
• Conductor: Pure Electrolytic Grade Annealed Bare Copper with More than 100% Conductivity
• Specifications: IS 694: C2 Category, IS 8031 & IS 5831

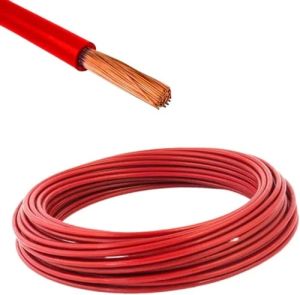

These cables are used for wiring domestic and commercial buildings. A fine drawn multi strand conductor provides enhanced Flexibility & makes it ideal for concealed wiring. It is suitable for installation in lighting fittings and appliances up to 1100 v (A.C).

• Type: FRLS
• Thickness: 5-10mm
• Certification: CE Certified
• Color: Available In Many Colors
• Voltage: 220V
• Conductor Material: Copper
• Insulation Material: Rubber

For the complete range of FRLS Cables use our highly affordable services. The flame retardant low smoke cables manufactured by us are noted for emitting little smoke and harmful gases at the time of fire. They also slow down the spreading of fire. They are ideally suited for concealed and conduits wiring in high rise buildings like commercial building, residential apartments, and hotels and so on and so forth. Apart from that, we are one of the most famous industrial FRLS cables manufacturers in the market.

We offer flame retardant cables that have phenomenal feature of resisting any kind of heat and flame. Also, they are composed of finest material ensuring their never-ending durability. At top of that, they have been presented in all the desired configurations. Havells FR Insulated Cables (Heat Resistant Flame Retardant) Life Line Havells has become the first manufacturer in India to provide Heat Resistant properties in addition to the existing Flame Retardant properties in insulated cables as a standard product. The advantage of HRFR is to enable the cable to carry more current than a normal PVC insulated cable, without any damage to the insulation. This feature is especially useful in domestic applications as in most cases the consumers often use multi-plugs / extension cords to connect multiple equipments leading to more temporary loads on the circuits than it is designed to carry. This leads to overloading and heating of the whole system resulting in deterioration of Insulation. As these cables have Heat Resistant properties, better life is guaranteed making them the most durable insulated cables in the industry. Havells FR-LSH Insulated Cables (Heat Resistant Flame Retardant Low Smoke) Life Guard HRFRLS Flexible cables are recommended for use in places with high human concentration like high rise buildings, offices, shopping malls, hospitals etc. Havells HRFRLS insulated cables are made from specially formulated PVC Polymers that restrict the toxic gases and smoke as they are self extinguishing and do not allow the fire to spread. Havells ZHLS Insulated Cables (Zero Halogen Low Smoke) Life Shield. Havells has recently launched LIFE SHIELD WIRES (Zero Halogen Low Smoke Wires). This breakthrough comes as a result of the efforts of our R&D Centre at the Alwar plant. Our engineers have developed a special compound which has practically 0% halogen content & has a very high oxygen index. Your personal Fire Fighter at home. Superior Protection from Fire - In India we have been using PVC compound for insulation which is a Flame Retardant material under normal atmospheric conditions. But when a fire occurs the oxygen percentage in i ts vicinity increases because of formation of air-drafts which makes general purpose PVC wires catch fire. FR & FRLS PVC wires have an oxygen index > 29 & offer some protection against propagation of the flame; however Havells LIFE SHIELD wires offer much superior protection against fire with oxygen index > 35. An oxygen mask helping people trapped in fire breathe. Non Toxic - Research shows that maximum number of causalities in Fire happen due to chocking caused by generation of Hazardous gases. PVC Flame Retardant Low Smoke Wires release lesser toxic gases compared to ordinary PVC wires. Smoke generation in case of FRLS wires is < 20%. In this aspect our LIFE SHIELD wires are 10 times more superior compared to FRLS wires as they contain practically 0% halogens & therefore in case of fire release of Hazardous gases is < 2%. This ensures that people trapped in Fire can breathe easy facilitating better chances of their rescue. Save the environment Every day thousands of tonnes of Hazardous Halogen gases are released in the environment resulting in depletion of the earth̢۪s ozone layer (which protects us from cancer causing UV radiations of the Sun) a phenomenon popularly known as green house effect. Havells LIFE SHIELD wires contain practically 0% halogens and therefore are environment friendly. So when you sell/buy these wires you not only protect your near & dear ones but also your future generations against the Green House Effect.

The FRLS (Flame Retardant Low Smoke Cables) House Wires bunched conductors are insulated with specially formulated flame retardant low smoke compound. During fire situation FRLS compound restricts the spread of flame, the emission of smoke is also less as compared to ordinary PVC cables. Features:- Bunched conductor is shielded with specially devised FRLS compound Restricts the spreading of flames Emission of smoke is lesser in comparison to PVC cables Available in various capacities & lengths Lower heating Power saving Has high thermal stability Easy to wind & installation

• Type: FRLS
• Thickness: 5-10mm
• Certification: CE Certified
• Color: Available in many colors
• Voltage: 220V
• Feature: Crack Free, Durable, High Ductility
• Outer Material: Rubber
• Internal Material: Copper

We are recognized as one of the most dependable FRLS Cables Exporters from India. The materials used in the manufacturing are of excellent quality that further ensures high durability and resistivity in our Flame Retardant Low Smoke Cables to various unfavorable conditions. In addition to this, customers from every nook and corner are placing huge and repeated orders for the Industrial FRLS Cables due to the unmatched quality and inexplicable performance in respective applications. Customers are also facilitated with the availability of the FRLS Cables in all possible specifications.

• conductor: Solid Bare Copper
• Insulation: Foam HDPE
• Inner Shield: Aluminum Foil
• Overall Shielding: Aluminum Alloy
• Flooding Compound: Jelly
• Outer Sheath: FRLS Black

• Brand Name: ALANKAR / ALANCAB
• HALOGEN: FREE
• LEAD: FREE
• FLAME: RETARDANT

We are offering jh(st)h bd. Fire warning cable. j-h (st)h…bd. Fire warning cable. halogen-free installation cable in accordance with vde 0815 with red outer sheath used to meet enhanced fire protection requirements concerning protection of people and high-value property does not emit any toxic or corrosive gases in the event of fire and resists the spread of fire aluminium-laminated plastic foil static screen with tin-plated drain wire minimises the interference of high frequency, electromagnetic field tp structure minimises crosstalk application • this halogen-free, flame-retardant installation cable with static screen is used for telephone, data and signal transmission in subscriber stations and private branch exchange construction for telephone systems; on dry and wet premises as well as on and under plaster.

• Brand Name: Havells
• Material: FRLS
• Power Source: Electric
• Outer Material: PVC
• Is It Armoured: Armoured
• Flame Retardant: No

• Wire Size: 90 M
• Color: Black
• Brand Name: Unique Cables
• Flame Retardant: Yes
• Insulated material: PVC
• Range: 0.5 sq. mm. To 6 sq. mm

We are offering frls power cables. Our frls range of power cables are put through the most stringent tests against fire. Not only do they ignite with great difficulty but are also self extinguishing.

The Growing Importance of Flame Retardance until Recently Flame Retardance Was Never a Major Consideration When Choosing a Cable; Physical Performance and Reliability Always Took Precedence. in the Recent Past, However, Growing Awareness of Fire Hazards Has Resulted in the Development of Flame Retardant Low Smoke Cables. Development, Fuelled By Devastation Fires in Power Stations and Elsewhere in the Country, Situations Where Cables Laid in Horizontal and Vertical Trays, Spread Extraneously Caused Fires. Generally Outer, Sheathing Material is Made of Chlorinated Polymers like Pvc, Csp, Pcp, Etc., Polymers Which have Inherent Resistance to Flame Propagation. Yet, in the Event of a Fire, They Propagate Fire and Release Large Volumes Pf Dense Smoke, Toxic Gas and Hydrochloric Acid. Flame Retardant Cables Therefore Should Fulfill the Following Four Criteria: Flame Retardance: Ability to Restrict Flame Propagation low Smoke Emission: Smoke Emitted Should Not Obscure Visibility Low Acid Gas Emission: Gases Which When Combined with Water Produce High Corrosive Acids Which Damage Plant and Equipment. Low Toxic Gas Emission: Gases Less Injurious to Health.

• Color: Polycab
• Conductor Stranding: Copper
• Nominal Voltage: 220 V
• Current Rating: 10 A
• Suitable For: Electrical
• Number Of Core: 1,2,3 Available
