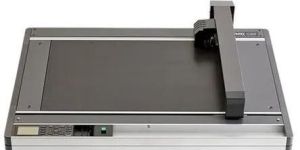

Flatbed Plotter Dealers in Delhi

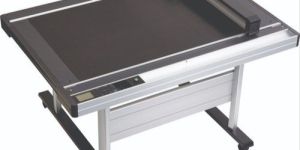

Flatbed Cutting Plotter

805,000 Per Piece

• Driven Type: Electric
• Applications: half cut,full cut,box making
• Usage/Application: pattern cutting
• Classification: Double-blade Cutter
• Max Cutting Width: 2X2
• Blade Material: Stainless Steel
• Model name: FCX2000-60VC
• Configuration: Digital servo system, Flatbed
• Media hold-down method: Vacuum suction
• Effective cutting area: 610mm x 920mm
• Mountable media (Y-axis): 950mm
• Roll media support: Roll media stocker (manual feeding), supported media; width: up to 950 mm, weight: up to 5 kg
• Maximum cutting speed: 400 mm/s (1 to 40 cm/s in 16 steps), in all directions
• Cutting force: Tool 1: Max. 4.9 N (500 gf), Tool 2: Max. 9.8 N (1 kgf)
• Cutting force settings: Tool 1: in 40 steps, Tool 2: in 40 steps
• Minimum character size: Approx. 10 mm square (varies with character font and media)
• Programmable resolution: GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GL™ : 0.025 mm
• Distance accuracy: Max. 0.1% of the distance moved or 0.1 mm, whichever is larger (in plotting mode) (*2)
• Perpendicularity: Max 0.5 mm / 900 mm (in plotting mode)
• Repeatability: Max 0.1 mm (excluding contraction of media, in plotting/cutting mode) (*2)
• Standard interfaces: RS-232C, USB2.0 (High-Speed), and Ethernet (10BASE-T/100BASE-TX)
• Buffer memory: 2MB
• Command sets: GP-GL and HP-GL™ emulation (set by menu, or selects automatically by received data)
• Number of tools: Two tools
• Cutting blade, pen, and tool types: Cutting blade (supersteel), Pens (Water-based fiber-tip pen, oil-based ballpoint pen), and Creasing/scoring tool
• Others: ARMS, Reverse side Cutting/Creasing using ARMS, ARMS Copy function, Creasing, Cutting/creasing in multiple passes
• Power source: 100 to 240 VAC, 50/60 Hz (Auto switching)
• Power consumption: Max. 140 VA

Flatbed Plotter

Get Price Quote

• Type: Digital Printer
• Model Number: FC4500
• Place of Origin: Japan
• After-sales Service Provided: Overseas service center available
• Brand Name: Graphtec

Flatbed Cutting Plotter

Get Price Quote

• Driven Type: Electric
• Blade Material: Stainless Steel
• Applications: Full Cutting, Creasing, Partten cutting
•  :
• Usage/Application: PVC, Paper, Sticker, Lable
• Classification: Double-blade Cutter
• Brand/Make: Graphtec
• Minimum Order Quantity: 1 Unit

Flatbed Cutter Plotter

5,550,000 Per Piece

1 Piece (MOQ)

• Brand: Graphtec
• Product description: Flatbed Cutting Plotter
• Model Name/Number: FCX4000 - 50
• Configuration: Electrostatic Suction Flatbed Cutter
• MAXIMUM CUTTING SPEED: 750MM / SEC

Flatbed Plotter

Get Price Quote

Flatbed Plotter
