Gem Boilers Prashant Vihar, Delhi

We offer thermic fluid heater wood fired. Gem boilers thermic fluid heaters are forced circulation liquid phase heating system. In the system heat transfer media (thermic fluid) circulated in a closed circuit through heat heater. The same thermic fluid is reheated and recirculated. The combined expansion cum dearator tank system pressureless and vapourless. The unit basically with 3-pass construction. The thermic fluid heating system operates near atmospheric pressure and temperature can be achieved as high as atmospheric pressure and temperature can be achieved as high as 300°c. Heater assembly consists of a nest of concentric helical tube oils place within a sturdy ms shell. The coils fabricated out of seamless tube high temp. Application allow flue pass to ensure maximum heat dissipation.

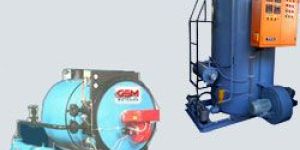

We offer gas fired. Helical coil type multi pass, once through, forced circulation principal to use heat transfer fluid without risk of chemical degradation. fabricated out of erw boiler tube as per bs-3059 double shell of mild steel construction fuel atomizing pressure jet imported burner is placed vertically downward for combustion fully automatic operation with dust proof pre wired control panel dearator tank with level switch and prv

Helical Coil type Multi Pass, once through, forced circulation Principal to use heat Transfer fluid without risk of chemical degradation. Fabricated out of ERW Boiler tube as per BS-3059 Double shell of mild steel construction Fuel atomizing pressure jet imported burner is placed vertically downward for combustion Fully automatic operation with dust proof pre wired control panel Dearator tank with Level switch and PRV     Salient Features Temperature up to 300°C, accuracy of± 1% Low working pressure of 2.5 Kg/Cm Low running cost as compared to electric Heating Fully automatic, Safe & Economical Pollution free No corrosion of scale - formation. No registered Boiler attendant required Low stack temp, on full load. Efficiency upto 87%±2%

GEM BOILERS Thermic Fluid Heaters are forced circulation liquid phase heating system. In the system heat transfer media (Thermic fluid) circulated in a closed circuit through heat heater. The same thermic fluid is reheated and recirculated. The combined expansion cum dearator tank system pressureless and vapourless. The unit basically with 3-Pass Construction. The Thermic Fluid Heating system operates near atmospheric pressure and temperature can be achieved as high as atmospheric pressure and temperature can be achieved as high as 300°C. Heater assembly consists of a nest of concentric helical tube oils place within a sturdy MS shell. The coils fabricated out of seamless tube high temp. Application allow flue pass to ensure maximum heat dissipation. Salient Features The furnace is constructed from Heavy Duty M.S. Sections and covered with M. S. Sheets on one side of the furnace is provided with necessary doors for husk/wood feeding Emergency by-pass chimney. Heat exchanger is fitted to the furnace. The inside of the furnace is constructed with best quality fired bricks insulation bricks. The fire bars manufacture from the heat resisting casting are provided. High combustion efficiency. Low stack temperature on full load. No corrosion or scale formation. Efficiency 76% on GCV. 60% Benefit from Diesel/Gas, LDO. Low Maintenance.

We offer Steam Boiler. The construction is of a packaged type vertical design multistage shell and tube boiler. The water is in the shell side and the flue gases of combustion travel through the tubes in the shell. This is a rugged design boiler which can withstand a higher degree of hardness in the water. Blowdown valves are provided for removal of TDS in the boiler water. This is a vertical design shell and tube type boiler suitable for various fuels like oil, wood, coal, rice husk, briquettes etc. Or a combination of these fuels. The furnace for solid fuels like wood, coal, rice husk etc. Is constructed below and the boiler is placed vertically above it. The fuel is burnt on the grate bars provided in the furnace and the flue gases travel upwards through the vertical tubes in the boiler transferring heat to the water inside the shell. The water feeding can be manual or automatic through an Automatic water level controller as per customers requirements. In case of oil or gas firing, options are available for manual burners or imported fully automatic burners.

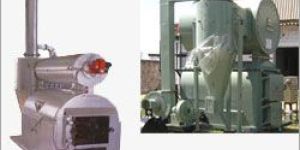

Environmental protection is one of the prime concerns and it has led to the development of various waste management systems. The most advanced and safe way of getting rid from waste and achieving volume reduction is through GEMBOILERS Incinerators.   BIO-MEDICAL WASTE INCINERATOR Overview of Biomedical Waste Management Hospital and other health care establishments on the other hand generate huge quantities of waste including bio-medical waste. Hospital waste is always considered as a potential hazard to human being.Therefore, their safe collection, storage, transportation and disposal at site or in a Treatment facility are absolutely essential. The major identified health hazard is the infection.Give the toxic and extremely infectious nature of the medical waste generated in the process of diagnosis, treatment, surgical interventions, blood transfusions and immunization etc., patients and staff are generally exposed to high risks of infections including the most dreaded diseases like Hepatitis- B, HIV, AIDS etc. Quality combined with proven & reliable technology keeps maintenance to minimum.   Technological breakthrough to build complete system in compact size, no civil work and instant installation at site. Refractory lining suitable to withstand temperature above 1400 C.   Options : Available in Oil Fired, Gas Fired and Electrical design. Available with Highly advanced Air Pollution Control Devices like Bag Filter, Packed scrubber,3 Stage Scrubbing System.   WASTE CATEGORIES Type A:   Trash, a mixture of highly combustible waste such as paper, cardboard, cartons, wood boxes and combustible floor sweepings from commercial and industrial activities. The mixtures contain upto 10% by weight of plastic bags, coated paper, laminated paper, treated corrugated cardboard, oily bags and Plastic & rubber scraps. This type of waste contains 20% moisture, 5% incombustible solids and has a heating value of 4700 kcal. per kg. as fired.Heating value of 4700 kcal. per kg. as fired. Heating value of 4700 kcal. per kg. as fired.  Type B:   Rubbish, a mixture of combustible waste such as paper, cardboard cartons, wood scrap, foliage and combustible floor sweeping from domestic, commercial and industrial activities. The mixture contains upto 20% by weight of restaurant or cafeteria waste,but contains little or no treated papers, plastic or Rubber wastes. This type of waste contains 25% moisture, 10% incombustible Solids and has a heating value of 3600 kcal. per kg as fired. Type C   : Refuse, consisting of an approximately even mixture of rubbish and garbage by weight.This type of waste is common to apartment and residential occupancy, consisting of upto 70% moisture, 7% incombustible solids, and has a heating value of 2350 kcal per kg as fired. Type D:   Garbage, consisting of animal and vegetable wastes from restaurants, cafeterias,hotels, hospitals, markets and like installations. This type of waste contains upto 75% moisture,upto 5% incombustible solids and has a heating value of 1400 kcal per kg as fired. Type E:   Human and animal remains, consisting of carcasses, organs and solid organic wastes from hospital and similar sources, consisting of upto 85% moisture, 5% incombustible solids,and having a heating value of 550 kcal per kg as fired.

Air heaters are the best solution/alternate for all applications wherever Air Heating is done. Reverse FlameTechnology. Insulated casing with LRB Metress/Mineral Wool. Fully automatic ON/OFF Imported Burner. Combustion Chamberfabricated out of SS-304/314 smoke tube/Membrane. Dynamically balanced ventilation blower fan. Dust free pre-wired fully automatic Control panel. Salient Features Space Saver and can easily be installed with exisiting or new system. Compact and Low Installation Cost Maintenance Free Operation Noiseless. No Piping and Expensive Valves and Fitting Low initial cost as compared to T.F. Heater Steam Boiler Low running cost as Compared to TF HeaterSteam Boiler The more economical than oil steam boiler, with the low maintenance cost. Thermal Efficiency of 90% ± 2%. Low Running Cost Compare Diesel to Gas 25% Net.

GEM BOILERs Electric Steam Boiler is made up of stainless steel in one round-shape lot which makes it last life long, and makes high quality steam by the heating of electric heater.   Salient Features Applying a strong powerful electric heater to generate quality steam within 7-8 minutes after switch-on. Easy to install or move at small and narrow space. Environment-oriented boiler with no noise and contamination. Keeping the safety appliances that can perfectly shut off any electric shock or leakage. Easy access for inspection and cleaning Adopting the indirect heating system that lasts the boiler life almost permanently The more economical than oil steam boiler, with the low maintenance cost. The inside of boiler smoking-proofed with 3 layers of ceramic mats that maximizes the heating efficiency

The construction is of a packaged type vertical design multistage shell and tube boiler. The water is in the shell side and the flue gases of combustion travel through the tubes in the shell. This is a rugged design boiler which can withstand a higher degree of hardness in the water. Blowdown valves are provided for removal of TDS in the boiler water.This is a vertical design shell and tube type boiler suitable for various fuels like oil, wood, coal, rice husk, briquettes etc. or a combination of these fuels.The furnace for solid fuels like wood, coal, rice husk etc. is constructed below and the boiler is placed vertically above it. The fuel is burnt on the grate bars provided in the furnace and the flue gases travel upwards through the vertical tubes in the boiler transferring heat to the water inside the shell. The water feeding can be manual or automatic through an Automatic water level controller as per customers requirements. In case of oil or gas firing, options are available for manual burners or imported fully automatic burners.   Salient Features High Operating efficiency. High Combustion efficiency. Qualified attendant NOT required. Large-scale reduction in KVA demand. Easy access for inspection and cleaning. Low system lag and rapid steaming response. Failsafe design, dependable safety instruments. No overheating of tubes, as these are not exposed to flame. Smoke tube design tolerates a higher degree of hardness in water.

Gem Boiler Reverse Flame Steam Boiler (Generator)- Very Compact - Noiseless - Instant Steam Generator - Rigid Reverse Flame Technology The Furnace is made of an air tight helicalcoil of membrane. Double jacketed MS Shell Aluminum Radiator Dust free pre-wired fully automatic controlpanel No corrosion or scale formation Efficiency 76% on GCV Economizer for preheating of water Oil Pipe TISCO TI Coil diameter is 31.8mm/OD Salient Features Steam generation within 2-3 min. Package type Eco Friendly Low Fuel Consumption Safe, maintenance free & automatic operation No Skilled person is required for operatio Thermal Efficiency up to 87% Efficiency 76% on GCV. 60% Benefit firom Diesel/Gas LDO Low Maintenance

we offer coil type water heater. water boils when its vapour pressure equals the atmospheric pressure. when pressurized, water can boil at temperature above 100 c. water is eco friendly and has a specific heat of one, which makes it an excellent medium for industrial heat transfer application helical coil type multi pass, once through, forced circulation principal to use heat transfer fluid without risk of chemical degradation fabricated out of erw boiler tube as per bs-3059 double shell of mild steel construction
