Gew Scientific Tilak Nagar, Delhi

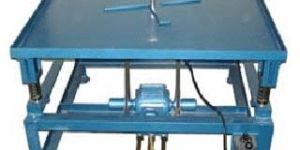

We are engaged in manufacturing Vibrating Table that is used for compacting cylinders and concrete tubes. Our Vibrating Table is designed to carry load up to 140 kg. Made from high grade raw materials, our Vibrating Table is popular in the market for its consistent performance that too without requiring nay maintenance work. Specifications Motor suitable for operation on: 440 volts, 3 phase, 50 cycles, A. C. supply.Table top size: 75cm x 75cm and 100cm x 100cm Salient Features Rugged constructionDurableResistant to corrosionHigh strength ApplicationsCeramicsAutomobile industryChemical industryPharmaceutical industry

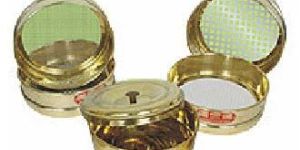

We manufacture Test Sieves as per the prevailing manufacturing standards. Our Test Sieves are made up of Brass frame and G.I. frame of dia. 200mm, 300mm & 450mm. We also manufacture Brass Sieves in 200 cm diameter with brass frame turned joint less. The Sieve cloth used is standard SS or phosphor bronze wire mesh. The lid and receiver is made up of brass for 20 cm or 8� dia sieves. Manufacturing standardsISSBSSASTMDIN etc. Used for FilteringSandSoilCement etc.

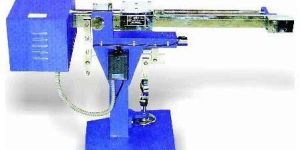

We are offering tensile strength tester-electrically operated. Our tensile strength tester (electrically operated) which is an abrasion free, accurate, and is loaded with double lever system. Tensile strength tester (electrically operated) offered by us is simple to operate as clients just have to fix the briquette in the jaws, and the machine will be switched on. The sliding weight slides over the calibrated lever thus applying tension to the specimen. Further, it also facilitate safe operation as a micro switch fitted instantly stops the machine on failure of the briquette and on failure the tensile load which is accurately 0.5 kg. product detailssuitable for operation on 230 v50 cyclessingle phasea.c. Supplycomplete with one brass briquette mould and one base plate

We manufacture and supply a wide range of Tensile Strength Tester machine which is used to determine the tensile strength and elongation of various raw materials. Our range of Tensile Strength Tester is widely accepted by most of the industries for its accurate results and higher efficiency. Clients can avail from us our range of Tensile Strength Tester at highly affordable prices. Features Precision engineered Very durable High performance Robust construction Easy to install Applications Rubber Leather Fabric plastics Belt wires Rods Ropes Yarns belts etc.

We bring forth Standard Penetrometer which is used to determine the quality of bitumen. Standard Penetrometer detects the consistency of bitumen for the purpose of grading. The Standard Penetrometer available with us is designed with a vertical pillar mounted on a base provided with leveling screws. FeaturesProvided with head and plunger rod and a con (needle), which slides on a pillar and can be clamped at any desired heightA rack, pinion and pointer assemble, provides fine adjustment of needle or cone tip to sampleIncludes a clutch mechanismSimple and accurate operationThe dial is graduated in 400 1/10 and the millimeter subdivisions and the needle pointer against figures makes easy reading ApplicationsCeramic industryChemical industryConstruction industryDefenseIrrigation industryMining industryPower (hydro/ thermal) Industries.

Our range of Soil Augers is used to collect distributed soil samples at reasonal depths for the purpose of laboratory tests. We offer Soil Auger in various specifications as per the requirements of the clients. Our Soil Auger is fabricated using high grade material and latest machinery to provide efficiency, optimum performance and durability. AvailabilityBlade Type (post hole type)Helical Type (Screw type) Raw Materials UsedAuger headOne meter long rodTee piece and hangle

We offer superior quality Road Core Drilling Machine which is a designed for drilling test cores from holes in various applications. Our range of Road Core Drilling Machine is designed with 5 HP diesel engines with pulley mechanism which works with minimum vibration, aids in drilling of building and roads. The Road Core Drilling Machine is equipped with two vertical support columns, which carry the drill head/engine assembly with the help of screwed spindle. FeaturesPrecision engineeredAccurate drill pressureMinimum core chippingLong functional lifeScrewed spindleBit Diameter Varying from 25mm to 150mmSupplied on a rigid metal baseProvided with leveling facilitySuitable for vertically down for coring application ApplicationsRoadsAirportRunwaysBridges etc.

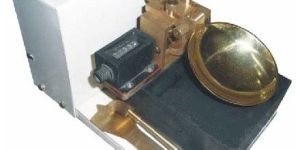

We manufacture and Supply Liquid Limit Device that is ideal for casagrande method for soil mechanics. The Liquid Limit Device is suitable for generating data of soil which is useful to correlate mechanical properties of the soil. We provide Liquid Limit Device to the wholesalers, suppliers, and retailers at competitive prices. Specifications Liquid Limit Device (Motorized) : ZI 3006 IS 2720 (PART V), BS 1377-2, ASTM D 4318Motor suitable for operation on : 230 V A.C., Single Phase, 50 Cycles. Spare Parts Casagrande grooving toolASTM grooving toolHeight block of 1cm highZI 3005 Liquid Limit Device (With Counter) : Similar as ZI 3004 but fitted with a counter to register the number of blows Ideal For Determining CompressibilityLower shear strength

We offer Laboratory Concrete Mixer is a motorized machine of laboratory type. Laboratory Concrete Mixer is widely used by construction companies for mixing concrete. The Laboratory Concrete Mixer is electrically operated and is specifically designed to eliminate the tiresome job of mixing concrete manually. Our Laboratory Concrete Mixer effectively creates a uniform mix of concrete. The Laboratory Concrete Mixers available with us are suitable for operation on 220 / 230 volts A.C. single phase. Product DetailsThe counter balanced drum is easy to tilt and has a volume of 1.1/2 to 2 cu.ftThe total drum volume is however 3 cu.ftMounted on a well-built stand with rubber tyresThe drum is attached for end dischargeEquipped with end towing pole FeaturesPerfect mixing abilityEasy operationSturdy constructionCorrosion resistanceLow maintenance costsDurableOptimum performance

We deal in offering Ductility Testing Machine which is used to determine the ductility of asphalt and bitumen. Ductility is basically known as distance (cms.) to which a standard lump of bitumen can be stretched before the thread breaks. Our Ductility Testing Machine works when one half of the lump moulds is placed on a fixed plate in the water bath, and the other half of the lump mould is placed to a carrier which slips when the threaded shaft is rotated with a clutch and are housed in a cabinet fixed above the other end of the bath. A pointer that is fixed to the carrier moves over a scale ranging from 0-110 cm x 1 mm fixed on the bath with �0� (Zero) of the scale towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cm/min and 1 cm/min. selected by a clutch. The insulated Water bath which is inside the machine is made up of aluminium and Stainless Steel, is provided with a drain. Also, a heater with thermostatic control is fixed inside the water bath. Control switches for motor pump heater and indicator lamps are fixed at a convenient place on the water bath. Consists ofWater bathThermostatic heaterCirculating pumpThreaded shaft Operates on230V A.C.Supply single phase

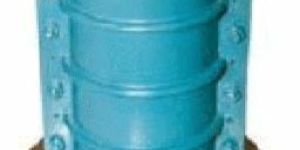

We provide clients with Cylindrical Mould which is used to test concrete cylinders for compressive strength tests. Cylindrical Mould, manufactured by us is capable of withstanding extreme climatic situations and can easily resist distortion. Also, our range of Cylindrical Mould can easily sustain under rugged condition. FeaturesCan withstand adverse conditionExtremely durableHigh performanceGreater efficiencyLow maintenance Product DetailsThe mean internal diameter is within 0.2mm and height is within 1mmMould is divided vertically into two partsThe base plate and top plate are machined flat to 0.03mmThe ends are machined to 0.05Mould, Cylinder, Cast iron, 15cm dia x 30cm heightMould, Cylinder, Cast iron, 10cm dia x 20cm heightMould, Cylinder, Cast iron, 30cm dia x 60cm height

We manufacture a wide assortment of Cube Mould, designed with the help of our cutting edge technology and high grade raw material. Our team of experts pays supreme care in the production process of our range of Cube Mould to ensure that it is in compliance with industrial quality standards. Our array of Cube mould is accredited for superior performance and longer functionality. Features Easy to operate Resistant to wear and tear Low maintenance Extremely durable Used to Examine The Strength Of Low heat Portland cement Portland cement High alumina cements Portland blast furnace cement Some classes of lime etc.

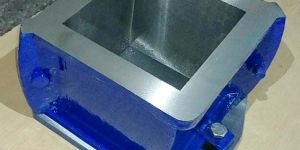

While bringing diversified range of products such as cube mould two part, we are fulfilling each individual demand of the clients. The offered product is known for its high efficiency, strength, durability and quality. Apart from this, the skilled professionals develop this product in adherence with prevailing industrial standards. Further, our clients can avail this product at competitive market price. Features: precisely engineered high strength long life

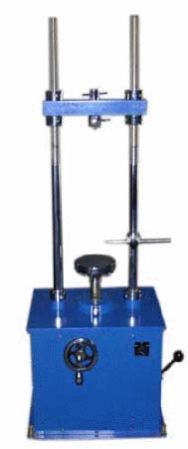

Our CBR Test Machine is ideal for testing the soil material and controlling of sub grades. CBR Test Machine effectively determines the relative bearing ratio and extension features under known surcharge weights of base, sub-base and subgrade soils for the construction purposes. CBR Test Machine provided by us can test all types of soils. The working of CBR Test Machine includes loading of soil with a circular piston, 50 mm dia face and maintaining a penetration rate of1.25 mm/min. after this, load is noted and the results of test on natural or recompacted soils, in soaked and unsoaked conditions, can be compared with standard test results. Test Can Be Conducted OnSandGravelWashed stone etc. ApplicationsRoadsPavementsRunways

We manufacture high quality Bitumen Extractor which is used for determining the quantity of bitumen in hot mixed paving mixtures and pavement samples. We provide Bitumen Extractor with bowl, which is attached directly to a motor through bendable connection. Further, we also provide a variac is that is preset to give 3500 R.P.M. to the bowl. Suitable for operation on220 VSingle phase50 Hz supply ApplicationsHighway departmentsContractorsEngineersTesting laboratoriesSamplingPenetro-metersRoad surfacing testing etc.

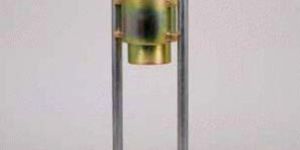

Aggregate Impact Tester that we offer is used by various industries for testing the aggregate impact value. The Aggregate Impact Tester is equipped with a circular base with two vertical guides. Aggregate Impact Tester machine which is available with us is fabricated using high grade raw material and advance technology. FeaturesHammer with a locking arrangementHammer is removable for emptying as it falls freely to the baseFalling height of hammer is adjusted through 380 ± 5mmSupplied complete with metal measures 75mm dia x 50mm high (for specimen preparation) and tamping rod 230mm long x 10mm diaHigh performanceWeight of hammer : 13.75 ±0.25 kg ApplicationsCeramic industryCalibration laboratoriesTest house

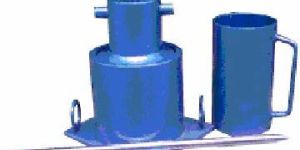

We manufacture Aggregate Crushing Value Apparatus as per IS: 2386(part4) which is made of mild steel. The Aggregate Crushing Value Apparatus offered by us is used to measure resistance of an aggregate to crushing. Our range of Aggregate Crushing Value Apparatus is extensively used in many industries for diverse application. Further, clients can avail from us our range of Aggregate Crushing Value Apparatus at industrial leading prices. FeaturesDurableLong functional lifeEasy to installSmooth operationRobust construction Product DetailsPlunger, 148±0.5 mm dia x 100 to 115 mm heightMetal measure, 110 ± 0.5 mm ID x 180±0.5 mm heightCylindrical Cell, 150 ± 0.5 mm ID x 130 to 140 mm heightTamping rod, 16 mm dia x 450 to 600 mm lengthBase Plate, 200 to 230 mm square x 6 mm thickness
