Gravity Die Casting Machine Dealers in Delhi

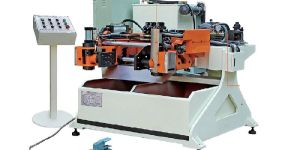

We are recognized as a successful name of Gravity Die Casting Machine for Brass Alloys. It has got a head and a shank integral with the head, the shank being formed with a tip and having an axis, and the head having a circumferential edge defining a complete circle; characterized in that the center of the head is radially offset from the axis of the shank.

• Working Voltage: Ac 380V
• Equipment Power: 7.5 KW
• Working oil pressure: 50-70bar
• Max mold weight: 125Kg
• Max rotation diameter of the mold: Ø 450mm
• Clamping Stroke: 270mm
• Max interval between fixed boards of the mold: 430mm
• Hydraulic Power: 5.5 (7.5HP) Kw
• Clamping Working Pressure: 8900N
• Mold Opening Working Pressure: 11500N
• Angle range of front casting: 0-90o
• Angle range of side casting: 30o - 80o
• Volume of hydraulic oil tank: 110L
• Hydraulic oil brand: HM46# or HM68# anti-wear, anti-foam and anti-rust petroleum base hydraulic oil
• Temperature range for the use of hydraulic oil: 5oC - 65oC
• Outline dimension of the machine: 1940 x 1750 x 1650 mm
• Total weight of the machine: 2000kg

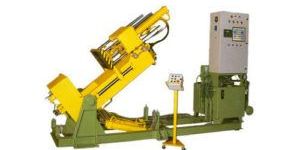

Tiltable gravity die casting : This process is used for casting low melting point material such as aluminium, copper and magnesium. By pouring the metal in tilted position of the die, the feed rate is reduced. This decreases turbulance and foaming of liquid metal. Tilting helps in smooth flow of metal in the die, thus oxidation is reduced considerably. Using sand cores complex geometries can be casted. The resulting cast has high surface finsih and close tolerance.   Features: Auto/manual operation Die temperature interface Proportional Tilting Electrical enclose panel   Optional: Manual  swing in casting catcher
