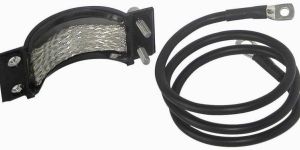

Grounding Kit Dealers in Delhi

• Application: Lightning Protection Facilities
• Material: Earthing Kit
• Material: Copper, Galvanized Iron (gi), Zinc
• Length: 1000-3000
• Length (m): 1-3
• Diameter (mm): 17 Mm- 80 Mm

To divert transient currents from lightning of the transmission line to an earth grounding system and to prevent damage of telecom tower and equipment, A grounding kit is used. grounding kits are designed by Shriram Telelink to withstand all possible lightning strikes for certainty of continued operation. The non-braided, solid copper construction of grounding kits eliminates corrosion caused by moisture retention. Accessories supplied with Grounding Kit : 1. PVC Tape 50mm wide, 10 mtr Length (Make Wonder Achem ) 2. Butyle Rubber Tape 50 mm wide, 1000mm Length. 3. Copper Lug and SS Bolt M6X40mm along with Nut and plain Washer Shriram Telelink has also Developed a new Perfect Ground kit that offers greater installation ease than standard grounding kits. The new grounding kits are factory assembled into one components and feature a pre-formed, clip-on ground strap for easy snap-on installation. A standard weatherproofing kit (tape) and a weatherproofing boot is supplied with this Ground version.

• Features: Best in class,Smooth edges and finish,Light weighted

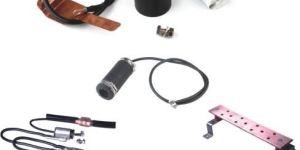

We provide indoor & outdoor grounding kits, bars with different design that applied to various GSM/CDMA telecom tower engineering We manufacture all kinds of grounding kits for 7/8”, 1/2”, 5/4. coaxial cable, bars and other accessories for lightning protection of telecom tower transmission line system. Application : Protection Transmission Line System Features : Quick and easy installation Grounding cable (16 sq mm) Corrosion Resistant

This product is used for mobile network and telecommunication equipment. Grounding kit is a coaxial cable accessory, protecting the coaxial cable system from the damaging effects of lightning, by offering a quick Return path to ground. It is recommended to provide Grounding kit on the RF feeder cable at the top and bottom of the Antenna tower and at the entrance of the transmitter / Receiver. Features Quick and easy installation No loose part No damage to feeder cable Low Contact Resistance (

After Preparation of cable, the Cable outer conductor/ Jointing Sleeve is tighten and blocked on 360 degree between the cone of the connector body and the flexible rear clamp, resulting in high grade mechanical retention and a perfect electrical continuity and complete shielding. All inner contacts are captivated, thus avoiding any risk of damage during coupling of male to female connectors.   We recommend three Grounding Kits per feeder run. One kit is required at the top, one at the bottom of the run, (plus one at 50 meters interval wherever applicable) and one at entrance to the equipment shelter.   Grounding Kit that have been specially tailored to each cable size can be installed very easily and rapidly, once the jacket is stripped at the required dimensions, one kit can be installed in less than three minutes. Kits are provided all hardware necessary to connect the ground wire to the tower ground bar.
