HORIZON ENTERPRISE Paschim Vihar, Delhi

A light Vice mounted on Wooden Handle, Jaws are Tempered Heavey Duty 1.25" wide with an opening of 1", Total length 6.25 inch.

Wiggler or Center Finder     Product Description :   The attachments can be snapped onto the chuck without removing the collet nut and are clamped by a ball swivel joint which permits adjustment to an angular position   With needle point shark, working centers can be accurately located. Spring tension on the ball of the point permits guiding the point to true concentricity bringing perfect alignment between the work and machine spindle   Wiggler with Ball Contact is useful in locating work by first bringing the ball contact against the work and then indexing it to the desired position relative to the spindle   Wiggler with Offset Indicator holder is useful for checking run out or concentricity and in checking straightness or alignment of flat surfaces   Description Center Finder complete with 4 attachments

Detail:   Manufactured from high grade steel, these toolholders are accurately machined and ground.   Description • Toolbits are held parallel and straight to the shank giving maximum support to the cutting edge. Set screws are made from heat treated alloy steel with hardened points for increased resistance to wear. • These are available with straight shank, right handed or left handed offset shank. • Each holder comes complete with an allen key but without toolbit.

Detail:   This range of tap wrenches are ideal for holding taps, reamers, screw extractors and other such small hand turned tools. All wrenches have a sliding T handle frictionally held, that allows these tap wrenches to be used even in confined spaces.   Description • These are available in two types: 1. Regular T Handle Type • Self-centering hardened steel jaws provide a positive grip on taps, reamers and other such small tools. 2. Ratchet Type • These tap wrenches have self centering hardened steel jaws and knurled chuck sleeve, which provide positive grip on taps, reamers and other such small tools. The ratchet can be set left or right, or direct engagement in neutral position. This feature allows them to be used in confined areas with ease.

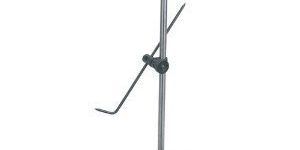

A basis tool for machinists and toolmakers, the Universal Surface Gauge is used for accurately scribing lines, transferring measurements or probing surfaces in inspection work.   Description Design incorporates: 1. A fully hardened and ground base which serves as an accurate reference surface. 2. A machined Vee groove in the base allows the gauge to be used conveniently on curved surfaces. 3. A Vee groove at the front end allows the spindle to adjust to any angle above or below the base allowing it to be used as a height gauge and also as a depth gauge. 4. Two retractable pins allow the gauge to be located against the edge of a surface plate or T-slot for linear work. 5. Grooves on the side of the base allow for comfortable grip. 6. Well tapered scriber for better sighting while working. The scriber tip is hardened to 55-60 HRC.

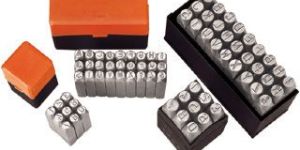

  Steel Stamps     Product Description : • Made from high quality tested carbon steel. • Special material and double induction hardening give very high quality of stamping. • Head is tempered to prevent chipping while hammering.

Steel scriber Scribers are finely tapered permitting better sighting during work. A comprehensive line of steel and aluminium body scribers for machinist's, engravers, mechanic's and craftsmen.Basic tool for scribing and marking, Scribers can be used in metal, glass, plastics and ceramics.

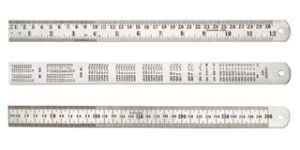

Details:   Made from stainless steel, these rules have a polished finish with permanently engraved clear to read graduations.   Description   These are available in two types: 1. Imperial & Metric Combined Rules 2. Metric Rules Imperial & Metric combined rules: These rules are graduated in metric dimensions on one edge and imperial on the other.Imperial dimensions are in 1/16th, 1/32nd & 1/64 ths. Metric dimensions are in 0.5mm & mm. Reverse side of the rule has a permanently engraved metric to imperial conversion table3. All reamers marked with sizes Metric rules: Graduated in metric dimensions 0.5mm & mm on both edges

Product Description : Basic tool for scribing and marking, Scribers can be used in metal, glass, plastics and ceramics. Scribers are finely tapered permitting better sighting during work. A comprehensive line of steel and aluminium body scribers for machinist's, engravers, mechanic's and craftsmen. Categories:     1. ALUMINIUM BODY SCRIBERS a) Light weight double ended scriber with one straight point and the other bent at 90° making it convenient to use in confined spaces. b) Three Point Scribers. Finest quality scriber with aluminium body knurled for comfortable grip. Comes with 3 interchangeable threaded steel points: short straight, short bent & long bent which thread into the body. c) Two Point Scriber. With aluminum knurled body, this scriber consist of short straight and short 90° bent steel points which thread into the knurled body. 2. STEEL BODY SCRIBERS a) Steel body with 3 interchangeable threaded points, short straight, short bent and long bent. Very handy ad different combinations can be used for different applications. b) Single ended light duty. c) Tungsten carbide tip for marking on hard materials. Permanent magnet on the other end for picking up small metal parts. d) Scriber with pocket clip. Scriber point is held by a knurled chuck and can be reversed when not in use preventing tearing of clothing hen clipped on a pocket. e) Single ended heavy duty. f) Double ended. Combining a needle point point with a chisel end. g) Double ended with one straight point and the other point bent at 90° making it ideal for use in confined spaces. h) Double ended heavy duty with one straight point and the other bent at 90°. Ideal for heavy marking jobs in confined spaces, grooves etc. 3. NEW BODY SCRIBERS a) Pocket Scribers with replaceable hardened and ground tool steel points. Point reverses into the knurled body for safety. Hex head cap prevents the scriber from rolling down. Used for marking & scribing on steel, copper, brass and aluminium. b) Replaceable Needle Point Scriber with 4 extra needle points. Plated steel body with knurled handle and hex cap that prevents the scriber from rolling down. Spare needle points are stored in the handle under the cap. Used for marking & scribing on metal, glass, plastics & ceramics. c) Single Point Scriber. Knurled steel body with hardened and tempered point.

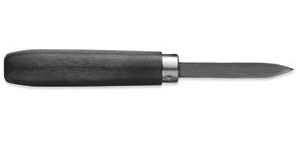

Product Description : It is used to scrape extra material and is widely used by jwellers and watchmakers.

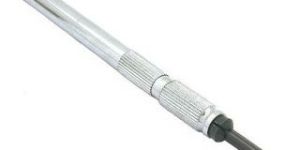

Product Description : Scrapers are used for smoothing, cleaning, and deburring plastics and metals. With their hardwood handles they prepare the surface for soldering, removing excess solder and opening bezels. Can be resharpened on a bench stone.   Description: Total length 7" with a 2-1/2" blade length.

      Product Description : Scraper Set for Marking and Surface Preparation. 3-piece set scribes metal and plastic, scrapes off paint and stuck-on gaskets, hooks and unhooks springs in difficult locations and more. Description: Made of steel with needle-sharp points, knurled gripping handles and black oxide finish. Each tool is 7 inches long.

Product Description :   Rotary type numerator is specially designed to mark serial numbers, part numbers or code numbers on steel, alumunium; brass etc.This rotary type numerator is ideally suited for steel producers. Some key features of this rotary type numerator are as follows: 1. Perfect -time saver for repeat number by hand stamping 2. Serial numbers, part numbers or code numbers can be marked compact in size 3. marking wheels` can be rotated to any designed positions, then locked positively by a locking pin 4. Individual release 5. No loose parts 6. Wheels made from special tool steel 7. All part treated to remove scale and plated to resist rust

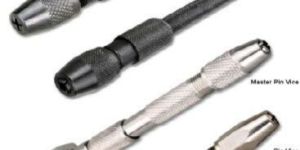

Product Description : Pin vices are used for holding small taps, drills, reamers, scribers, wire, small files etc. These are available in following type:   1. Pin Vices - Regular   The handles have a hole extending through the entire length which permit holding wires of any length or diameter upto the full size of the tool. These are available as individuals or as a set of 4.   2. Master Pin Vice   It has a single collet made of hardened steel, suitable for holding small drills, miniature tools etc. The opposite end has a large free wheeling swivel head.   3. Pin Vice - Double Ended   This double ended pin vice has reversible collets at each end.   4. Adjustable Pin Vice   This pin vice is especially useful for holding small drills, burrs, wires, files, reamers etc.

Product Description : The Pin Chuck is a very useful reducing chuck used for holding drills too small to be held by a regular chuck. It is gripped in the larger chuck already on the machine by means of the back shank. Supplied with three interchangeable collets for holding small drills in varying sizes

The Pin Chuck is a very useful reducing chuck used for holding drills too small to be held by a regular chuck. It is gripped in the larger chuck already on the machine by means of the back shank. Supplied with three interchangeable collets for holding small drills in varying sizes

          QUALITY • Lokriya. • Ranglepak. • Harris Single. • Harris Double.

Size : 13 mm to 200 mm.

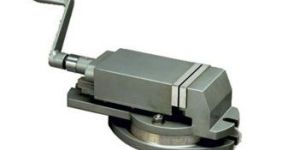

Details:   The Milling Machine Vice is one of the most popular vices used in workshops, machine shops and shop floor. Apart from use in milling operations, it also finds application in jig boring, grinding and shaping jobs.   Description 1. Manufactured from close grained hi-tensile seasoned cast iron, the vice body has a premium polychrommatic finish which is scratch and rust proof 2. Vice jaws made from fully hardened and ground tool steel allow the workpiece to be held dead square without use of any packing. This not only improves efficiency and life of jaws but also helps reduce strain on vice body 3. Usage of high tensile grade 10.8 fasteners provides greater strength and rigidity. The 360° swivel base allows the vice to be set at any angle along the vertical axis. Vice base has a milled slot which helps in accurate location of the vice on the machine table using rectangular locating nuts 4. "Hold Down" slots allow for secure clamping of the vice on the machine table

Designed for versatility and accuracy, these Vee Blocks are ideal for holding round or irregular shapes for scribing, grinding, measuring, machining and testing applications.   Description 1. These can be used either ways, up or standing on end, All Vee's and faces can be energised or de energised simultaneously by turning the rotary action control knob. This feature enables the Vee Block to hold both itself and the work on any flat ferrous surface including a permanent magnetic chuck (without energising the chuck). 2. Brass knob ensures no interference with the magnetic field, unlike the conventionally used steel knobs. 3. Also available with hardened Vee's: 55-60 HRC for increased wear resistance 4. For applications requiring two Vee blocks matched and numbered pairs are available

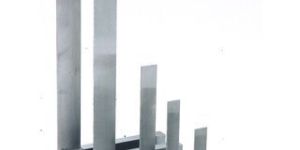

An excellent range of general purpose steel squares Whilst ideal for everyday workshop use, these are also suitable for woodworking applications   Description 1. Both the blade and stock are accurately ground which ensures straightness and parallelism 2. This range of squares comes in handy for setting up and checking machinery, checking Carpenter's squares or using as a trysquare when marking joints or testing faces & edges

Product Description : It finds application on drill presses, milling machines, planers etc. any place where leveling is necessary Lifting capacity is approximately 1000 lbs (454 kgs)

Capacity : Inch

Detail: Manufactured from high tensile, malleable cast iron, with an attractive grey hammertone finish, these are very useful for holding workpieces securely for smooth and even turning. Description • Used in conjunction with a catch-plate, these act as a driving device while turning material between centres. • A 'V' groove in the body helps clamping of round jobs.
